NMC-WOLLARD 140 - Product Outline Drawing

NMC-WOLLARD 2021Truax Blvd., Eau Claire, WI 54703, Phone (715) 835-3151, Fax (715) 835-6625
M140 Tow Tractor Manual No. 46054
PAGE 5-92
CHAPTER 5 MANUFACTURER’S INFORMATION
v
NexSysLink
®
2" Stand-Alone CAN Display Operation Manual  SAE J1939
© 2011 Beede Electrical Instrument Co., Inc.

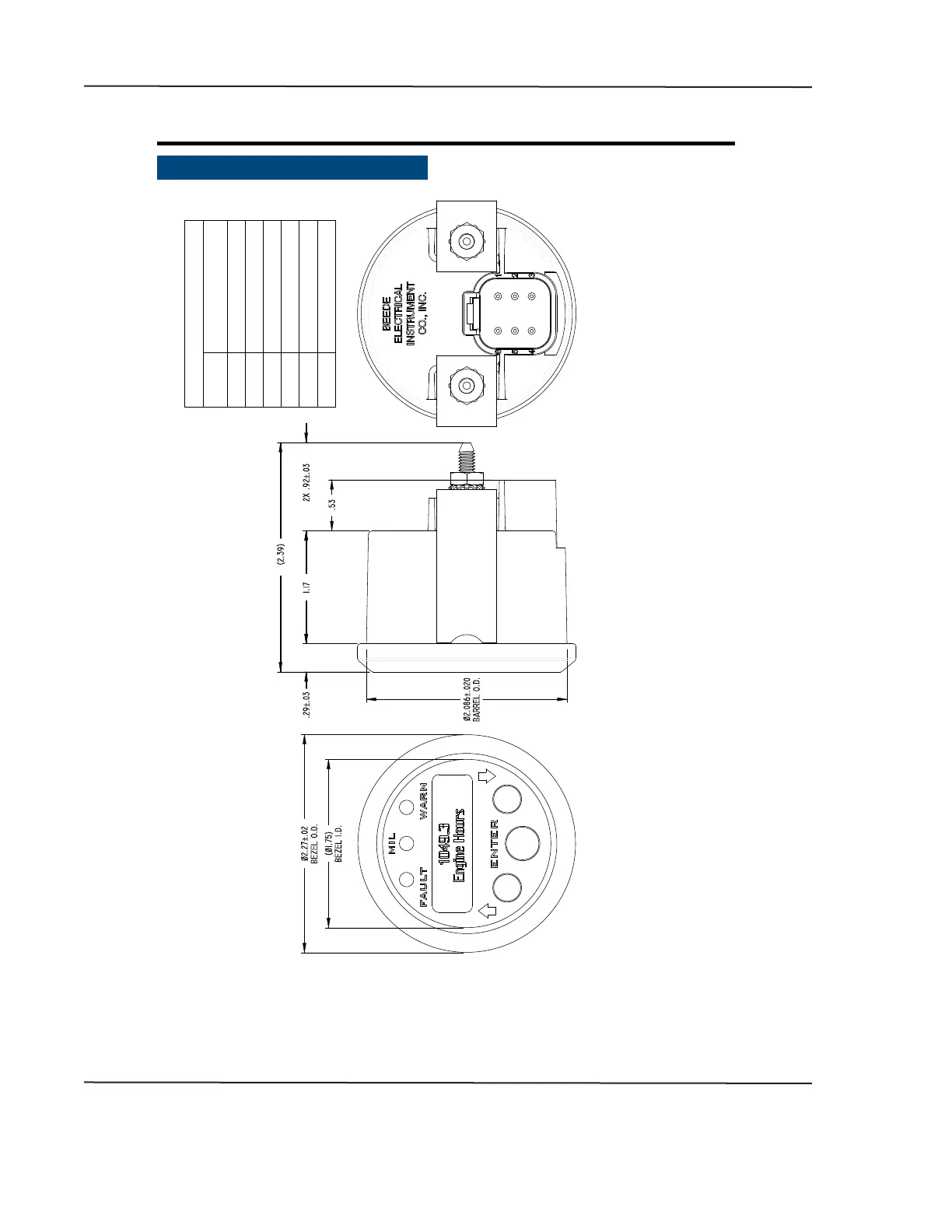

• Product Outline Drawing
Mounting hole size: Ø2.125±.015” (Ø53.98±0.38mm) Mounting hardware torque:
6 lb-in
(0.68 N-m) max. Refer to the appropriate Beede installation instruction sheet for complete installation requirements. Dimensions shown are in inches.



 






6 Pin Connector Wiring Table
Connection
Name
Battery +
Pin
Number
1
Ground2
Switched Output3
Lamp (B+) or Serial Data4
CAN-H5
CAN-L6
