• 1 or 2 Parameter Display
Users can set whether 1 or 2 CAN parameters appear on the LCD screen�

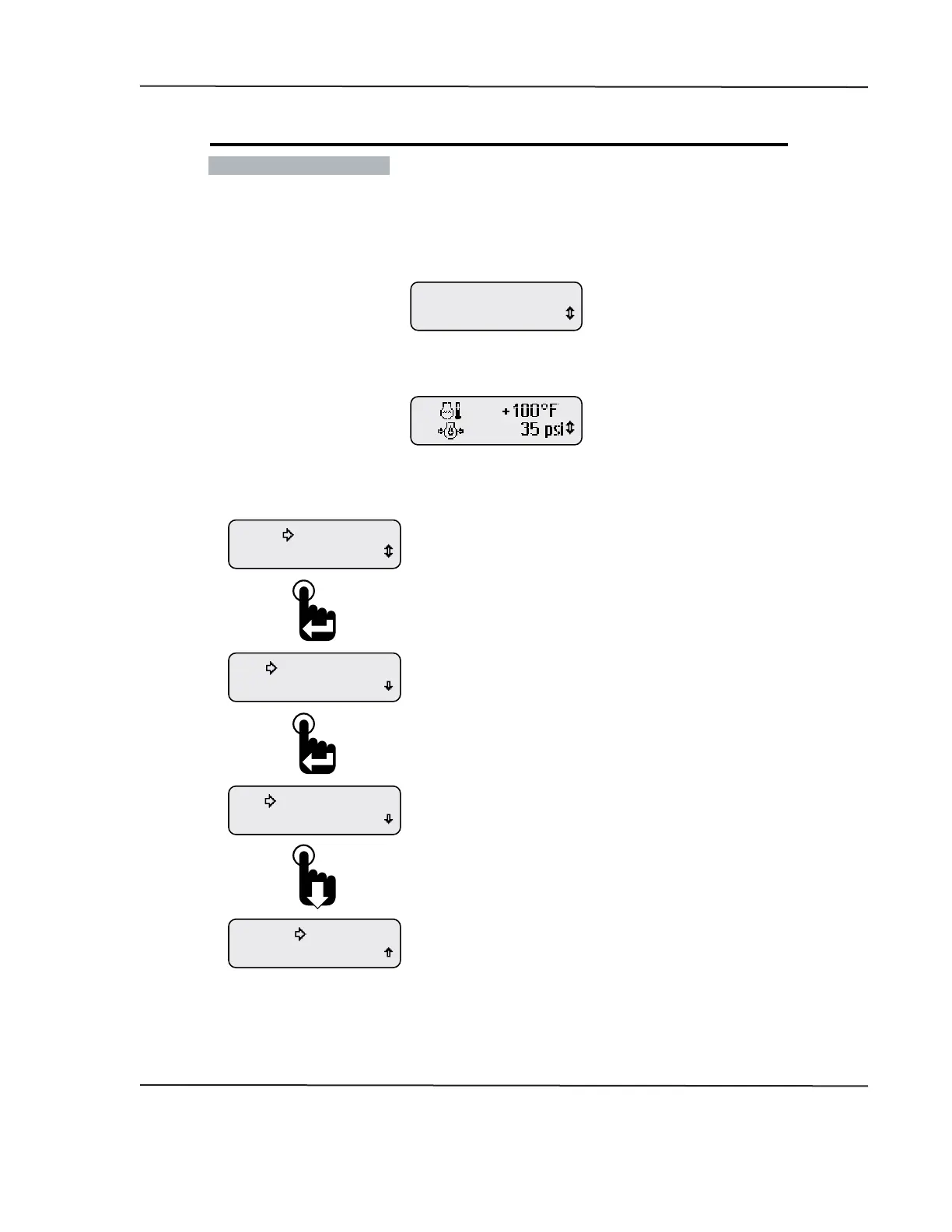

Figure 1-26: 1 and 2 CAN Parameter Display Formats
Eng Oil Pressure
35 PSI
1- Parameter Display Format
2- Parameter Display Format
Figure 1-27: Setting 1 or 2 Parameter Display Lines
Exit
Contrast
2-Parameter
Contrast
1-Parameter
Trip Mode
Display
Scroll down to the Exit option and press the Enter switch or
wait 30 seconds for last displayed CAN parameter to appear.
Pressing the Enter switch toggles the paramater display mode
to two 2-Parameter.
When the Display Menu opens, the selection arrow appears
next to the current parameter display mode setting,
i.e., 1-Parameter or 2-Parameter.
Pressing the Enter switch toggles between the two settings.
The setting is automatically saved once changed.
From the Setup Menu place the selection arrow cursor next to
the Display option, Main Menu-Setup-Display, then press
the Enter switch to view the Display Menu functions.
