• Alarm Output
The alarm output setting controls whether the alarm output pin is turned o when an alarm condition
occurs and the Enter switch is pressed� This function is also dependant upon the Mute setting for the
audible output�
If Mute is set to Temporary and Alarm Output is set to Audible, the internal and external audible devices
will temporarily turn o� If Mute is set to Permanent and the Alarm Output is set to Audible, the internal
and external audible devices will remain o until a new alarm condition occurs�
If Alarm Output is set to light, the output pin remains on regardless of the current mute setting when
the Enter switch is pressed�

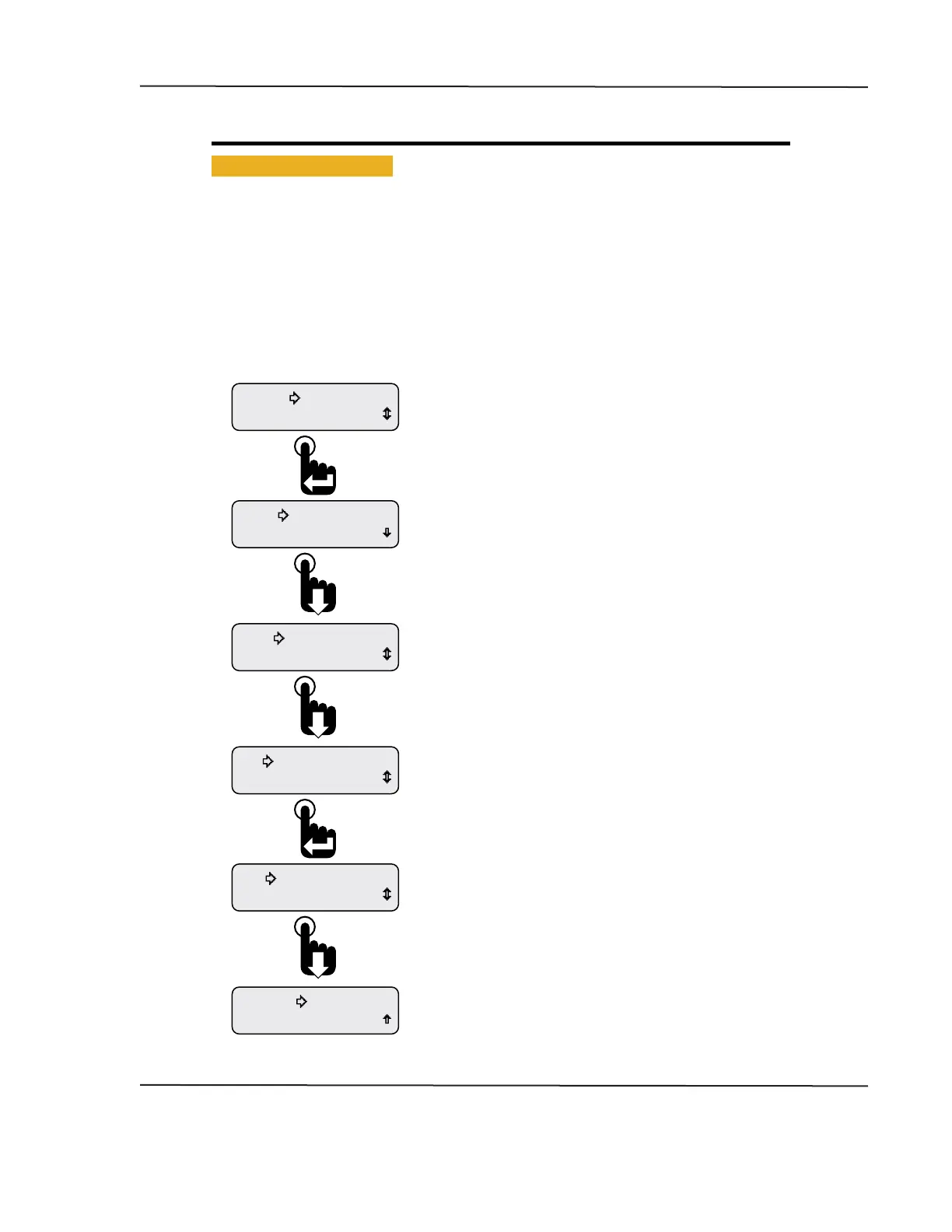

Figure 1-32: Setting Alarm Output Pin Status
Exit
Return
Output-Light
Return
Output-Audio
Alarm Output
Trip-Hours
Units
Backlight
Informaon
Setup
Scroll down to the Exit option and press the Enter switch or
wait 30 seconds for last displayed CAN parameter to appear.
Pressing the Enter switch toggled the Alarm Output setting to
the light option.
The Output-Light option does not disable output pin 3 when the
Enter switch is pressed to mute an alarm notication.
When the selection arrow cursor is placed next to the
Alarm Output option, the name changes to the current alarm
output mode, i.e., Output-Audio or Output-Light.
The Audio option disables output pin 3 when the Enter switch
is pressed to mute an alarm notication.
Pressing the Enter switch toggles between the two settings.
The setting is automatically saved once changed.
Screen shows Alarm Output function prior to placing the
selection arrow cursor next to the function.
Continue to press the Down switch to place the selection
arrow cursor next to the Alarm Output function.
The Setup Menu appears with the selection arrow cursor
next to the Backlight option.
Scroll down to place the selection arrow cursor next to the
Alarm Output option.
From the Main Menu, scroll to place the selection arrow cursor
next to the Setup option.
Press the Enter switch to view the Setup Menu functions.
