• Adding an Alarm or Alarms
The Edit Alarms function is used to add CAN parameters for alarm notication�
Users may set up to 15 parameters for alarm notication�
The Edit Alarms menu screens dier if no alarms are set as compared to when previously congured
alarms exist� If no previously congured alarms exist, the Add Alarm menu option appears after
selecting Edit Alarms� If previously congured alarms exist, the congured alarms appear before the
Add Alarm menu option� To add an additional alarm when previously alarms exist, users must scroll
down thru all the previously congured alarms before reaching the Add Alarm menu option�

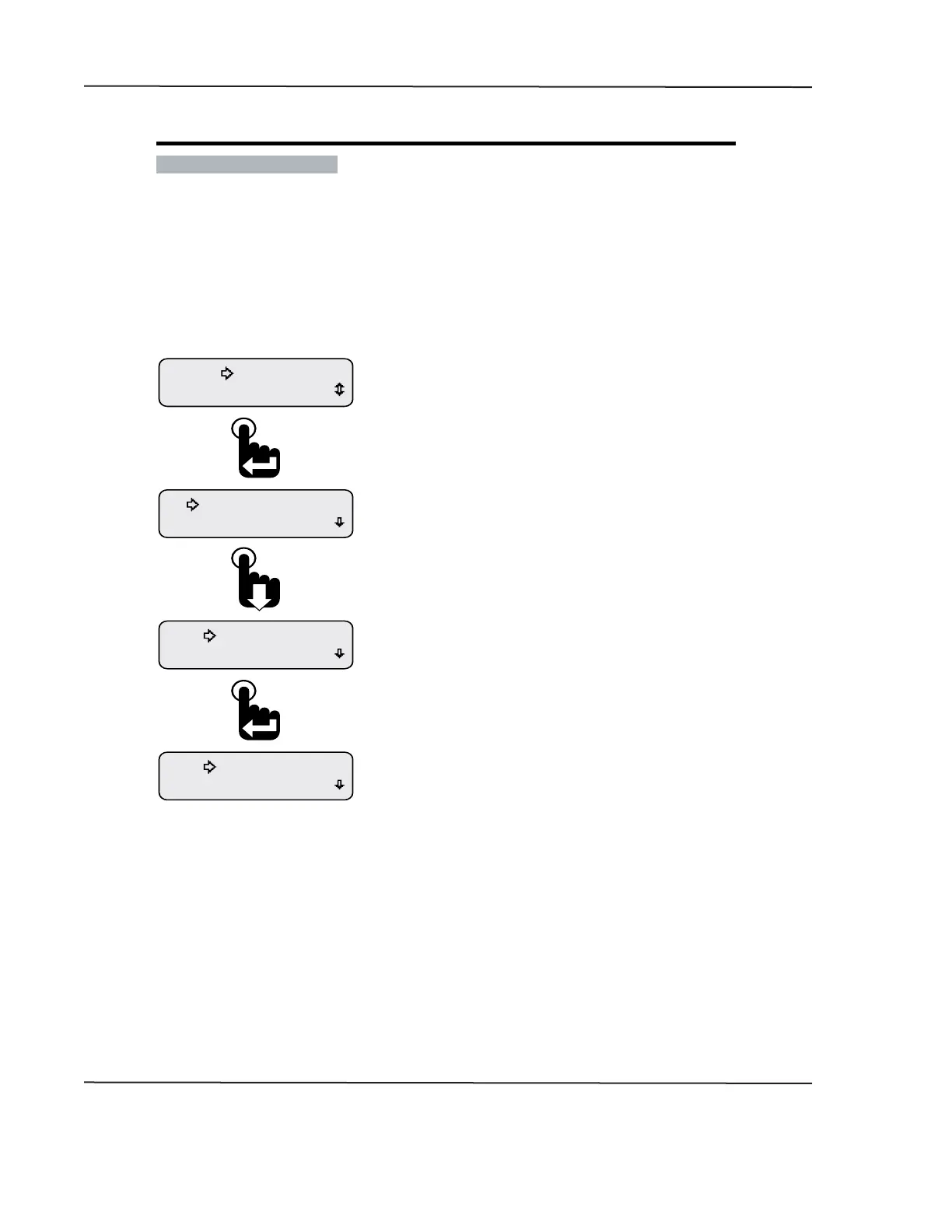

Figure 1-15: Menu Prompt Sequence with No Congured Alarms
Return
Add Alarm
Return
Edit Alarms
View Alarms
Alarms-Enabled
Mute Audio Alarm
Alarms
When no alarms exist, selecting Edit Alarms returns two
menu options, Add Alarm and Return.
Press the Enter switch to begin adding a CAN parameter
for alarm notication or select Return to bring back
the Edit Alarms menu option.
With the selection arrow cursor next to the Edit Alarms
option, press the Enter switch to begin editing alarms.
The Alarms Menu appears with the selection arrow
cursor next to the Alarms-Enabled or Disabled option.
Scroll down to place selection arrow cursor next to the
Edit Alarms option.
From the Main Menu, scroll to place the selection
arrow cursor next to the Alarms option.
Press the Enter switch to open Alarms Menu.
