• Faults Stored
The instrument will display all DM2 (Diagnostic Mode) faults stored by the ECU� DM2 faults are
previously active diagnostic trouble codes�

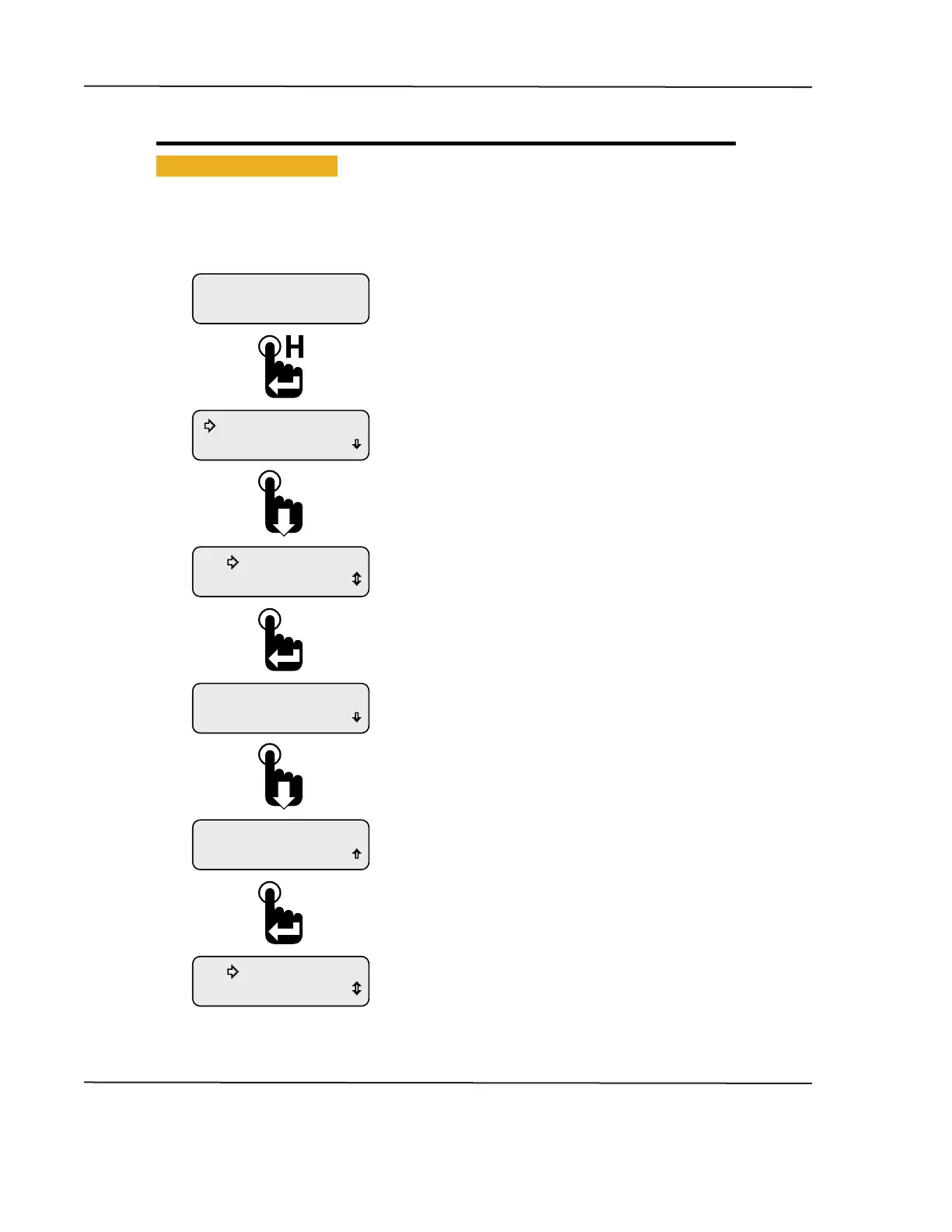

Figure 1-9: Faults Stored Information Screens
Alarms
Faults Stored
Eng Oil Pressure
DM2 Fault 1 of 1
SPN 100 FMI 3
DM2 Fault 1 of 1
Alarms
Faults Stored
Faults Active
Maintenance Hours
Engine Hours
1049.3
Pressing the Enter switch with any of the stored faults
detail screens visible returns the selection arrow
cursor next to the Faults Stored option within the
Main Menu.
Scrolling down shows the fault name instead of the
SPN number if the parameter is implemented in the
instruments rmware.
If more than one stored fault is active, scroll down
to see the subsequent stored fault details.
The fault screen appears listing the number of stored
faults (1 of 1 in this example), SPN and FMI numbers.
Scroll down to view the fault parameter name.
With the selection arrow cursor next to
the Faults Stored option, press the Enter
switch to view stored faults.
First Main Menu screen appears with selection
arrow cursor next to Maintenance Hours.
Press the Down switch to place the selection arrow
cursor next to the Faults Stored option.
With a CAN parameter displayed, press and
hold the Enter switch to bring up the Main Menu.
Engine Hours parameter shown as an example only.
