NexSysLink
®
2" Stand-Alone CAN Display Operation Manual  SAE J1939
© 2011 Beede Electrical Instrument Co., Inc.

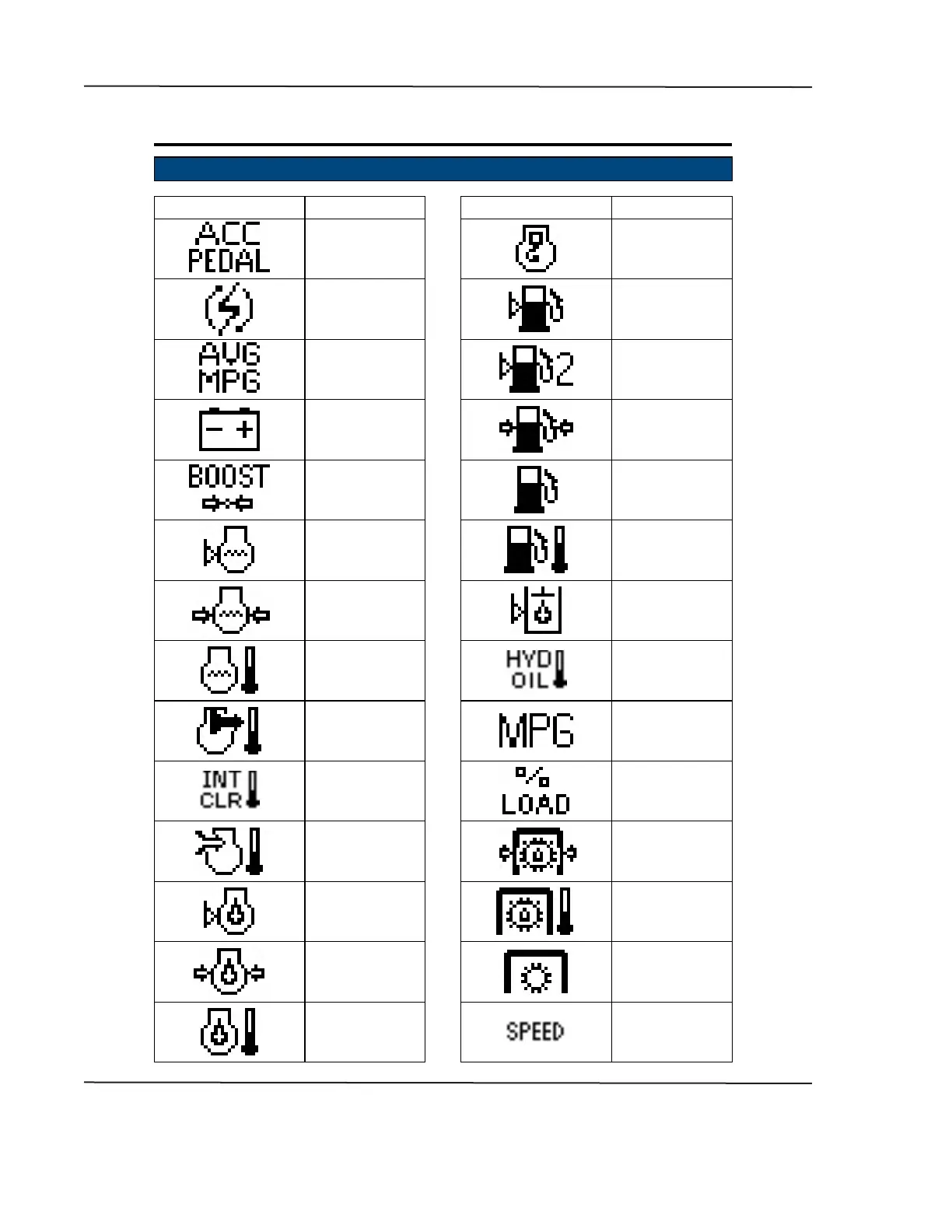

• Parameter Icons & Descriptions
Parameter Icon Description Parameter Icon Description
Accelerator Pedal
Position
Engine RPM/Speed
Alternator Current
or Voltage
Fuel Level
Average Fuel
Economy
Fuel Level 2
Battery Voltage
or current
Fuel Pressure
Boost Pressure
Fuel Rate/Flow
Total
Engine Coolant
Level
Fuel Temperature
Engine Coolant
Pressure
Hydraulic Oil Level
Engine Coolant
Temperature
Hydraulic Retarder
Oil Temperature
Engine Exhaust Tem-
perature
Instantaneous Fuel
Economy
Engine Intercooler
Temperature
Percent Load
Engine Manifold
Temperature
Power Takeo Oil
Pressure
Engine Oil Level
Power Takeo Oil
Temperature
Engine Oil Pressure Power Takeo Speed
Engine Oil
Temperature
Speed,
Wheel or Water
Based
