7.14 Viewing statistics

Click Status→Statistics in the left pane. The Statistics page displays the following information.

Statistics are available for LAN ports, WAN ports, and WLAN ports.

Select the LAN tab, WAN tab or WLAN tab to view the respective ports.

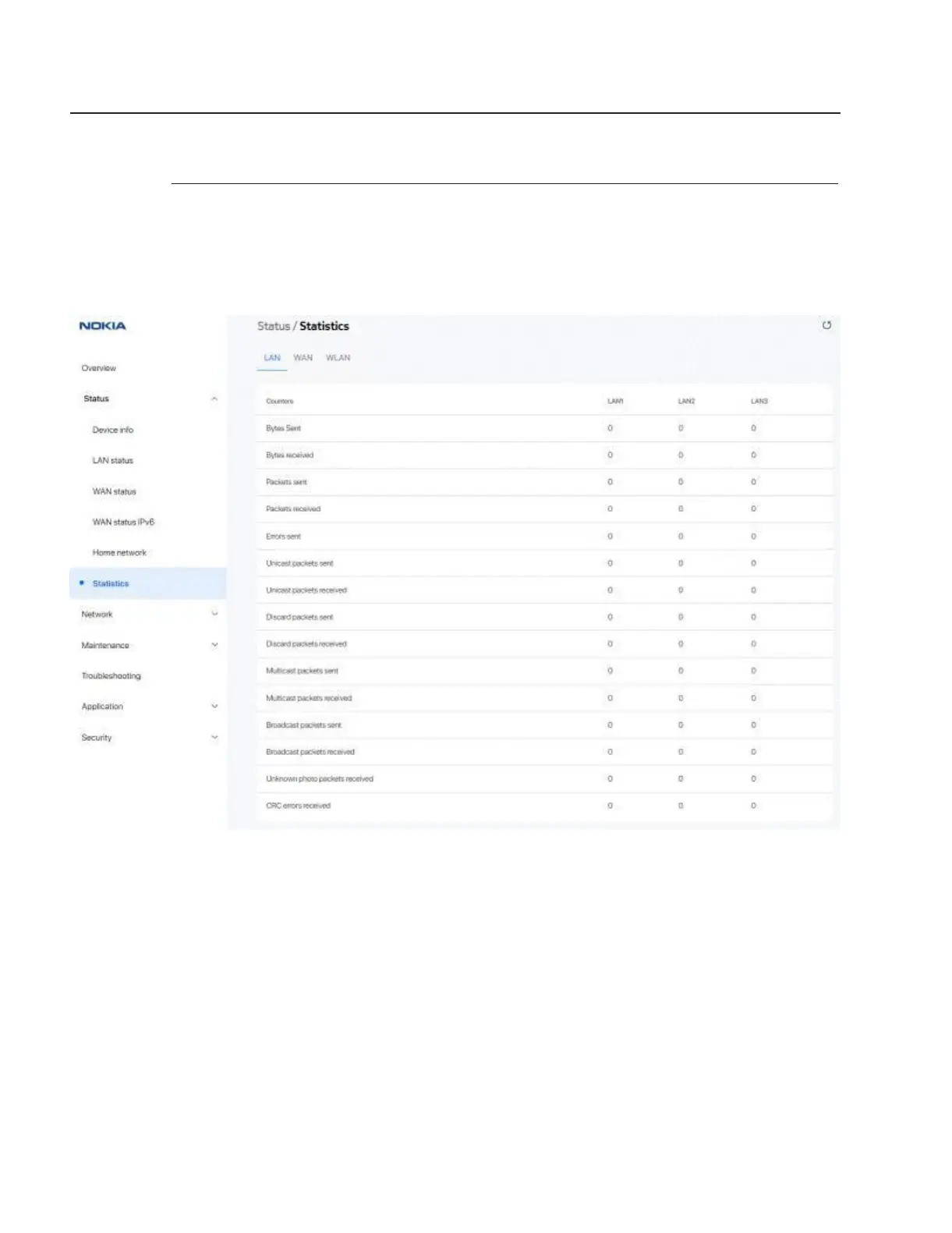

Figure 7-10 LAN Statistics page

Use subject to agreed restrictions on disclosure and use.

78 3FE-49949-AAAA-TCZZA

June 2022

Issue 1
