Nokia N96 Service Manual

Steps
1. From Target partition, select NAVI.
2. From State partition, select On.
3. Set Level to 100 and click Write.
4. Click Close to end the lights testing.
Switching Navi key lighting OFF using Phoenix
Prerequisites
First go through steps 1-5 in Switching display lighting ON using Phoenix (page 3–49) if not done yet.
Steps

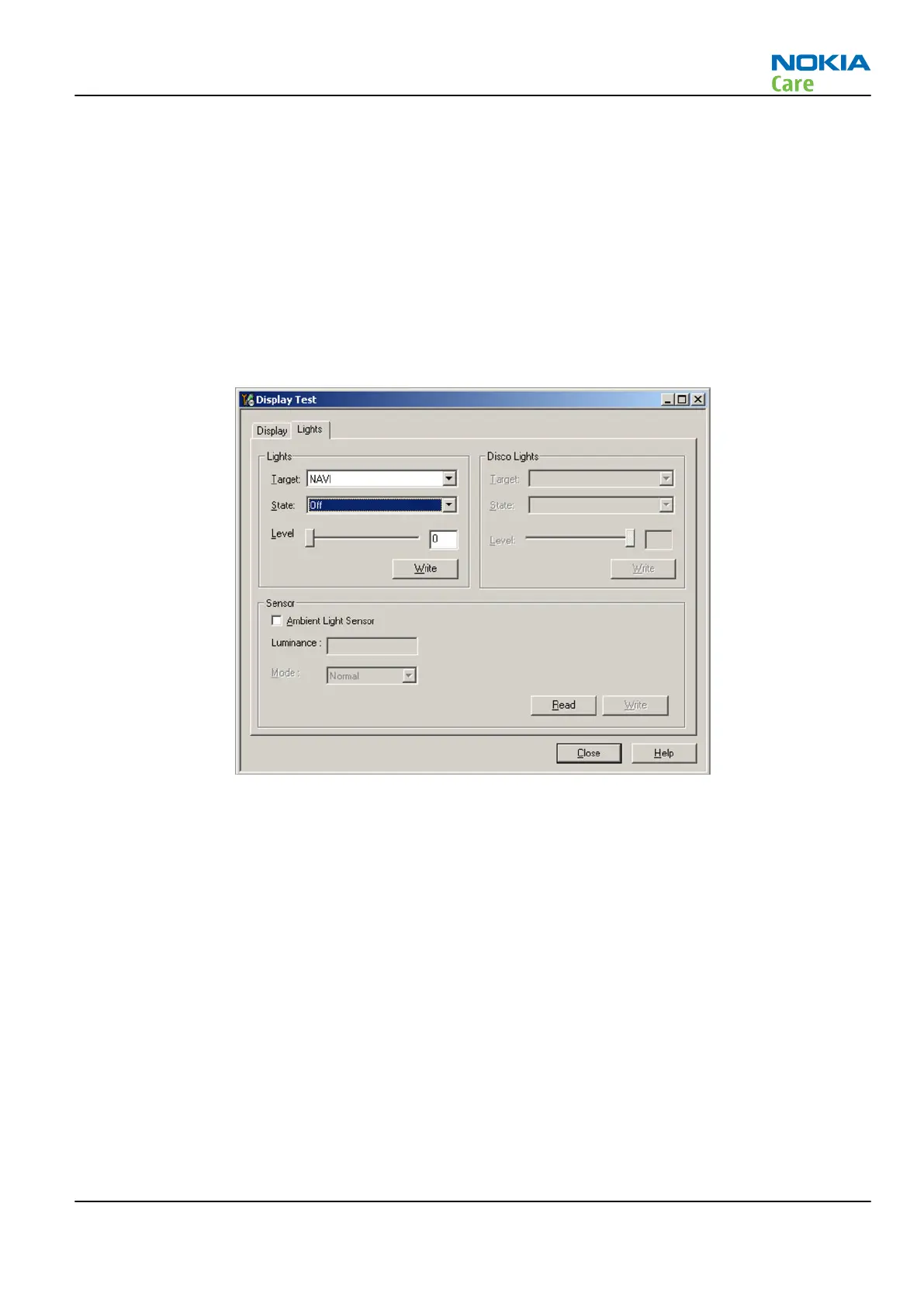

1. From Target partition, select NAVI.
2. From State partition, select Off.
3. Set Level to 0 and click Write.
4. Click Close to end the lights testing.
Switching frontmedia key lighting ON using Phoenix
Prerequisites
First go through steps 1-5 in Switching display lighting ON using Phoenix (page 3–49) if not done yet.
RM-247
BB Troubleshooting and Tuning Guide
Issue 1 COMPANY CONFIDENTIAL Page 3 –57
Copyright © 2008 Nokia. All rights reserved.

Nokia N96 Specifications

General

Panel type	TFT
Display diagonal	2.8 \
Display resolution	240 x 320 pixels
Display number of colors	16.78 million colors
Internal memory	16 MB
Front camera type	Single camera
Rear camera resolution	2592 x 1944 pixels
USB 2.0 ports quantity	1
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Audio formats supported	AAC, eAAC+, MP3, WMA
Image formats supported	EXIF
Ringer type	Polyphonic
Form factor	Slider
Product color	Gray
Talk time (2G)	150 h
Battery capacity	950 mAh
Standby time (2G)	200 h
Continuous audio playback time	14 h
Continuous video playback time	5 h
2G standards	HSCSD
Data network	wcdma
Bluetooth version	2.0+EDR

Weight and Dimensions

Depth	20 mm
Width	55 mm
Height	103 mm
Weight	125 g
