Nokia N96 Service Manual

AV connector
The device has a 3.5mm AV-connector. The user can use it to connect any audio accessory or e.g. TV-out cable
to the phone. In-box headset (HS-43) is so-called Enhancement Control Interface (ECI) accessory. If the
connected cable is not ECI accessory, cable recognizing is based on impedance on the microphone line. If the
cable cannot be recognized, the user can select which accessory type is connected to the phone.
There are five Audio Control lines from Cellular Modem ASIC D2800 to control control audio and AV-connector
related electronics. Those signals and default stages of the signals are described in the following table.
Table 17 AUDIOCTRL interface
Signal Control Default state / action
AUDIOCTRL(0),
AVPaEn
Headphone amplifier 0 (shutdown)
AUDIOCTRL(1),
AVPlugDet
Plug_det from AV-
connector
1.8V (VIO), grounded when 3.5mm plug
inserted
AUDIOCTRL(2),
AVECICtrl
Mic2P / head_det
switch N2001
Default 0 (microphone line connected
to Mic2P). When 1, microphone line
connected to head_det -> ECI-detection
AUDIOCTRL(3),
AVVideoCtrl
Mic2P / Comp_Video
switch N2001
Default 0, (microphone line connected
to Mic2P). When 1, Composite Video
from APE connected to microphone
line.
AUDIOCTRL(4),
IHF_AMP_EN
IHF amp N2120 Default 0, IHF amplifier and
attenuation not used.

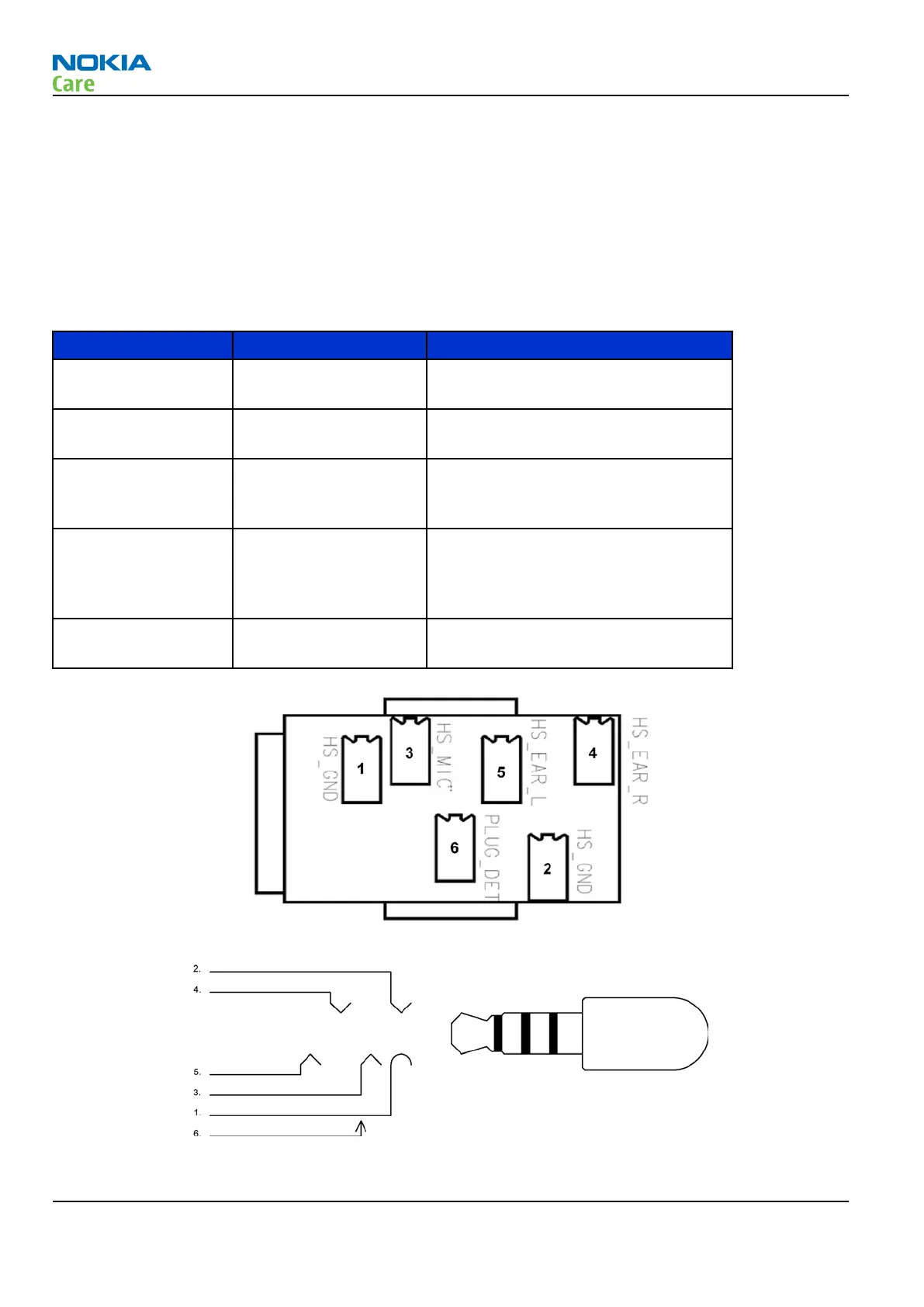

Figure 64 AV connector component layout and pads
Figure 65 Connector pin layout (Plug conductors from left to right HS EAR L, HS EAR R, HS MIC/Cntrl. and HS GND)
RM-247
System Module
Page 7 –28 COMPANY CONFIDENTIAL Issue 1
Copyright © 2008 Nokia. All rights reserved.

Nokia N96 Specifications

General

Panel type	TFT
Display diagonal	2.8 \
Display resolution	240 x 320 pixels
Display number of colors	16.78 million colors
Internal memory	16 MB
Front camera type	Single camera
Rear camera resolution	2592 x 1944 pixels
USB 2.0 ports quantity	1
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Audio formats supported	AAC, eAAC+, MP3, WMA
Image formats supported	EXIF
Ringer type	Polyphonic
Form factor	Slider
Product color	Gray
Talk time (2G)	150 h
Battery capacity	950 mAh
Standby time (2G)	200 h
Continuous audio playback time	14 h
Continuous video playback time	5 h
2G standards	HSCSD
Data network	wcdma
Bluetooth version	2.0+EDR

Weight and Dimensions

Depth	20 mm
Width	55 mm
Height	103 mm
Weight	125 g
