Nokia N96 Service Manual

Table 16 General WLAN specifications
Supported channels USA 1-11 (2412-2462MHz)
ETSI 1-13 (2412-2472MHz)
Transmitter power
Barker/CCK (1, 2, 5.5, 11Mbps datarate)
OFDM-BPSK(6, 9 Mb/s)
OFDM-QPSK(12,18 Mb/s)
OFDM-16QAM (24, 36 Mb/s)
OFDM-64QAM (48,54 Mb/s)
16dBm
14dBm
14dBm
12dbm
12dBm
Power control range 0-16dBm
Receiver sensitivity (typical)
11M/bits. 1024bytes / 8% PER
54 Mb/s, 1000 bytes, 10% PER
-83dBm
-70dBm
GPS interface
The device includes an inbuilt GPS receiver and it works as a stand-alone positioning device. The antenna is
located on the top right corner on the bottom side of the product.
The GPS system is connected to RAPIDO ASIC.

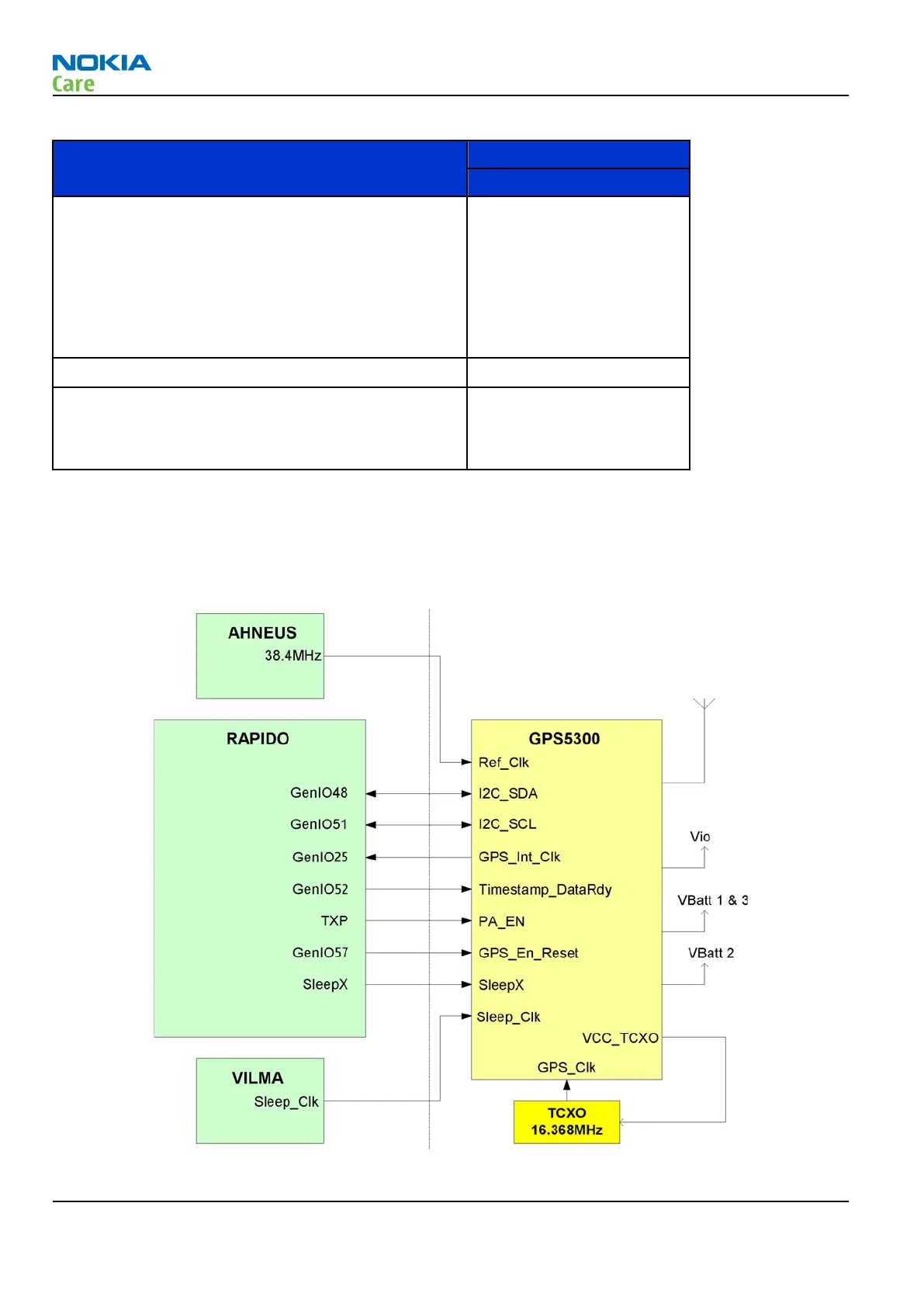

Figure 49 Block diagram of the GPS system
RM-247
System Module
Page 7 –16 COMPANY CONFIDENTIAL Issue 1
Copyright © 2008 Nokia. All rights reserved.

Nokia N96 Specifications

General

Panel type	TFT
Display diagonal	2.8 \
Display resolution	240 x 320 pixels
Display number of colors	16.78 million colors
Internal memory	16 MB
Front camera type	Single camera
Rear camera resolution	2592 x 1944 pixels
USB 2.0 ports quantity	1
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Audio formats supported	AAC, eAAC+, MP3, WMA
Image formats supported	EXIF
Ringer type	Polyphonic
Form factor	Slider
Product color	Gray
Talk time (2G)	150 h
Battery capacity	950 mAh
Standby time (2G)	200 h
Continuous audio playback time	14 h
Continuous video playback time	5 h
2G standards	HSCSD
Data network	wcdma
Bluetooth version	2.0+EDR

Weight and Dimensions

Depth	20 mm
Width	55 mm
Height	103 mm
Weight	125 g
