Next actions
If you want to troubleshoot the other bands, change band with RF controls and set the communication
analyser accordingly.

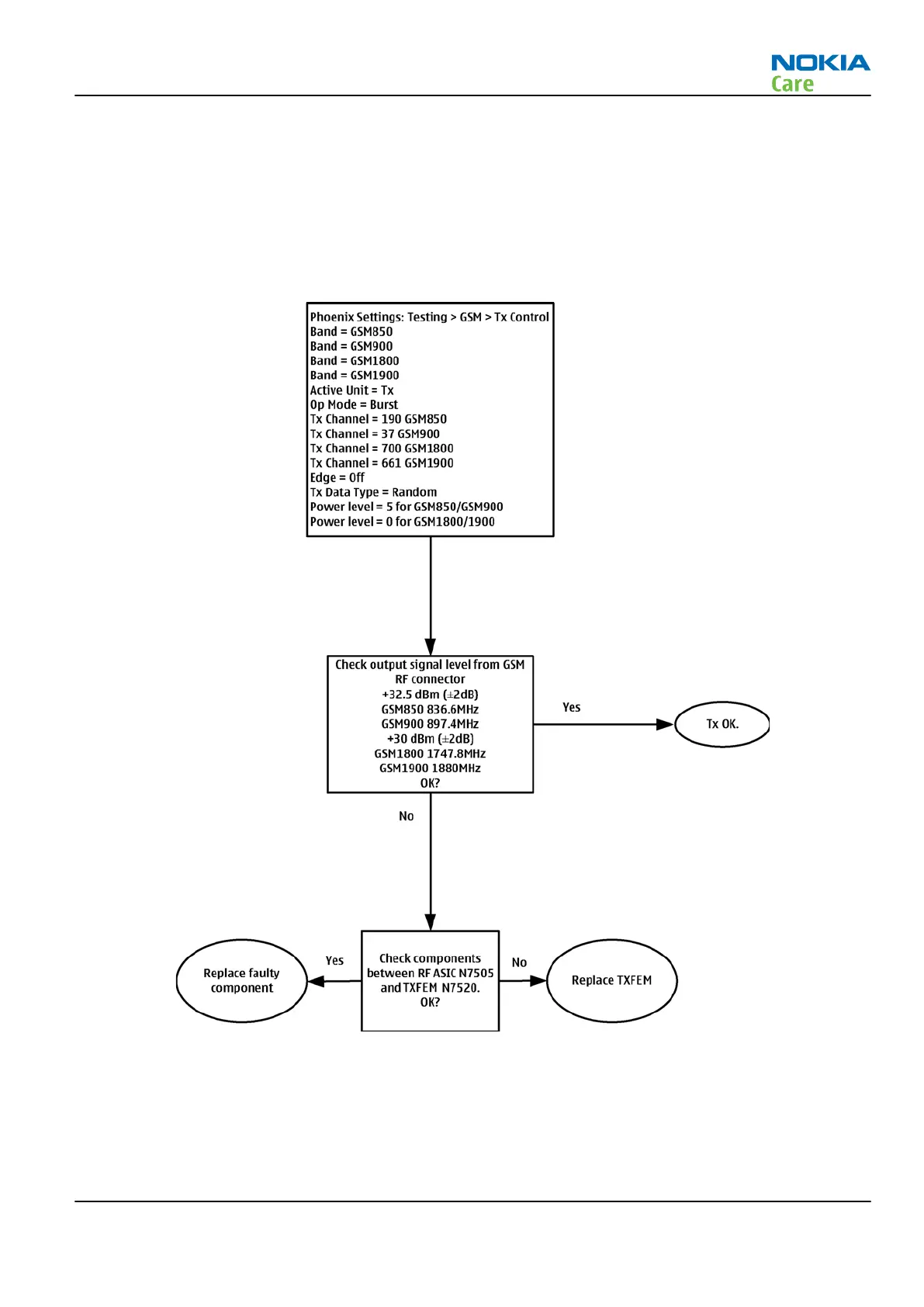

GSM transmitter troubleshooting flowchart
Troubleshooting flow
WCDMA transmitter troubleshooting
Steps
1. Set the phone to local mode.
2. In Phoenix, select Testing→WCDMA→TX control .
RM-247
RF troubleshooting
Issue 1 COMPANY CONFIDENTIAL Page 4 –17
Copyright © 2008 Nokia. All rights reserved.
