Nokia N96 Service Manual

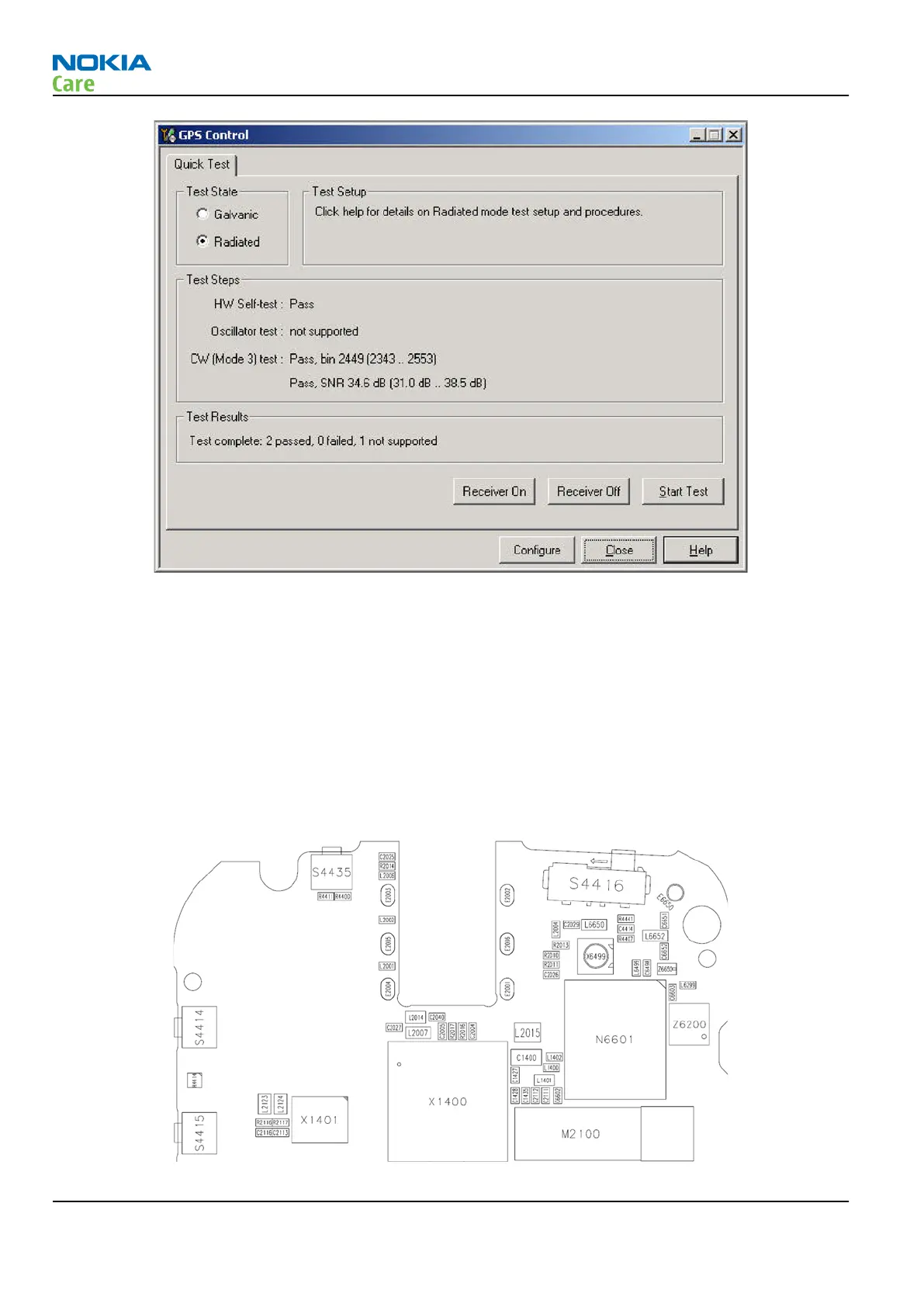

Figure 22 GPS Quick Test window for GPS troubleshooting
GPS RF test points
The GPS antenna test pads are located on the top side under the keymat as shown in figure "GPS antenna
test pads". Checking for a connection between these two test points will confirm that the antenna is working
correctly, as well as performing a radiated CW test.
J6210 = GPS Ant
J6211 = GPS Ant Gnd
In order to probe GPS RF test points, inject 1575.52 MHz tone @ -50dBm at the GPS antenna test connector
and select Receiver On, then probe the GPS RF test points as shown in figure "GPS RF probe points". Compare
RF levels with a known reference phone.
Figure 23 GPS antenna test pads
RM-247
BB Troubleshooting and Tuning Guide
Page 3 –40 COMPANY CONFIDENTIAL Issue 1
Copyright © 2008 Nokia. All rights reserved.

Nokia N96 Specifications

General

Panel type	TFT
Display diagonal	2.8 \
Display resolution	240 x 320 pixels
Display number of colors	16.78 million colors
Internal memory	16 MB
Front camera type	Single camera
Rear camera resolution	2592 x 1944 pixels
USB 2.0 ports quantity	1
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Audio formats supported	AAC, eAAC+, MP3, WMA
Image formats supported	EXIF
Ringer type	Polyphonic
Form factor	Slider
Product color	Gray
Talk time (2G)	150 h
Battery capacity	950 mAh
Standby time (2G)	200 h
Continuous audio playback time	14 h
Continuous video playback time	5 h
2G standards	HSCSD
Data network	wcdma
Bluetooth version	2.0+EDR

Weight and Dimensions

Depth	20 mm
Width	55 mm
Height	103 mm
Weight	125 g
