Nokia N96 Service Manual

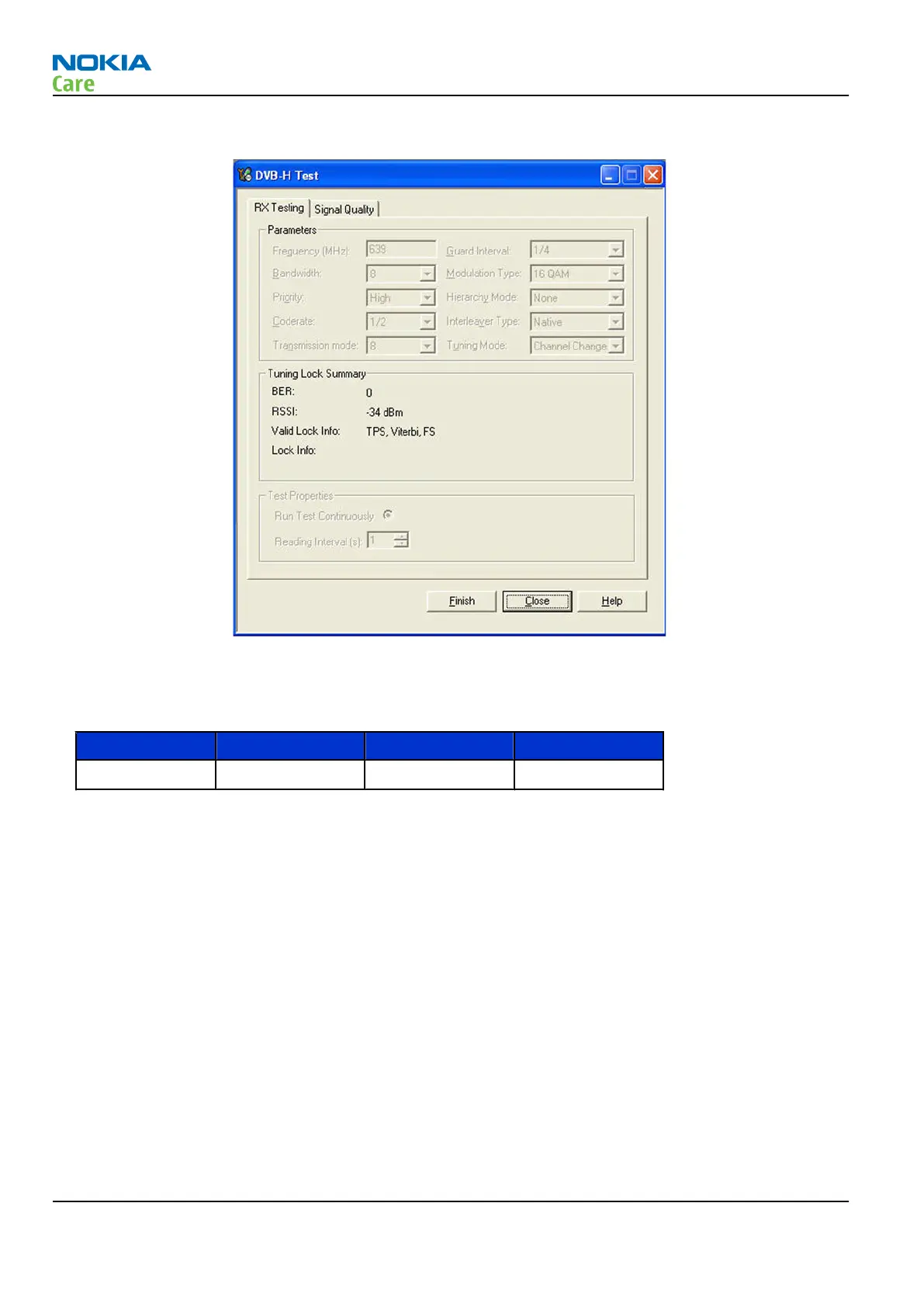

7. Monitor the RSSI value in the Tuning Lock Summary field (see figure below).
8. CW test result > RSSI reading > The RSSI value should be within limits given in the following table.
Note: CW test result > RSSI reading (“Signal Quality” feature is not needed).
Table 14 Setup and target test values
Frequency Signal level RSSI value Tolerance
637 -30 dBm -53dBm +/-3dBm
Note: Frequency in the table is typed in DVB-H Test/Frequency field. Set signal generator frequency always 1 MHz higher.
Galvanic DVB-H RF test measurement with FS-51
Note: Setup: PC/Phoenix/FLS-5/SS-46/FS-51 with integrated galvanic RF/SMA connector + signal
generator
RM-247
TV troubleshooting
Page 6 –8 COMPANY CONFIDENTIAL Issue 1
Copyright © 2008 Nokia. All rights reserved.

Nokia N96 Specifications

General

Panel type	TFT
Display diagonal	2.8 \
Display resolution	240 x 320 pixels
Display number of colors	16.78 million colors
Internal memory	16 MB
Front camera type	Single camera
Rear camera resolution	2592 x 1944 pixels
USB 2.0 ports quantity	1
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Audio formats supported	AAC, eAAC+, MP3, WMA
Image formats supported	EXIF
Ringer type	Polyphonic
Form factor	Slider
Product color	Gray
Talk time (2G)	150 h
Battery capacity	950 mAh
Standby time (2G)	200 h
Continuous audio playback time	14 h
Continuous video playback time	5 h
2G standards	HSCSD
Data network	wcdma
Bluetooth version	2.0+EDR

Weight and Dimensions

Depth	20 mm
Width	55 mm
Height	103 mm
Weight	125 g
