Nokia N96 Service Manual

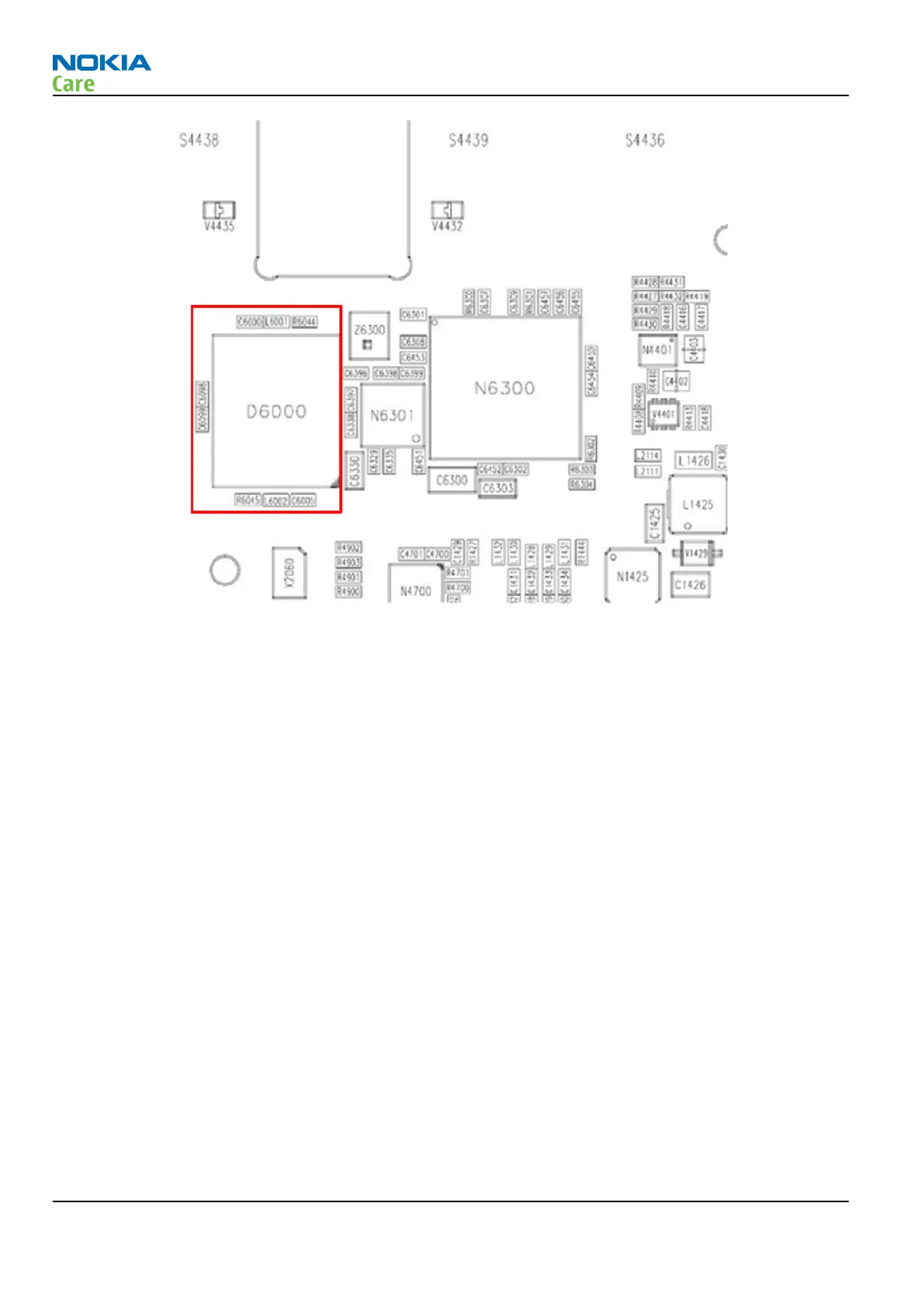

Figure 26 Bluetooth placement on the top side
Bluetooth settings for Phoenix
Steps
1. Start
Phoenix service software.
2. From the File menu, choose Open Product, and then choose the correct type designator from the
Product list.
3. Place the phone to a flash adapter in the local mode.
4. Choose Testing→Bluetooth LOCALS .
5. Locate JBT-9’s serial number (12 digits) found in the type label on the back of JBT-9.
In addition to JBT-9, also SB-6, JBT-3 and JBT-6 Bluetooth test boxes can be used.
6. In the Bluetooth LOCALS window, write the 12-digit serial number on the
Counterpart BT Device Address line.
This needs to be done only once provided that JBT-9 is not changed.
7. Place the JBT-9 box near (within 10 cm) the BT antenna and click Run BER Test.
Results
Bit Error Rate test result is displayed in the Bit Error Rate (BER) Tests pane in the Bluetooth LOCALS window.
RM-247
BB Troubleshooting and Tuning Guide
Page 3 –60 COMPANY CONFIDENTIAL Issue 1
Copyright © 2008 Nokia. All rights reserved.
