Nokia N96 Service Manual

Video clip length Maximal clip length is 60 mins (High or Normal quality)
or limited to MMS size approx. 30 seconds (Sharing
quality)
Note: Clip length is dependable on available
memory
Video file format .mp4 (default) and .3gp (for MMS)
Auto exposure Center weighted AE
White balance Automatic, sunny, cloudy, incandescent, flurescent
Colour tones Normal, sepia, vivid, black&white, negative
Capture Modes Still capture mode, video mode and sequence mode
Selftimer 2, 10, or 20 secs
Flash settings Auto, off, forced, anti red-eye
Automatic image rotation On / Off
Camera flash
The device has also camera flash located directly beside the main camera, providing better image quality in
darker environments. The flash has a built in red indicator that is used as a privacy indicator. The red led is
lit during video recording and it is also used to indicate image capture with main camera. The camera flash
is located on the flash PWB and the PWB is connected to the main PWB through connector.
The camera flash has two power white LEDs and one red LED inside the module. The flash PWB also includes
a lens with its plastic housing to ensure a proper light pattern at the target.

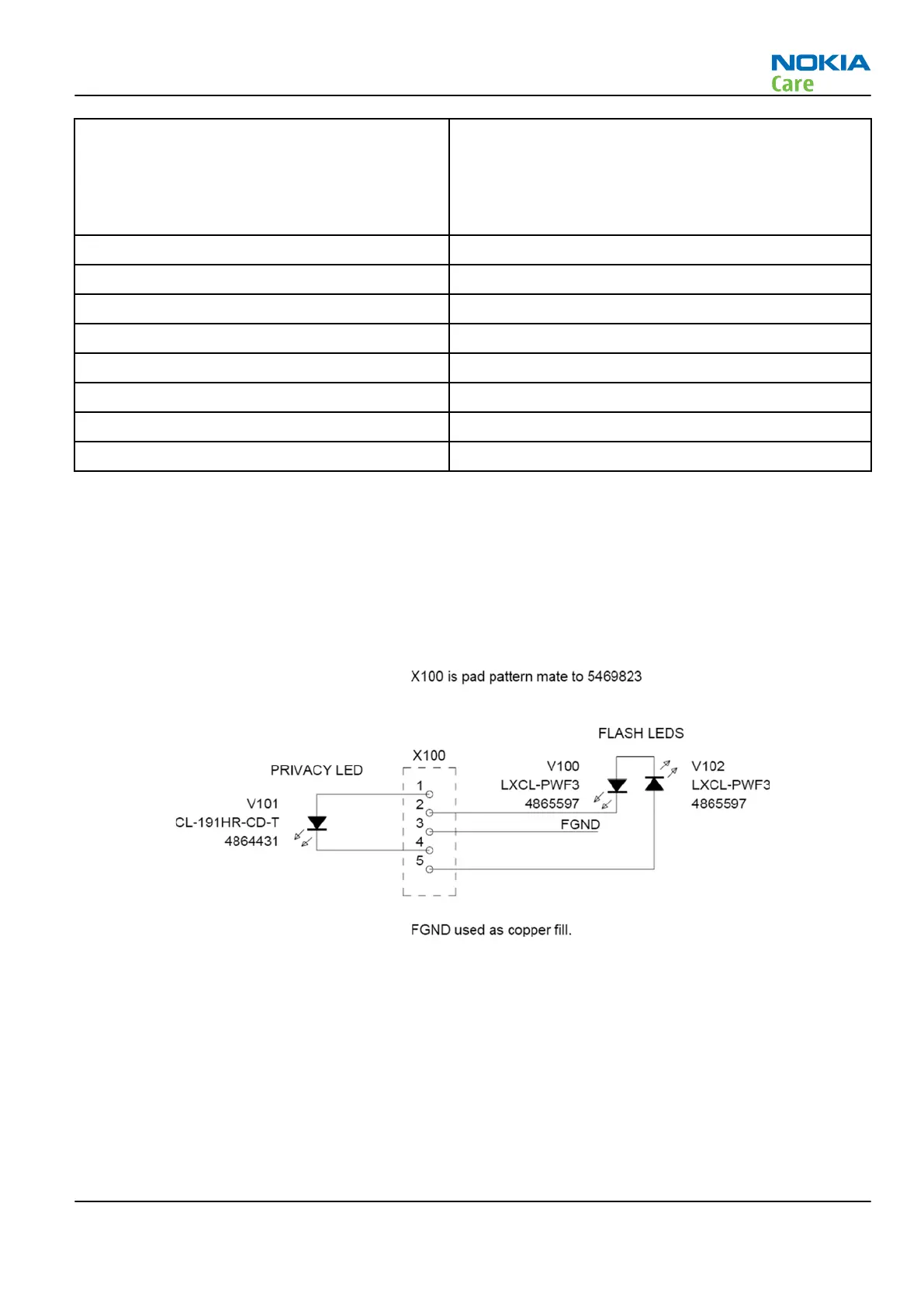

Figure 56 Camera flash circuit
RM-247
System Module
Issue 1 COMPANY CONFIDENTIAL Page 7 –23
Copyright © 2008 Nokia. All rights reserved.

Nokia N96 Specifications

General

Panel type	TFT
Display diagonal	2.8 \
Display resolution	240 x 320 pixels
Display number of colors	16.78 million colors
Internal memory	16 MB
Front camera type	Single camera
Rear camera resolution	2592 x 1944 pixels
USB 2.0 ports quantity	1
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Audio formats supported	AAC, eAAC+, MP3, WMA
Image formats supported	EXIF
Ringer type	Polyphonic
Form factor	Slider
Product color	Gray
Talk time (2G)	150 h
Battery capacity	950 mAh
Standby time (2G)	200 h
Continuous audio playback time	14 h
Continuous video playback time	5 h
2G standards	HSCSD
Data network	wcdma
Bluetooth version	2.0+EDR

Weight and Dimensions

Depth	20 mm
Width	55 mm
Height	103 mm
Weight	125 g
