Nokia N96 Service Manual

RF description
Block diagram

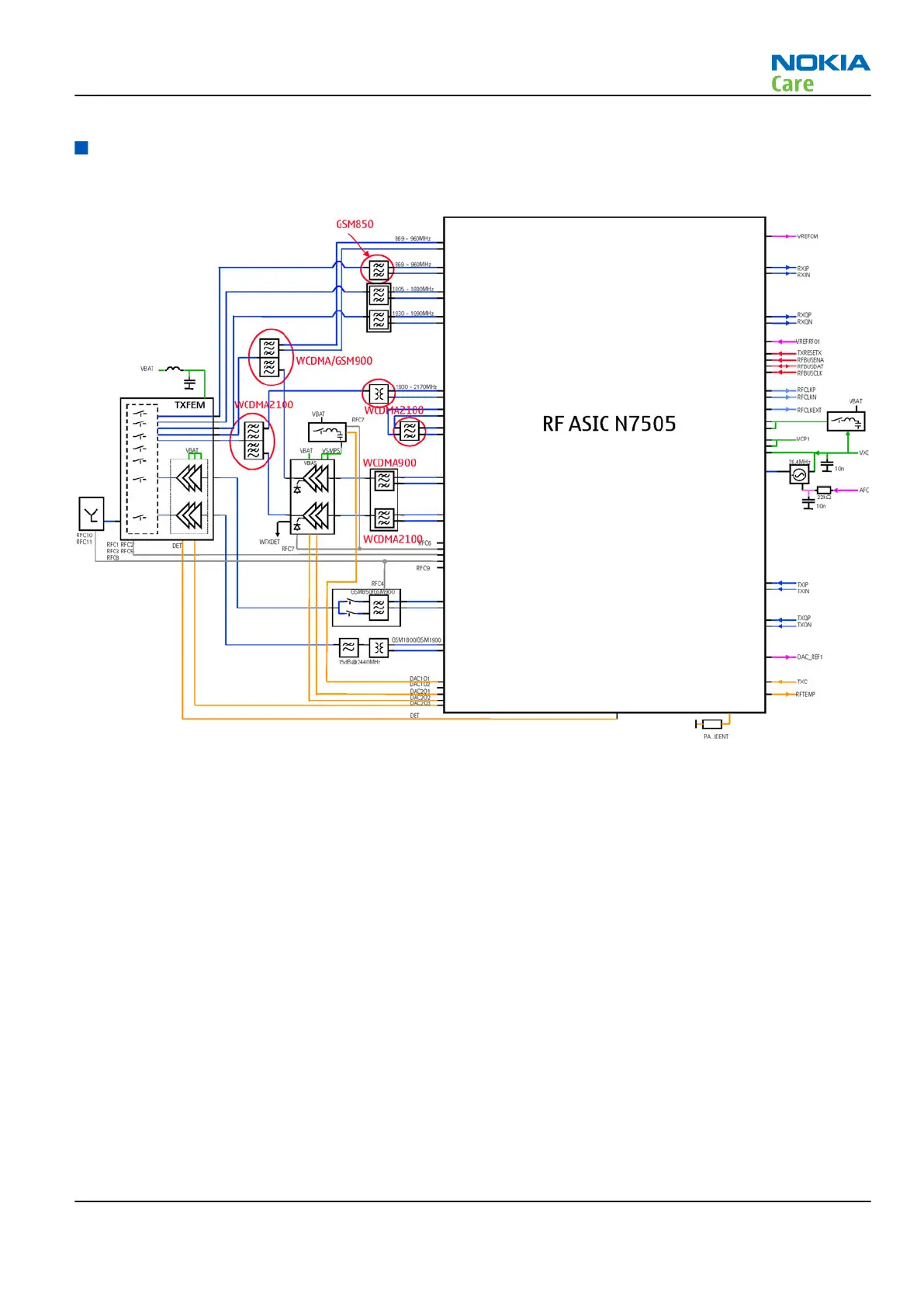

Figure 67 RF block diagram
The RF block diagram for RM-247 uses RF ASIC N7505 that performs the RF back-end functions of receive and
transmit function of the cellular transceiver.
Receiver (RX)
An analogue signal is received by the phone's antenna. The signal is converted to a digital signal and is then
transferred further to the baseband (eg. to the earpiece).
The receiver functions are implemented in the RF ASIC.
Signals with different frequencies take different paths, therefore being handled by different components.
The principle of GSM and WCDMA is the same.
RM-247
System Module
Issue 1 COMPANY CONFIDENTIAL Page 7 –33
Copyright © 2008 Nokia. All rights reserved.

Nokia N96 Specifications

General

Panel type	TFT
Display diagonal	2.8 \
Display resolution	240 x 320 pixels
Display number of colors	16.78 million colors
Internal memory	16 MB
Front camera type	Single camera
Rear camera resolution	2592 x 1944 pixels
USB 2.0 ports quantity	1
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Audio formats supported	AAC, eAAC+, MP3, WMA
Image formats supported	EXIF
Ringer type	Polyphonic
Form factor	Slider
Product color	Gray
Talk time (2G)	150 h
Battery capacity	950 mAh
Standby time (2G)	200 h
Continuous audio playback time	14 h
Continuous video playback time	5 h
2G standards	HSCSD
Data network	wcdma
Bluetooth version	2.0+EDR

Weight and Dimensions

Depth	20 mm
Width	55 mm
Height	103 mm
Weight	125 g
