Nokia N96 Service Manual

WCDMA RX chain activation for manual measurement/WCDMA RSSI measurement
Prerequisites
Make the following settings in Phoenix service software and in the signal generator.
Setting WCDMA Band I (2100) WCDMA Band VIII (900)
Phoenix channel 10700 3013
Signal generator to antenna
connector
2141.0 MHz 942.6 MHz
Signal generator Rf-level (CW-
signal)
-70 dBm -70 dBm
Steps

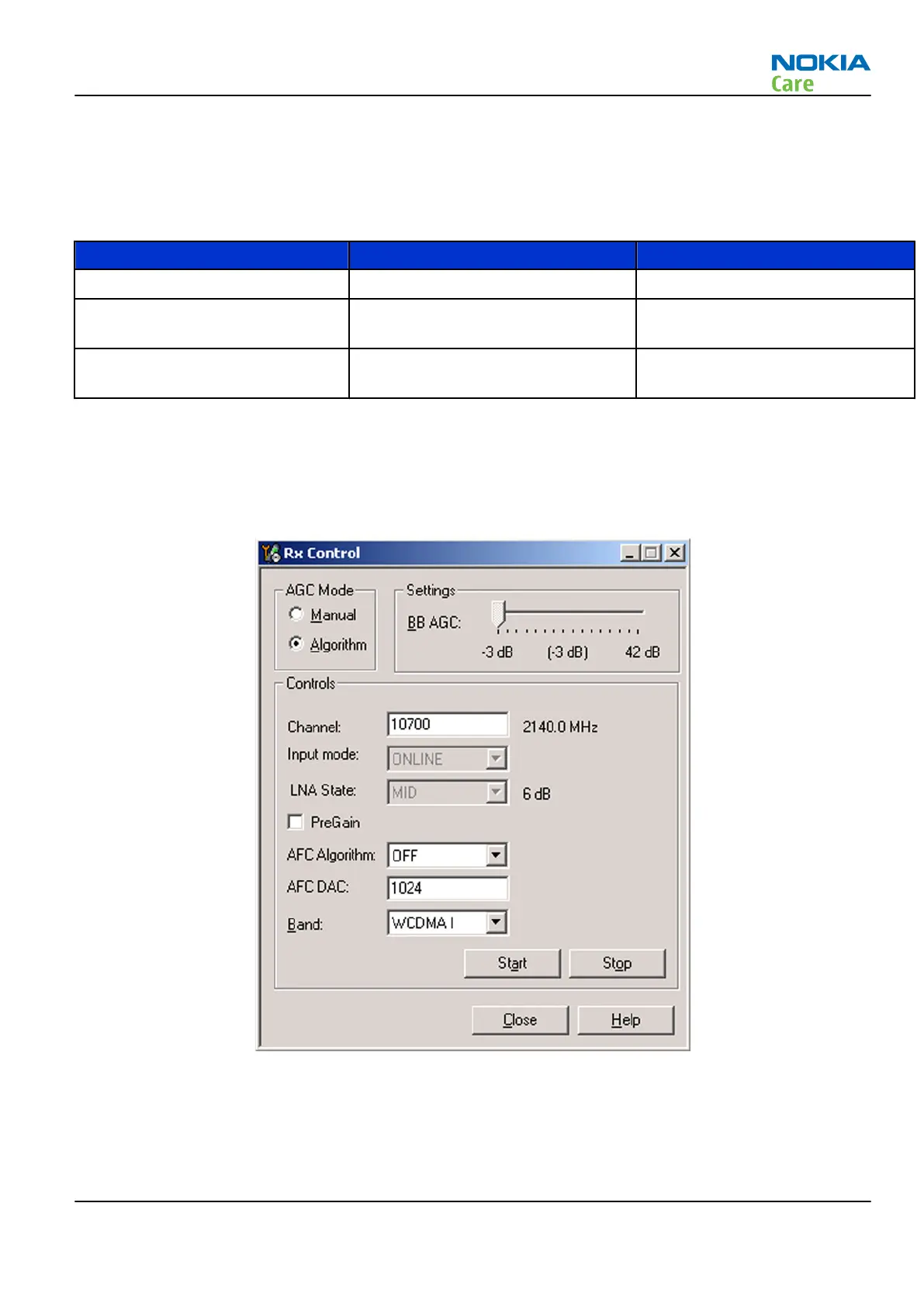

1. Via Phoenix Testing menu, choose WCDMA/RX Control.
2. In the RX control window, make the following settings (adjust Channel and Band according to the table
above):
3. Click Start to activate the settings.
If the settings are changed later on (for example, change of channel) you have to click Stop and Start
again.
Note: Clicking Stop also disables TX control if it was active.
4. From the Phoenix testing menu, select WCDMA→RX Power measurement
RM-247
RF troubleshooting
Issue 1 COMPANY CONFIDENTIAL Page 4 –13
Copyright © 2008 Nokia. All rights reserved.
