Nokia N96 Service Manual

Receiver troubleshooting
Introduction to receiver (RX) troubleshooting
RX can be tested by making a phone call or in local mode. For the local mode testing, use Phoenix service
software.
The main RX troubleshooting measurement is RSSI reading. This test measures the signal strength of the
received signal. For GSM RSSI measurements, see GSM RX chain activation for manual measurements / GSM
RSSI measurement (page 4–12). For a similar test in WCDMA mode, see WCDMA RX chain activation for
manual measurement / WCDMA RSSI measurement (page 4–13).
GSM RX chain activation for manual measurements/GSM RSSI measurement
Prerequisites
Make the following settings in Phoenix service software:
Setting GSM850 GSM900 GSM1800 GSM1900
Phoenix Channel 189 37 700 661
Signal generator
to antenna
connector
881.46771MHz
(67.71KHz offset)
at -60dBm
942.46771MHz
(67.71kHz offset)
at -60dBm
1842.86771MHz
(67.71kHz offset)
at -60dBm
1960.06771MHz
(67.71kHz offset)
at -60dBm
Steps
1. Set the phone to local mode.

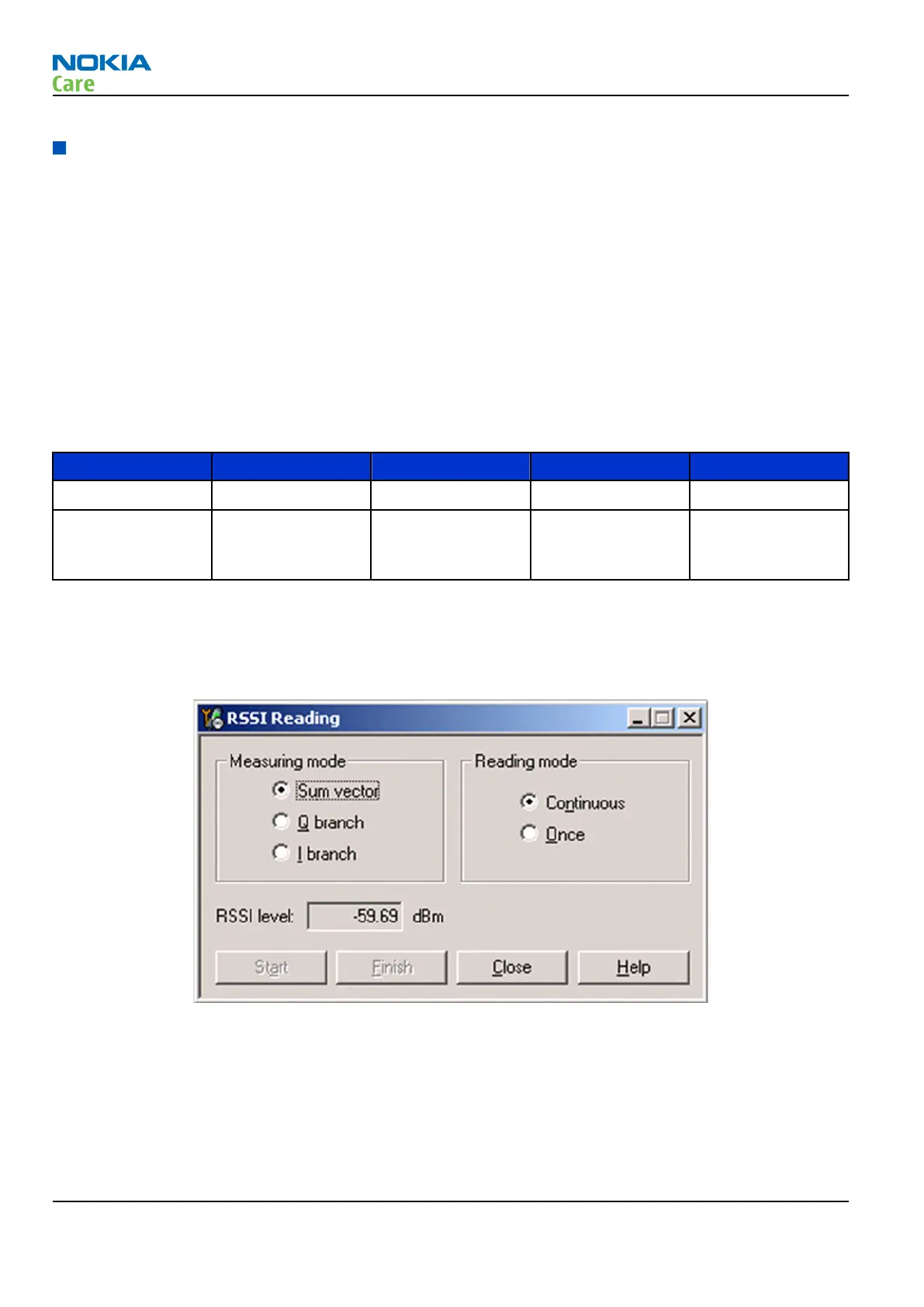

2. Activate RSSI reading in Phoenix (Testing→GSM→RSSI reading )
Results
The reading should reflect the level of the signal generator (-losses) +/- 5 dB.
When varying the level in the range -30 to -102 dBm the reading should then follow within +/-5 dB.
RM-247
RF troubleshooting
Page 4 –12 COMPANY CONFIDENTIAL Issue 1
Copyright © 2008 Nokia. All rights reserved.
