Nokia N96 Service Manual

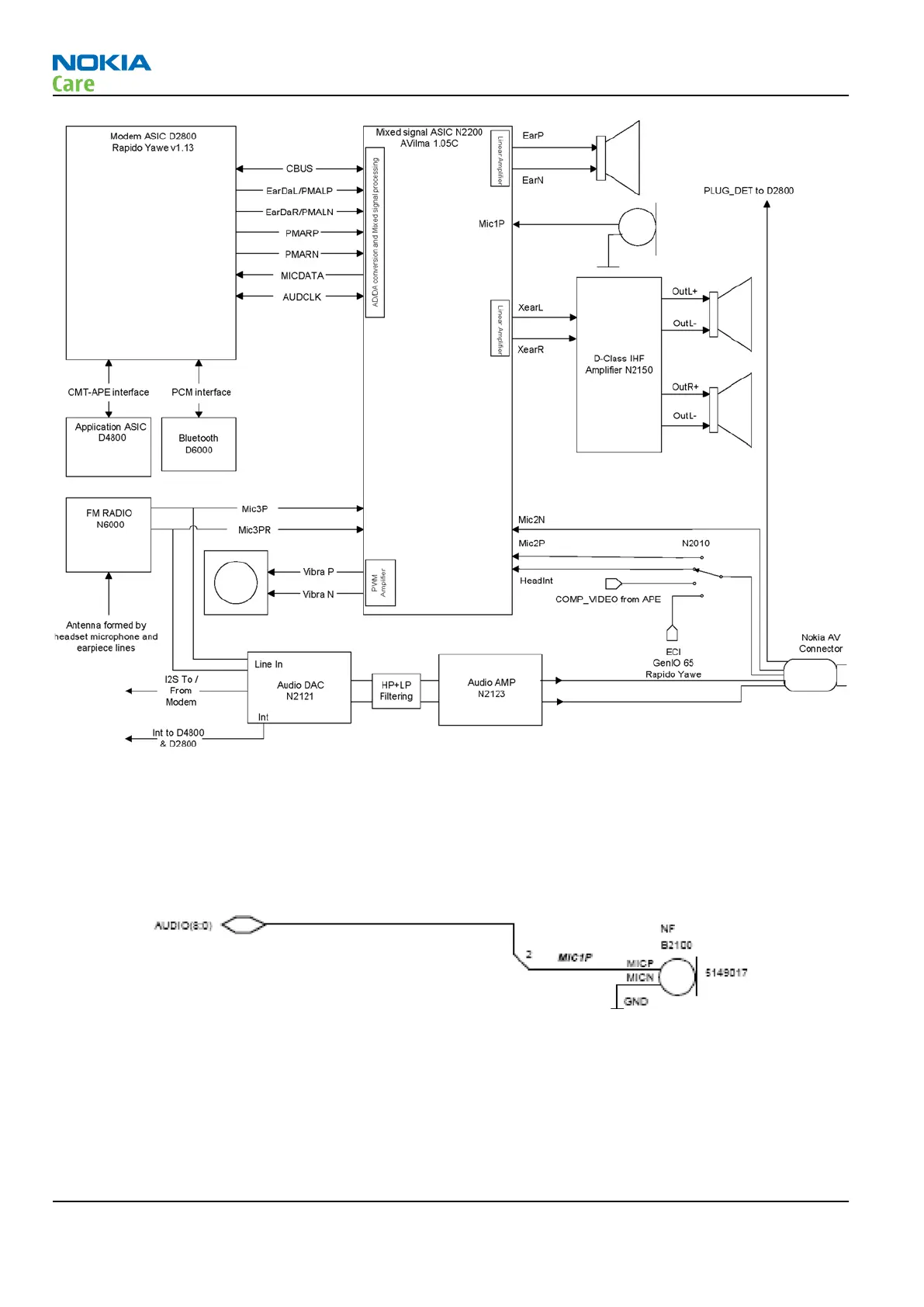

Figure 60 Audio block diagram
Internal microphone
The internal microphone is used for HandPortable (HP) and Internal HandsFree (IHF) call modes. Also if the
accessory headset does not have microphone, the phone uses the internal microphone. An analogue electret
microphone is connected to the EM ASIC N2200 Mic1P input via asymmetric electrical connection. The
microphone is biased by the EM ASIC MicB1 bias voltage output.
Figure 61 Internal microphone
External microphone
Galvanic accessories are connected to the 3.5mm AV-connector. Accessory audio mode is automatically
enabled/disabled during connection/disconnection of dedicated phone accessories. External microphone is
connected to EM ASIC N2200 input Mic2P and Mic2N. Mic2P, Head_Det line of EM ASIC N2200 and Composite
Video input from application ASIC are multiplexed to the same AV-connector line.
RM-247
System Module
Page 7 –26 COMPANY CONFIDENTIAL Issue 1
Copyright © 2008 Nokia. All rights reserved.

Nokia N96 Specifications

General

Panel type	TFT
Display diagonal	2.8 \
Display resolution	240 x 320 pixels
Display number of colors	16.78 million colors
Internal memory	16 MB
Front camera type	Single camera
Rear camera resolution	2592 x 1944 pixels
USB 2.0 ports quantity	1
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Audio formats supported	AAC, eAAC+, MP3, WMA
Image formats supported	EXIF
Ringer type	Polyphonic
Form factor	Slider
Product color	Gray
Talk time (2G)	150 h
Battery capacity	950 mAh
Standby time (2G)	200 h
Continuous audio playback time	14 h
Continuous video playback time	5 h
2G standards	HSCSD
Data network	wcdma
Bluetooth version	2.0+EDR

Weight and Dimensions

Depth	20 mm
Width	55 mm
Height	103 mm
Weight	125 g
