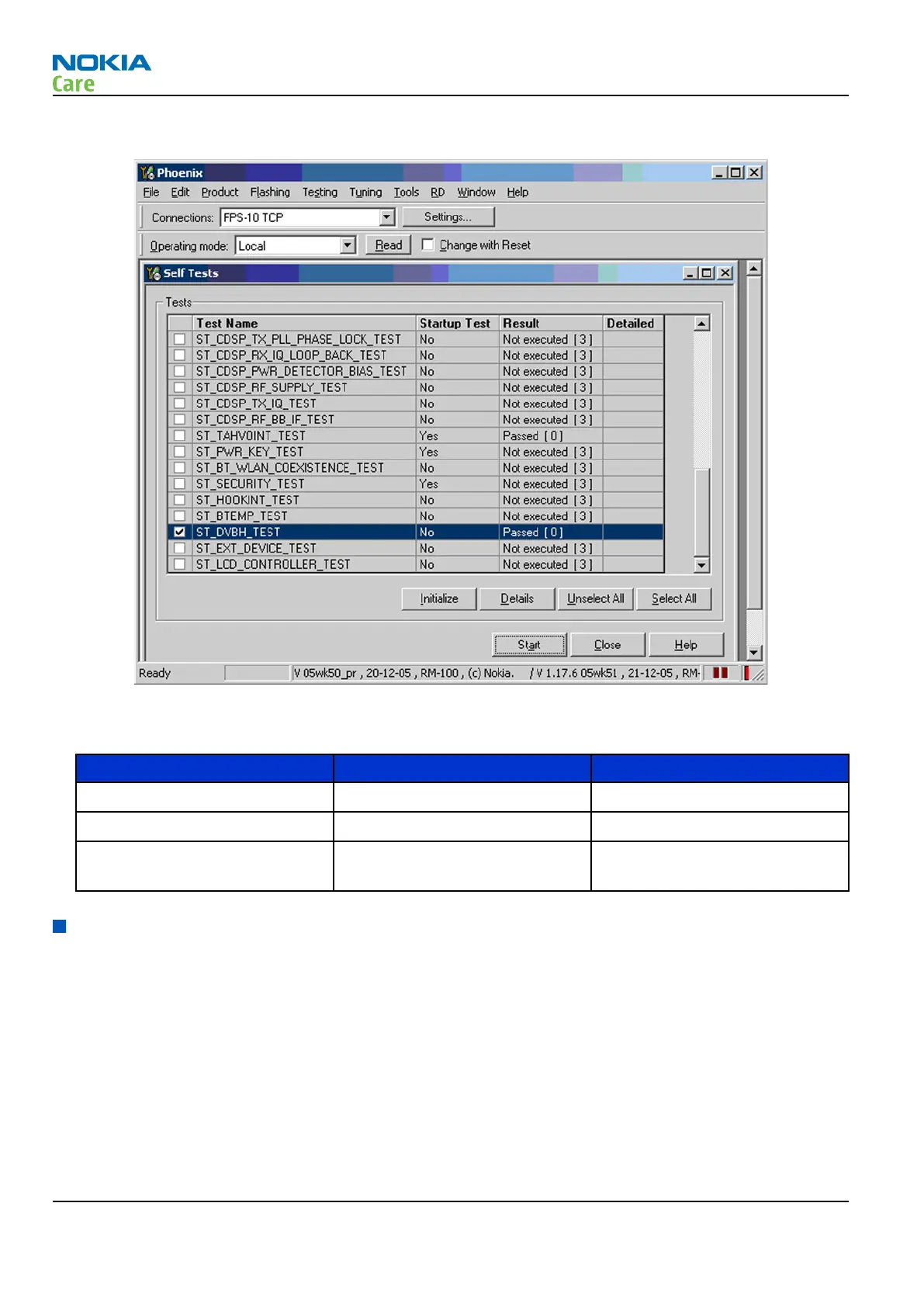

4. Press Start. The result can be seen from Result column.
5. Follow the DVB-H troubleshooting flowchart.
Table 13 Pass/Fail Failure codes
Result Description Action
0x1 Self test failed. Replace DVB-H Module.
0xFD(-3) No connection to DVB-H Module. -
0xF2(-14) Another test is ongoing. Restart the phone and run the
self test again.
DVB-H RF test measurement
Radiated DVB-H RF test measurement with Willtek 4403 universal coupler
Note: Setup: PC/Phoenix + Willtek 4403 universal coupler + signal generator + battery cover attached
to phone
Steps
1. Setup the connection as shown in the figure below.
Note: CMU
RM-247
TV troubleshooting
Page 6 –6 COMPANY CONFIDENTIAL Issue 1
Copyright © 2008 Nokia. All rights reserved.
