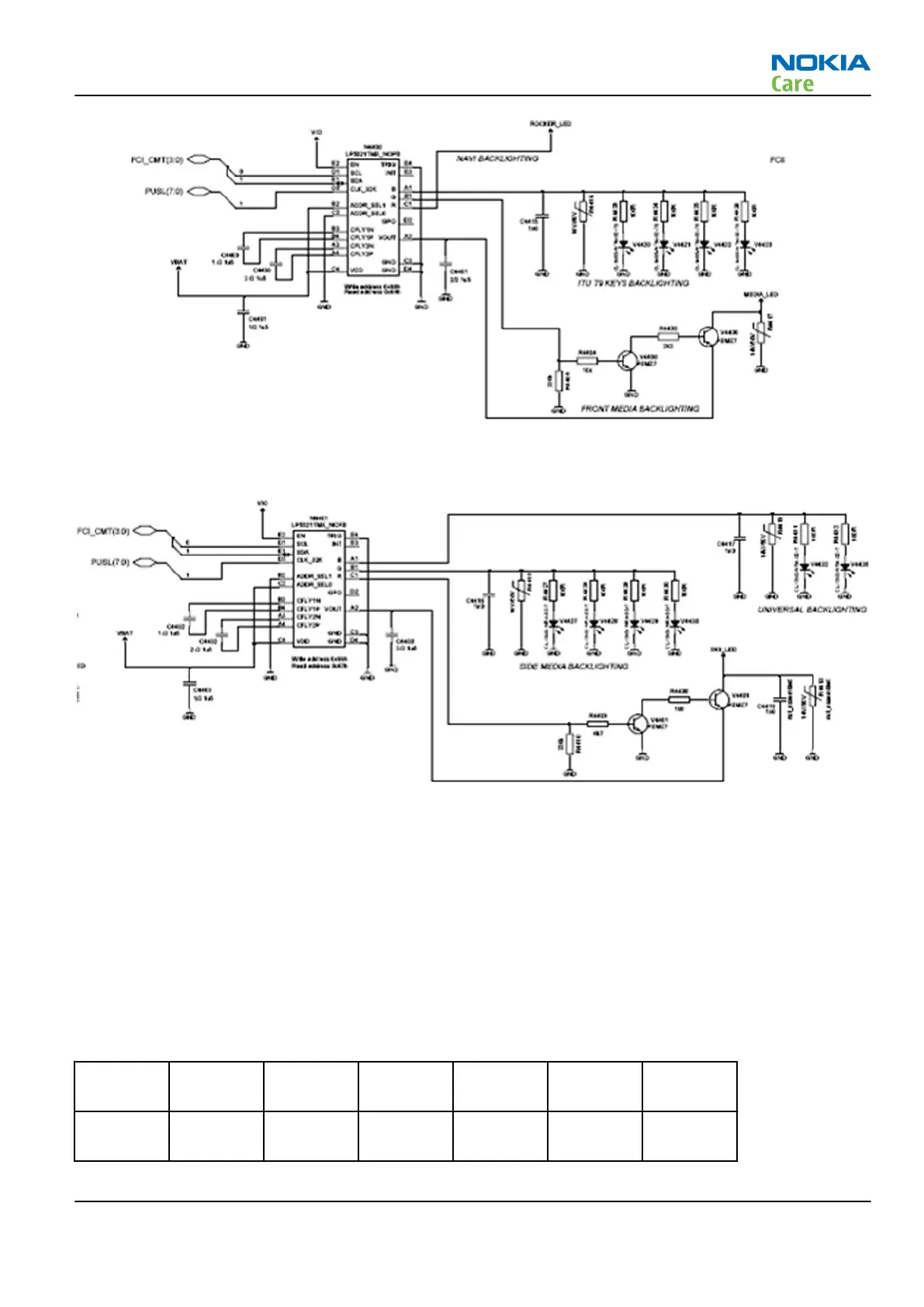

Figure 66 Backlight circuitry
Keyboard
The device has three separate keyboards:
S60 keyboard
ITU keyboard
Multimedia keyboard
The S60 keyboard and multimedia keyboard are assembled on the UI/slide module. If there’s failure on these
parts, whole module has to be replaced. ITU keyboard pads are placed directly on the system/RF module.
ITU keyboard is visible, when display is moved upwards. Keypads are on the system/RF module. System/RF
module includes also side keys (volume keys and 2-position camera key).
COL0:
GPIO106
COL1:
GPIO107
COL2:
GPIO109
COL3:
GPIO116
COL4:
GPIO108
COL5:
GPIO114
ROW0:
GPIO40 Up Left Vol. U. Vol. D. Appl Send
RM-247
System Module
Issue 1 COMPANY CONFIDENTIAL Page 7 –31
Copyright © 2008 Nokia. All rights reserved.
