Nokia N96 Service Manual

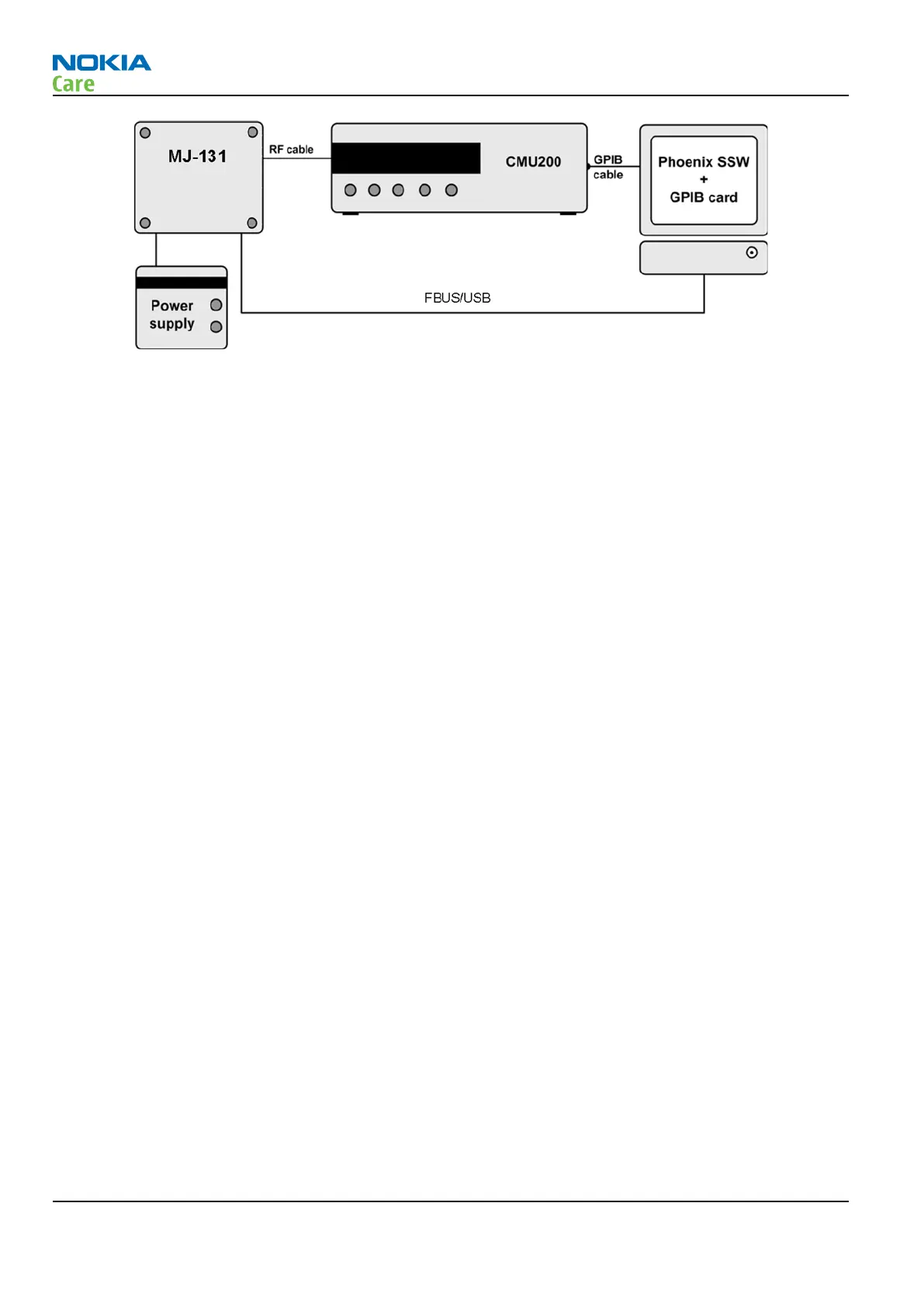

Figure 36 Test equipment setup for conductive test
The conducted test is divided into two sub-tests: the WLAN front-end test and the WLAN ASIC test. The
troubleshooting flow is shown in the Conducted WLAN troubleshooting flowchart, and test procedures and
flowcharts for two sub-tests are explained in different flowcharts in the following pages. The Front-end test
is performed to identify the defective components including the FEM, output filter and the diplexer in the
antenna matching circuit area.
RM-247
RF troubleshooting
Page 4 –22 COMPANY CONFIDENTIAL Issue 1
Copyright © 2008 Nokia. All rights reserved.

Nokia N96 Specifications

General

Panel type	TFT
Display diagonal	2.8 \
Display resolution	240 x 320 pixels
Display number of colors	16.78 million colors
Internal memory	16 MB
Front camera type	Single camera
Rear camera resolution	2592 x 1944 pixels
USB 2.0 ports quantity	1
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Audio formats supported	AAC, eAAC+, MP3, WMA
Image formats supported	EXIF
Ringer type	Polyphonic
Form factor	Slider
Product color	Gray
Talk time (2G)	150 h
Battery capacity	950 mAh
Standby time (2G)	200 h
Continuous audio playback time	14 h
Continuous video playback time	5 h
2G standards	HSCSD
Data network	wcdma
Bluetooth version	2.0+EDR

Weight and Dimensions

Depth	20 mm
Width	55 mm
Height	103 mm
Weight	125 g
