Nordson ColorMax Customer Product Manual

Description
2-13
Part 1108061-02
E 2015 Nordson Corporation
Powder Feed Center Control Panel
Refer to the Spectrum Powder Feed Center manual 1103292 for more
information on both powder feed center and system operation.>>> 2 <<<

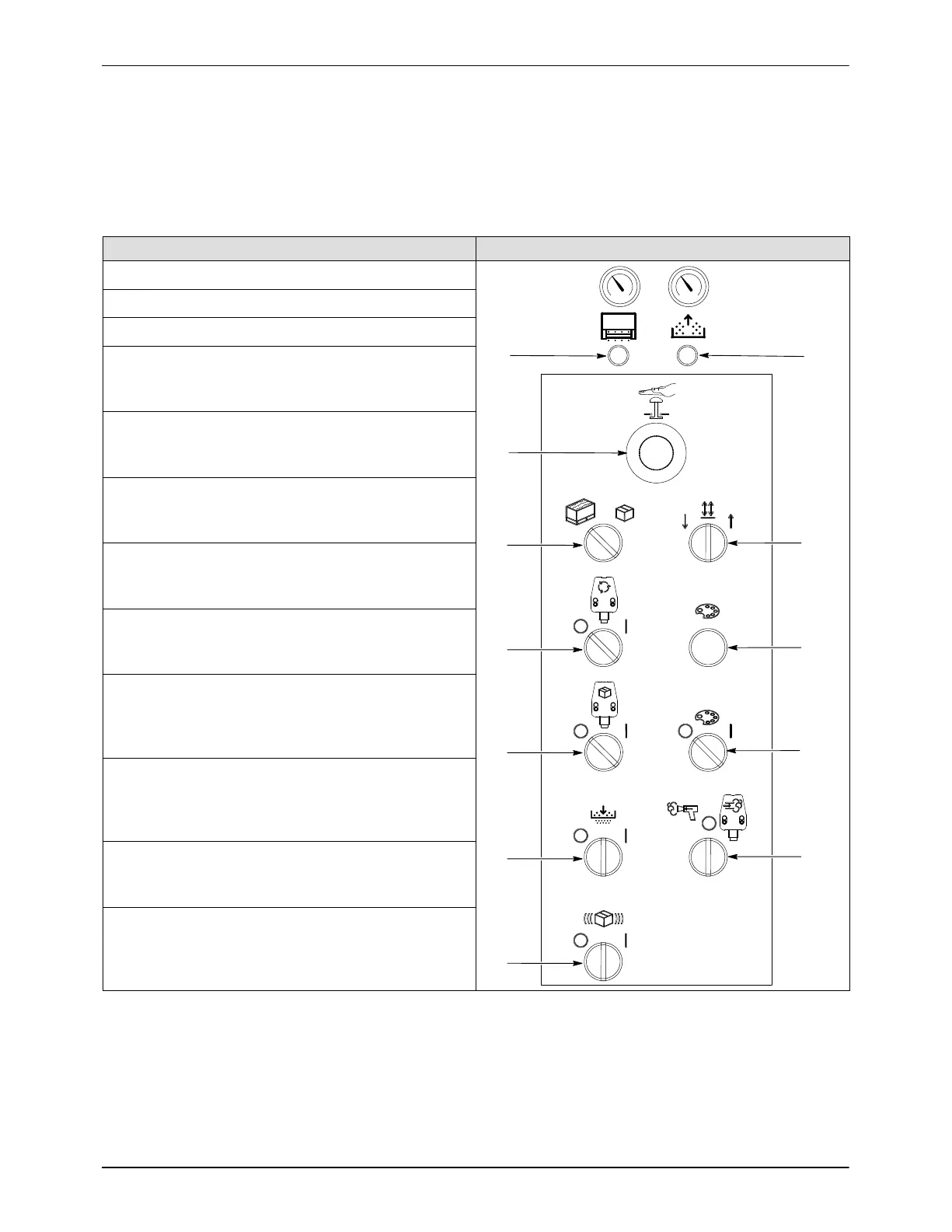

Table 2-8 Powder Feed Center Control Panel
Control Feed Center Control Panel
1. Lance Fluidizing Air Pressure
3
4
5
6
7
8
12
11
10
9
1
2
2. Feed Hopper Fluidizing Air Pressure
3. Emergency Stop
4. Powder Source Switch
Left: Hopper
Right: Box
5. Reclaim Powder Pump Switch
Left: Off
Right: On
6. Virgin Powder Pump Switch
Left: Off
Right: On
7. Sieve Switch
Left: Off
Right: On
8. Vibratory Table Switch
Left: Off
Right: On
9. Lance Control Switch
Left: Down
Center: Neutral (stop)
Right: Up
10. Color Change Indicator Light (Green)
Off: Disable
Blinking: In cycle
On: Complete
11. Color Change Enable Switch
Left: Off
Right: On
12. Purge Control Switch
Left: Internal Gun Purge
Center: Off
Right: Pump Purge
