Manual Motor Control
Touch the Manual Motors button on the Control Menu to access this
screen:

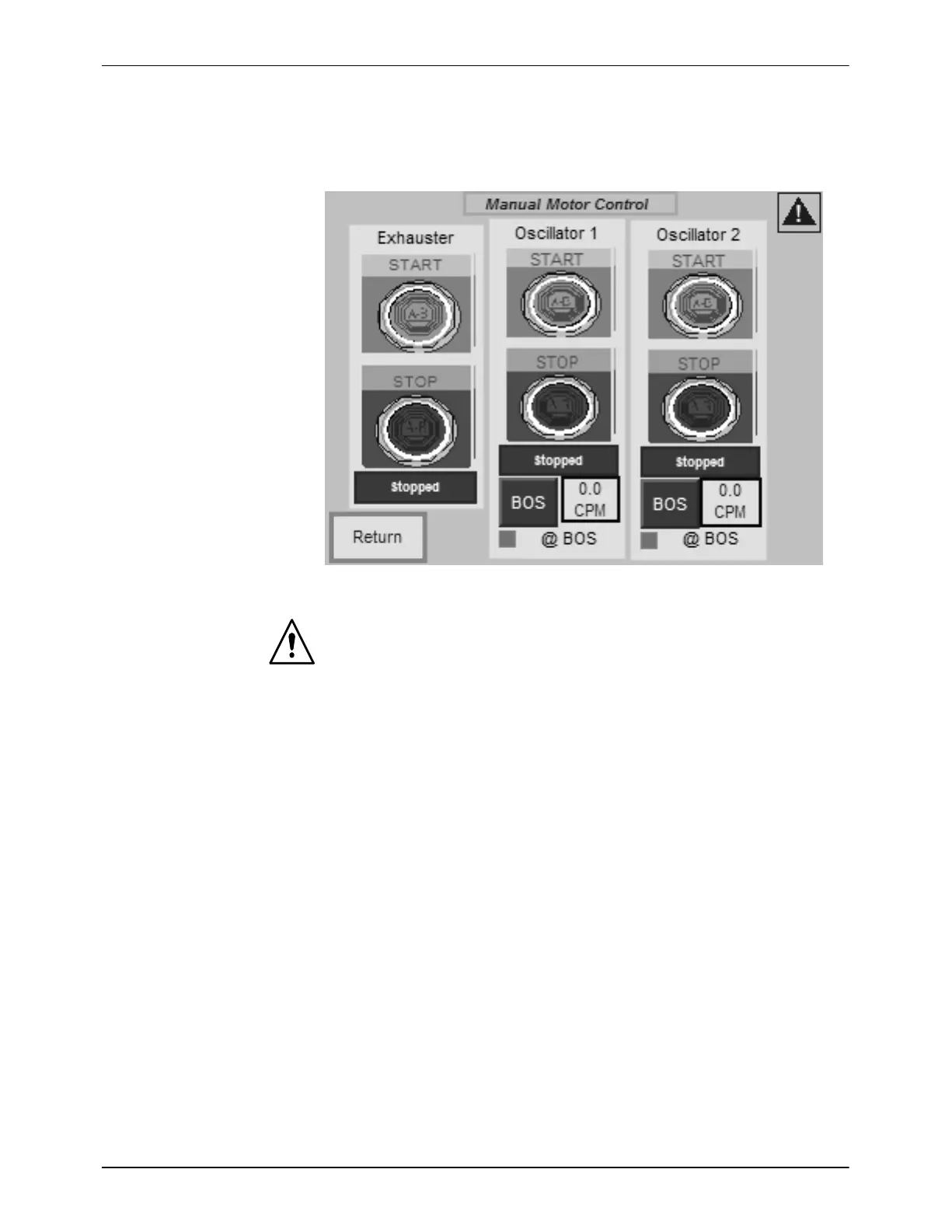

Figure 4-5 Manual Motor Control − Operator Screens and Functions
WARNING: Make sure that all personnel are clear of the afterfilter and gun
movers before starting them.
Exhauster:
S Start/Stop − Starts and stops the exhauster (fan motor in the afterfilter).
NOTE: These buttons will not appear on the screen if the Remote AF
Exhauster Start/Stop function is not enabled by your Nordson
representative. If these buttons are not present, the exhauster must be
started and stopped from the afterfilter control panel.
Oscillators/Reciprocators:
S Start/Stop − Starts and stops the oscillators or reciprocators, if
configured.
S X.X CPM − Indicates the number of Cycles Per Minute for each
oscillator or reciprocator.
S BOS − Stops the machine at the bottom of its stroke.
S @ BOS − Lights when the machine is at the bottom of stroke.
