Operation
4-7
Part 1108061-02
E 2015 Nordson Corporation
7. Guns Blowoff On From GNMV: Signal received from gun mover
control panel that the gun blow-off has started. When the blow-off is
complete the External Gun Purge Done indicator appears. The
automatic portion of the color change process is complete.
At this point the booth can be entered and cleaned, the transfer pumps
purged, and the feed center lances, sieve, and interior cleaned. Refer to
Color Change Procedure in this section for complete instructions.
Alarm Acknowledge/Clear

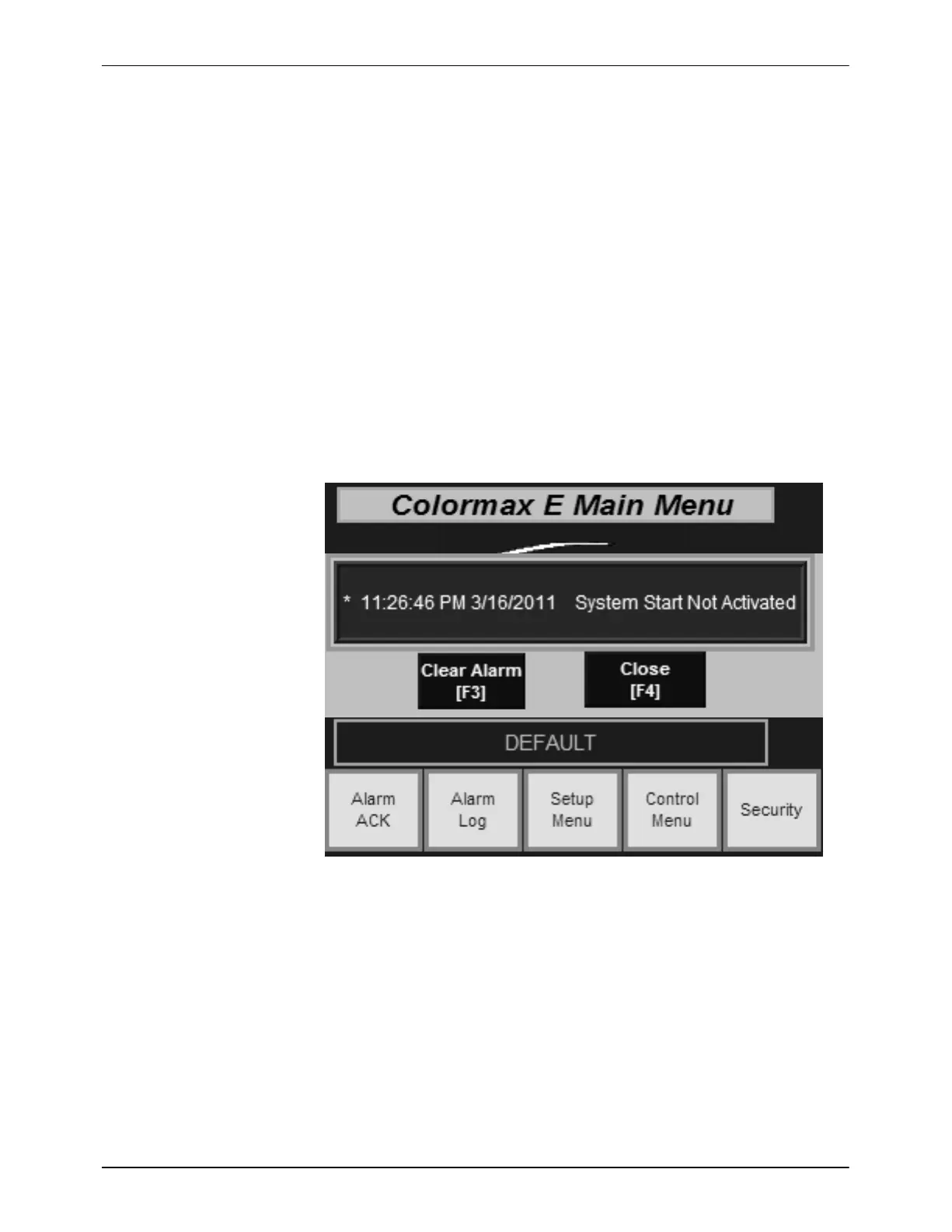

See Figure 4-7. If an alarm is generated by a system device, an alarm
pop-up appears on the screen. Touching the Alarm Ack button silences the
alarm. >>> 4 <<<
Correct the cause of the alarm, then clear it by touching the Clear Alarm
button on the pop-up. If the cause of the alarm has not been corrected, the
alarm will re-occur. Clearing the alarm does not remove it from the Alarm
Log.
Figure 4-7 Main Menu with Alarm Pop-Up − Operator Screens and Functions
