Blowoff Output Tests
Touch the Test Outputs button on the Special Functions Menu to open
the Blowoff Output Test screen.
Touch the output buttons to energize the solenoids and open the valves.
Use this screen to troubleshoot the blow-off outputs and solenoids. The
screen shown is for the 7.5 and 9 meter booths (floor blowoff outputs 5−8).

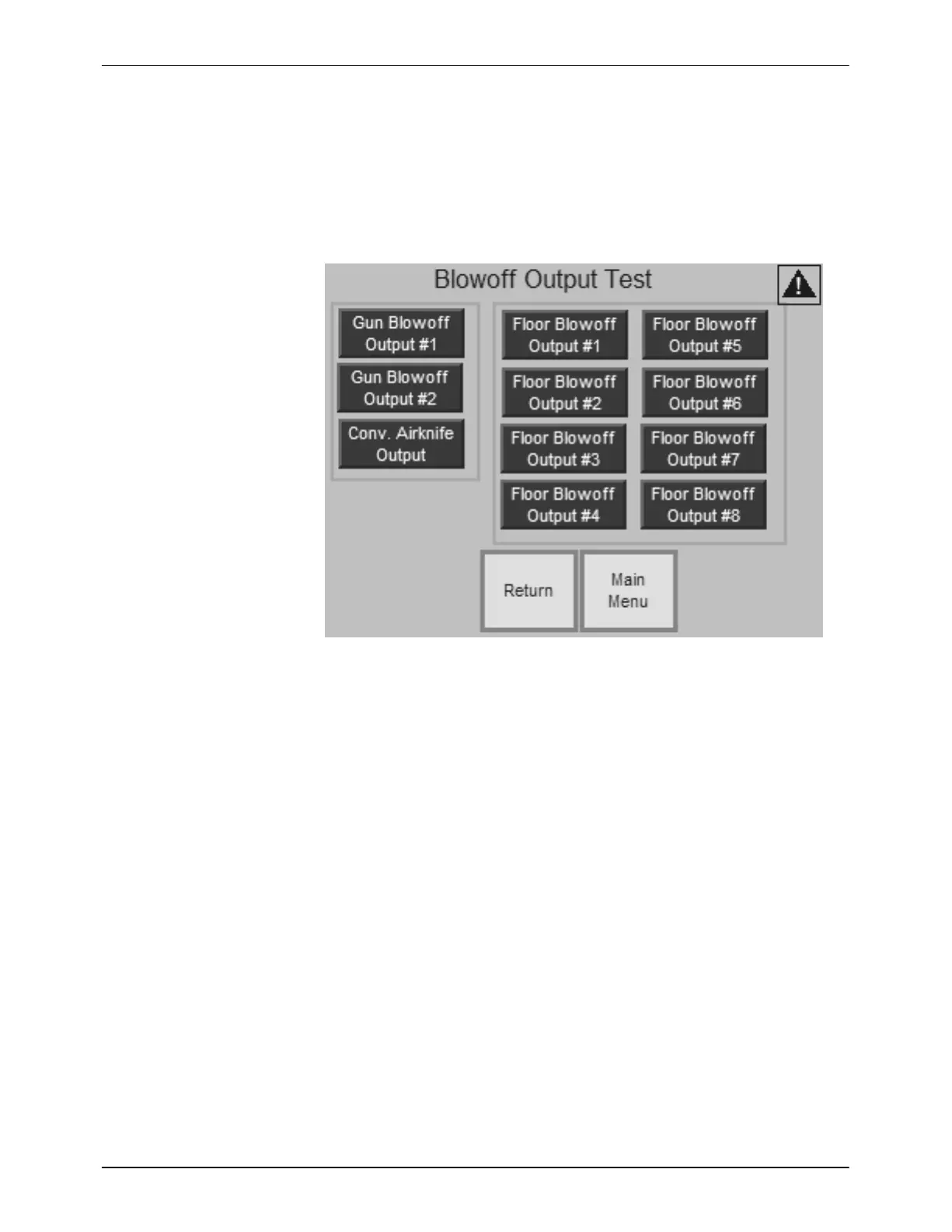

Figure 3-11 Blowoff Output Test Screen − Nordson Screens and Functions
Alarm Acknowledge/Clear
See Figure 3-12. If an alarm is generated by a system device, an alarm
pop-up appears on the screen. Touching the Clear Alarm button closes the
pop-up.
Correct the cause of the alarm before proceeding. If the cause of the alarm
has not been corrected, the alarm will re-occur. Clearing the alarm does not
remove it from the Alarm Log.
