1.1.8 Strain Relief
Strain relief for wiring attached to the NCS wire terminals on the MIB-W is provided by a
protective cover (P/N 08275). The protective cover is supplied with the MIB-W.
The following steps must be completed to connect the protective cover with strain relief:
3. Feed wires to be connected to the terminal block through the back or side access hole of the
protective cover. The hinged covers of the unused access hole can be closed.
4. Attach the wires to the pluggable terminal block.
5. Snap the strain relief assembly over the pluggable terminal block. Use tie wrap to secure the
wires to the protective cover (refer to Figure 1.8).

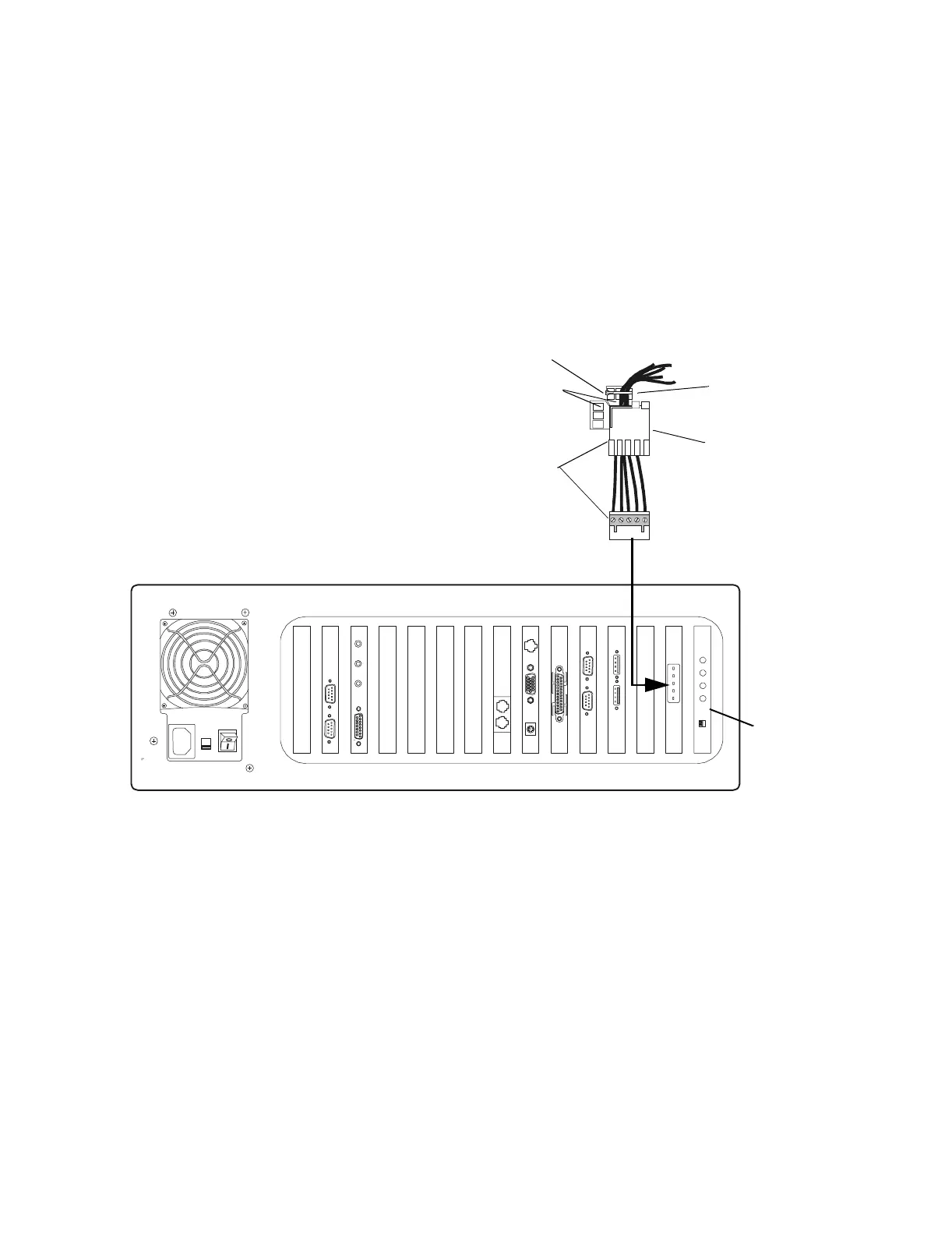

Figure 1.8 Strain Relief Assembly
Wiring Access Holes and
Hinged Covers
Tie Wrap Around Wire and
Hinged Cover
Cable Restraint
(add after assembly)
Protective Cover
(P/N 08275)
Strain Relief Assembly
(snaps over pluggable terminal block)
