The Graphic Setup Program Device Icons
70 NCS Manual PN 51095:B1 3/08/02

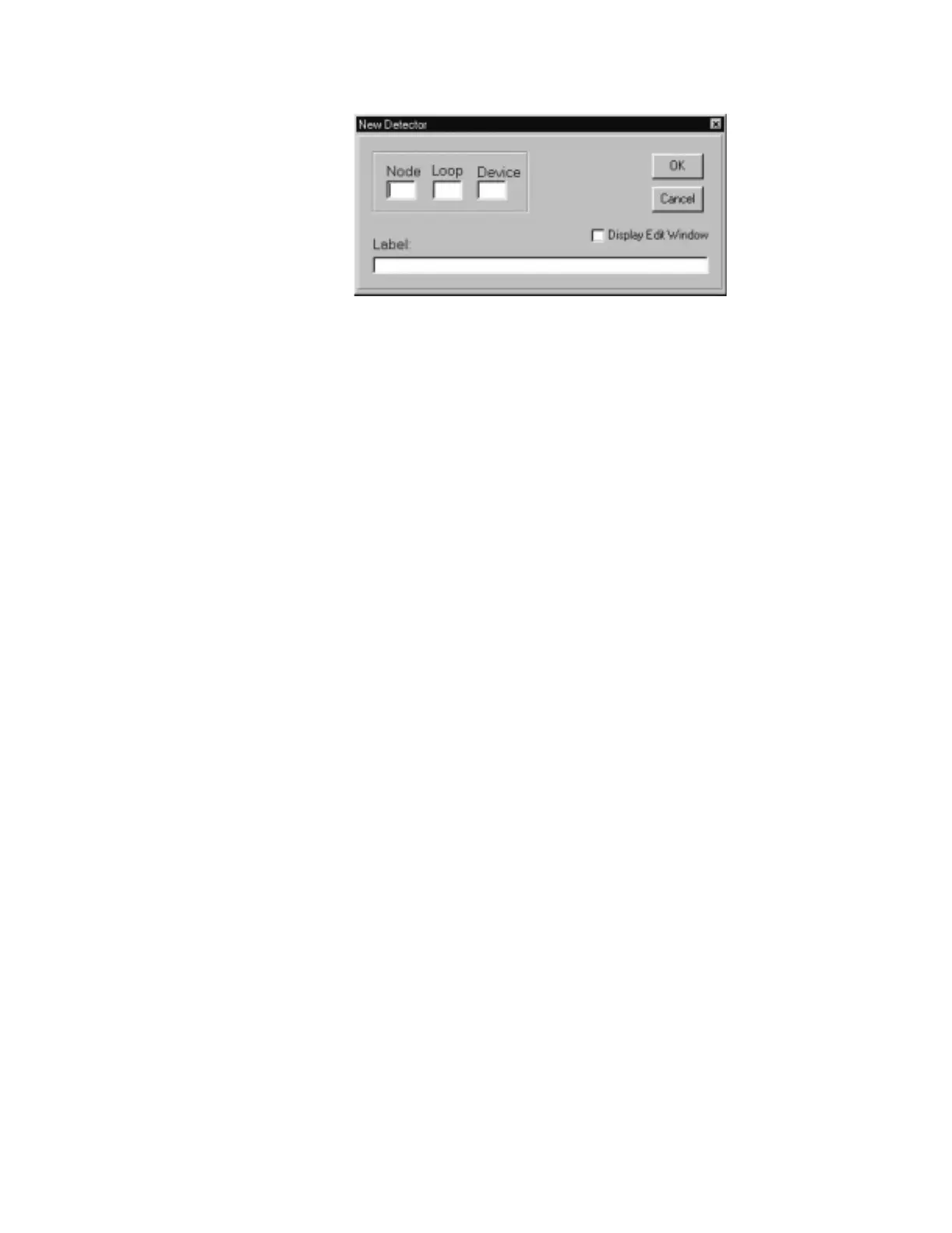

Figure 5.30 New Detector Dialog Box
The active icon will blink during an active condition, and steady when acknowledged. Once the
point returns to normal, the normal bitmap is displayed. The trouble, disabled device and pre-alarm
icons also operate the same way.
5.5.2 Detectors
Detectors have other symbols associated with them; an active icon, a trouble icon, a disabled
device icon and a pre-alarm icon. The appropriate icon will be displayed for an event, the device
label blinks if an event is unacknowledged, and is steady if the event is acknowledged.
5.5.3 Modules
Modules show an active, trouble and disabled device symbol. If the module can be disabled from
the NCS, the Disable Device option must be chosen. If the module is an output module, and can be
activated from the NCS, then the Control On/Off option must be chosen.
5.5.4 Zones
A zone shows an active and disabled device symbol.
5.5.5 Linked Files
Sound, document and picture files can be linked with a device. To access these files through the
NCS software, the files must be in specific directories on the PC.
• Pictures (scanned photos) must be in the {install}\Pictures directory.
• Text files (instructions etc.) must be in the {install}\docs directory.
• Sound files (verbal instructions or warnings) must be in {install}\Sounds directory.
These files can also be manually activated by the operator.
5.5.6 Information Labels
Information labels are bitmaps that can be added to a floor plan for additional information. These
labels are generally symbols representing biohazard, flammable or other important information,
refer to Figure 5.31. Information labels do not receive information regarding alarms and troubles
from the system from the system.
