The History Manager NCS Integrated Operation
56 NCS Manual PN 51095:B1 3/08/02

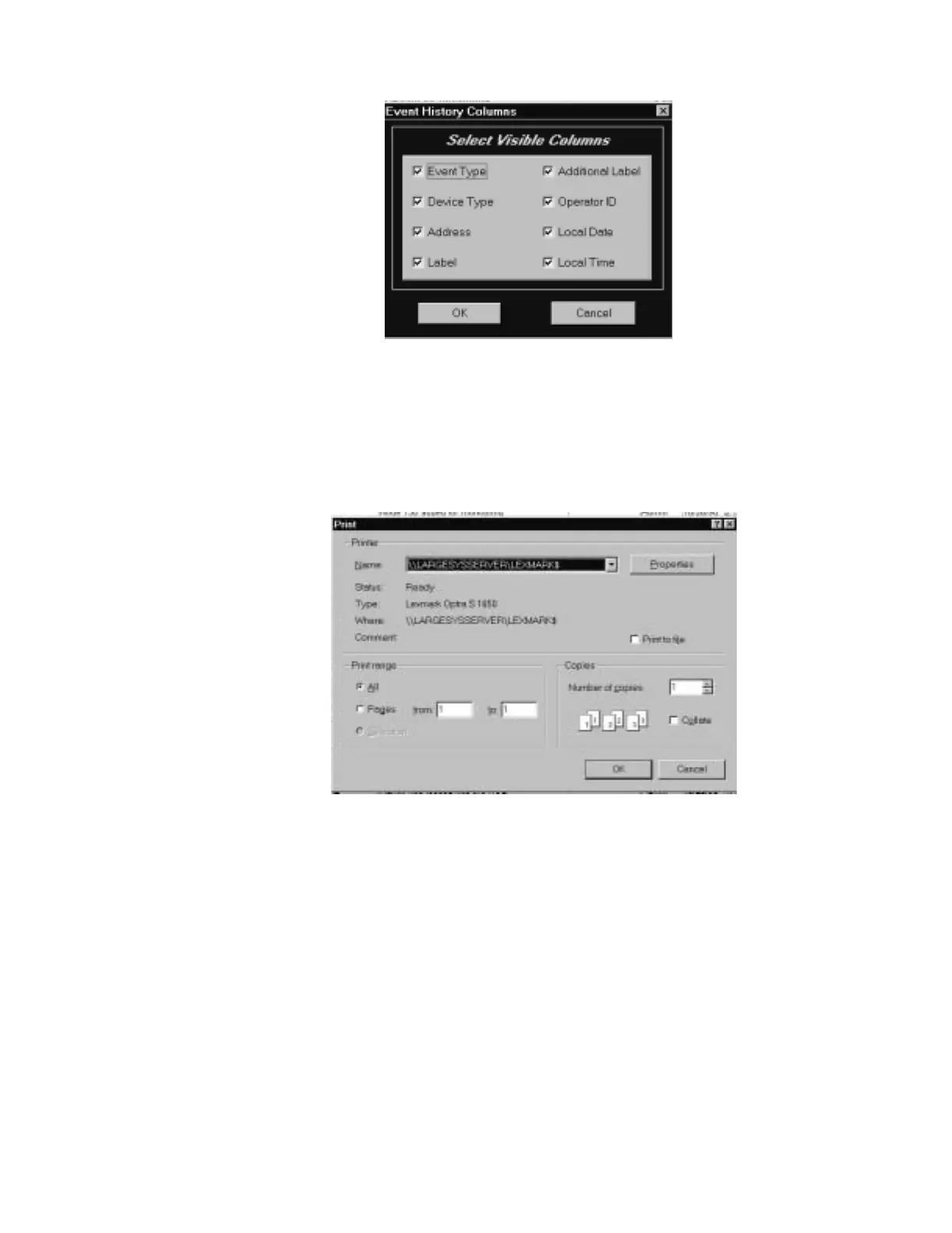

Figure 4.9 Select Visible Columns Dialog Box
Printing
The current history database, or any stored database, can be printed to the NCS Graphics printer
connected to the NCS. The Print command located under the File menu invokes the common
printer dialog box, (refer to Figure 4.10) enabling the selection of a printer. The printout consists of
the information shown in the history manager. Columns that are not visible, will not print out. If a
custom filter has been selected, only the events that are a part of the filter will be printed.
Figure 4.10 Print Dialog Box
4.1.1 History Backup
The history buffer may contain an unlimited number of entries. However, once the number reaches
100,000 events, a dialog box will be displayed. The dialog box will instruct the user to open a new
database and archive the current database.
The operator has the ability to archive the current database for backup, and thereby create a new,
blank history buffer. This is done directly through the NCS, by using the Archive History
command under the Administration menu. This command opens a dialog box to save the current
history database, with a .his extension (see Figure 4.11)
viscolm.tif
hisprint.tif
