Read Status/Program Operation
NCS Manual PN 51095:B1 3/08/02 47
3.6 Read Status/Program
The Read Status feature of the NCS allows the operator to display the status of nodes or devices
communicating on and programmed into the NOTI•FIRE•NET
™
. Only AM2020/AFP1010 and
AFP-400 devices are supported for read status operations in this software release.
Detectors
To perform Read Status on a detector in the system, select the node the detector is connected to
from the Select System dialog box. Select OK. A node dialog box appears. Select the Detector tab.
Enter the address of the detector that is desired to perform Read Status. Select Program. The
Detector dialog box appears. This dialog box displays the current programming for the detector,
the verification counter, percentage of alarm, and whether the detector is in alarm, trouble, or
disabled (refer to Figure 3.20).

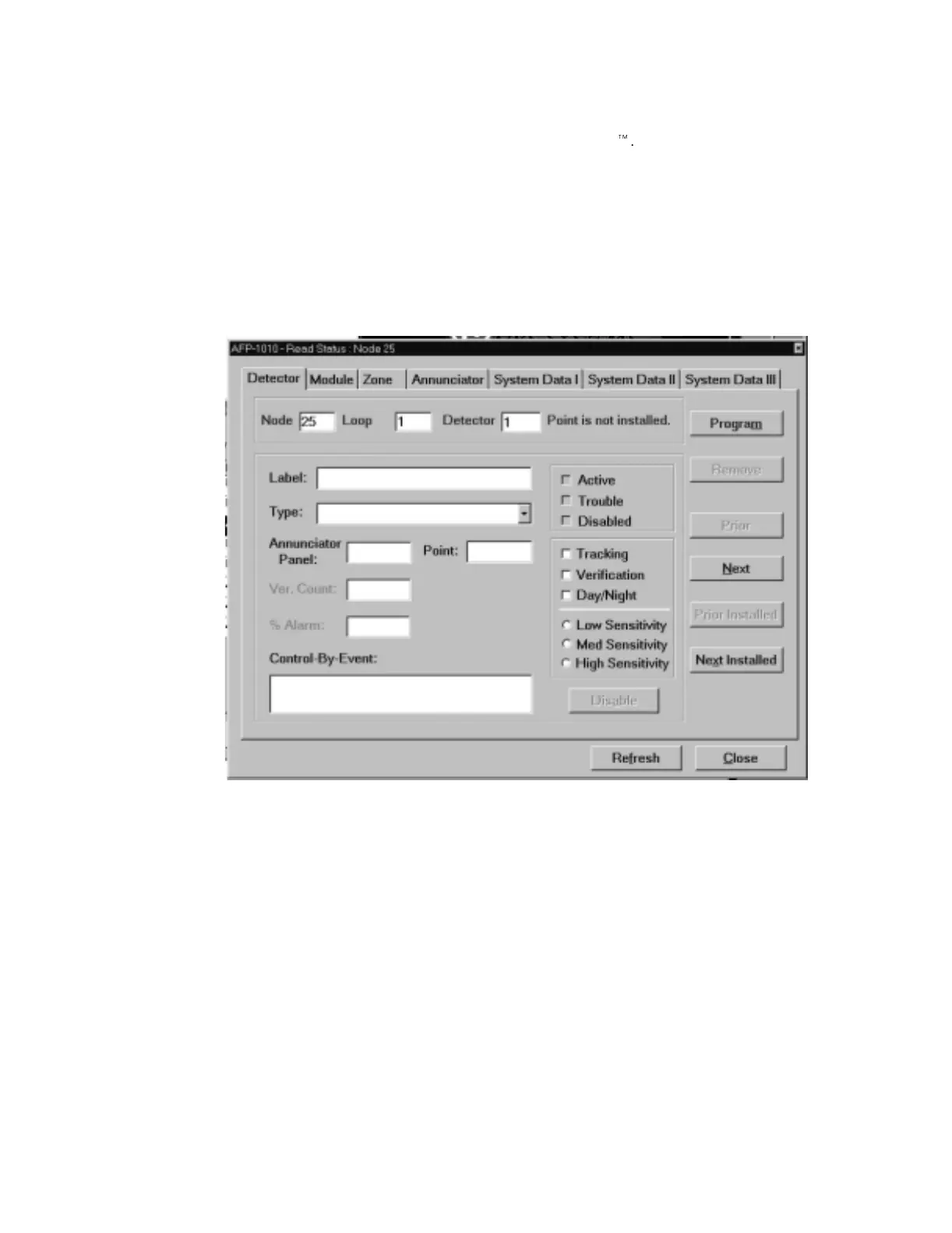

Figure 3.20 Detector Read Status
Control and Monitor Modules
To perform Read Status on a module in the system, select the node the module is connected to from
the Select System dialog box. Select OK. A node dialog box will appear. Select the Module tab.
Enter the address of the module desired to perform Read Status. Select Program. The Module
dialog box will appear. This dialog box displays the current programming for the module and
whether the module is in alarm, trouble, or disabled (refer to Figure 3.21).
