Operation Read Status/Program
48 NCS Manual PN 51095:B1 3/08/02

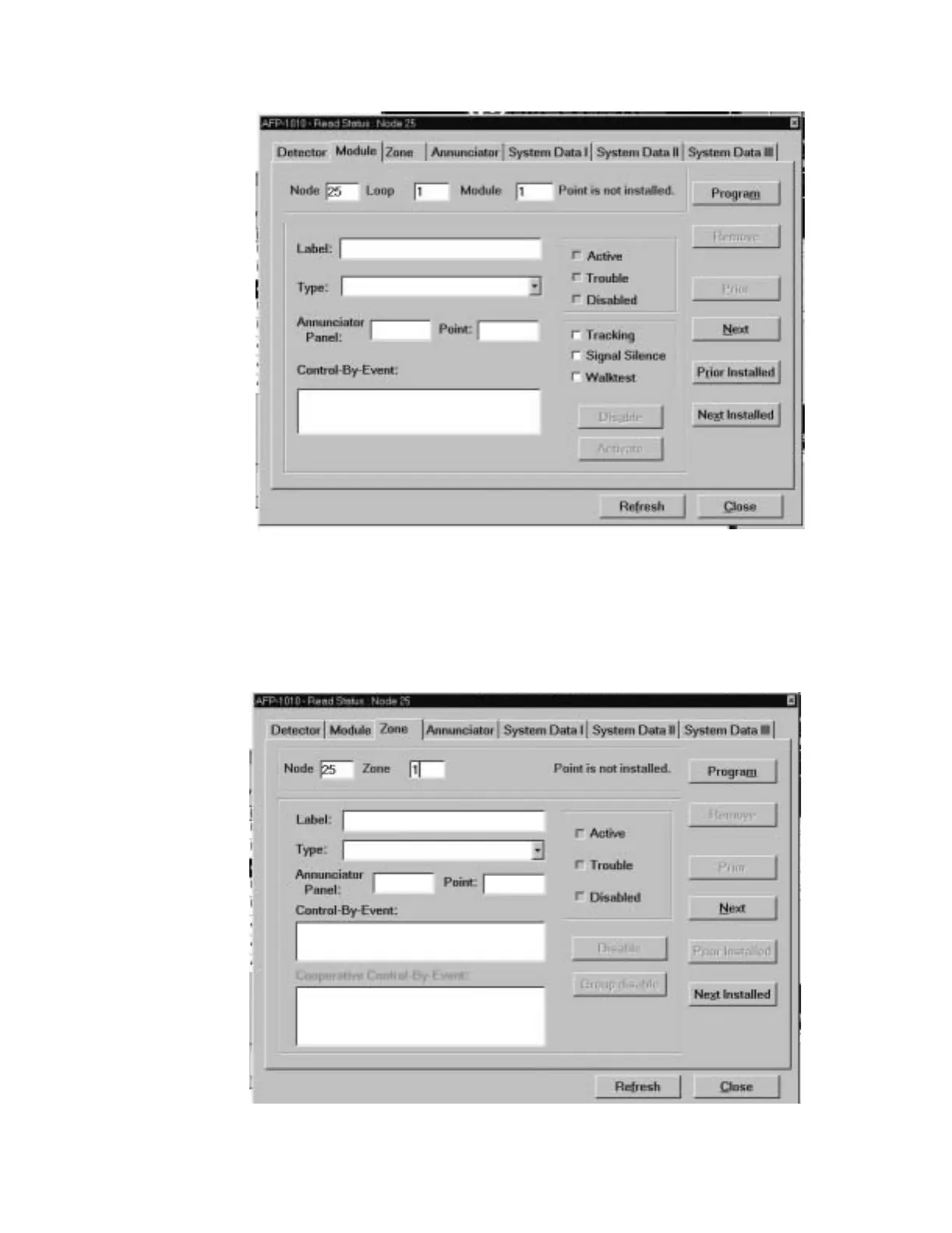

Figure 3.21 Monitor Module read Status
Zones
To perform Read Status on an AM2020/AFP1010 zone in the system, select the node the zone is
connected to from the Select System dialog box. Select OK. A node dialog box appears. Select
the Zone tab. Enter the zone number desired to perform Read Status. Select Program. The Zone
dialog box will appear. This dialog box displays the current programming for the zone and whether
the zone is in alarm, trouble, or is disabled (refer to Figure 3.22).
Figure 3.22 Zone Read Status
Annunciator Points
