Notifier NCS

Read Status/Program Operation
NCS Manual PN 51095:B1 3/08/02 49
To perform Read Status on an annunciator point, select the Annunciator tab from the Node dialog
box. Enter the address of the point desired to perform Read Status. Select Program. The
Annunciator Point dialog box displays. This dialog box shows the type of annunciator point and
whether it is in Alarm, Trouble, or Off (refer to Figure 3.23).

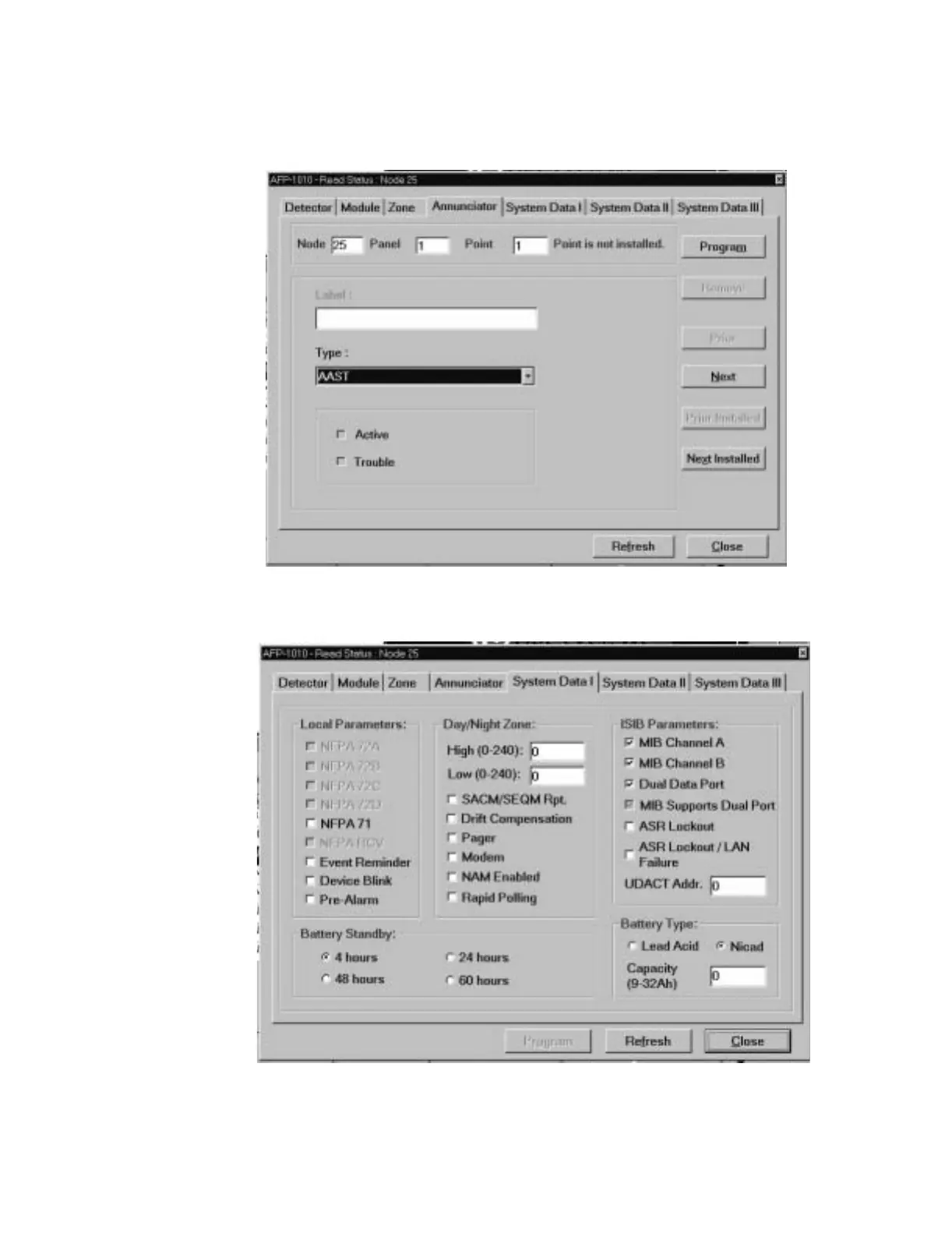

Figure 3.23 Annunciator Point Read Status
System Data I
Figure 3.24 System Data I Point Read Status
System Data II
