The Graphic Setup Program Keymap Area
66 NCS Manual PN 51095:B1 3/08/02
5.3 Keymap Area
Keymaps are bitmaps which are created and assigned during the new screen process. The bitmaps
measure 327 X 167 pixels. Keymaps are displayed above the floor plan on the Main NCS screen.
The Keymap acts as an overview for the floor plan it belongs to. Every floor plan must have a
keymap assigned to it, although the same Keymap may be assigned to different screens. Keymaps
can be customized through Paint Shop Pro. If a keymap link has been created, double-click the
keymap while in the NCS to bring up the associated screen.
5.4 Menu Bar Options
5.4.1 File

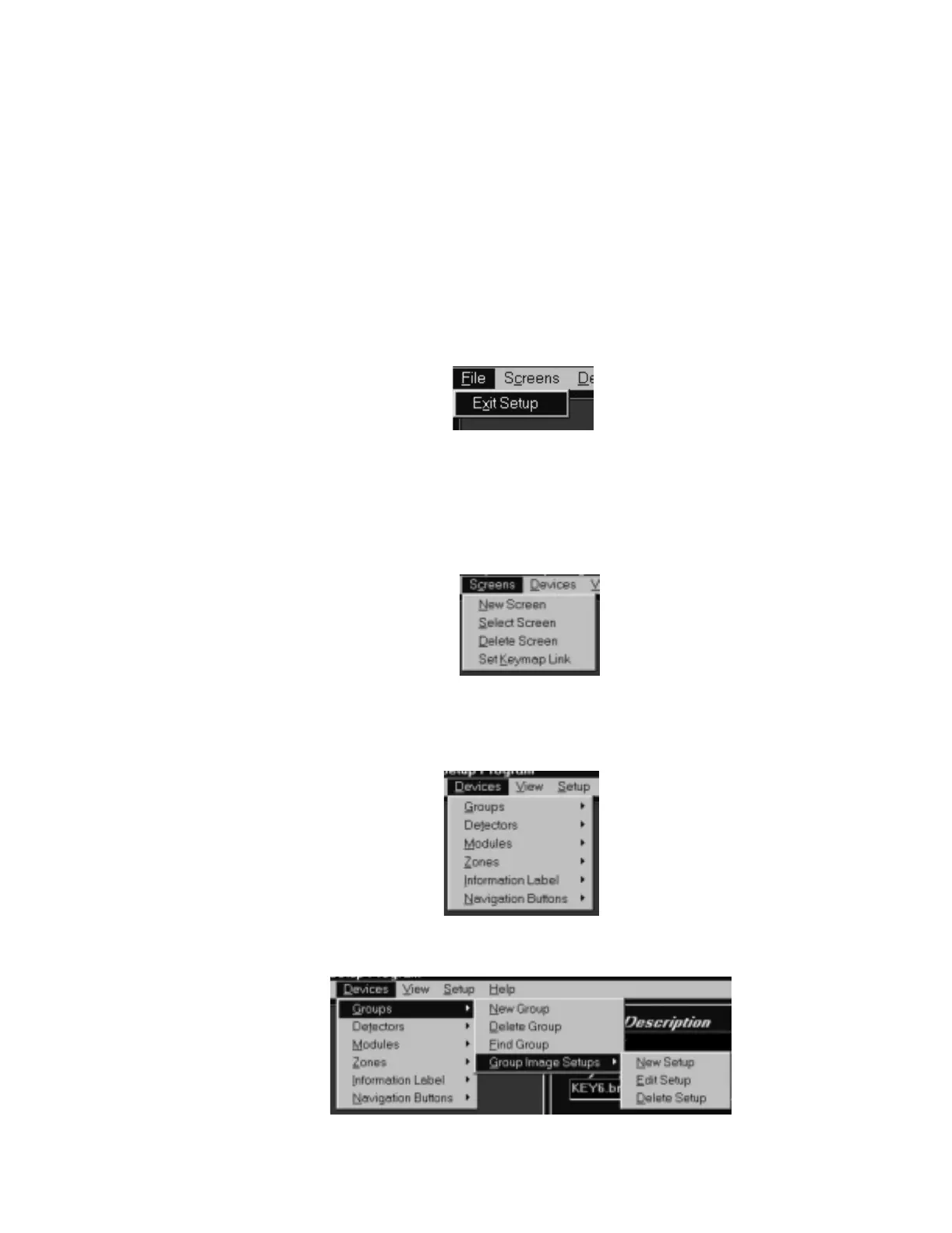

Select Exit Setup to close the Graphic Setup Program and return to the NCS, see Figure 5.16.
Figure 5.16 The File Menu
5.4.2 Screens
Under the Screens menu option, the user can create a new graphic screen, select a previous graphic
screen, delete a graphic screen or set a keymap link to a graphic screen, see Figure 5.17.
Figure 5.17 The Screens Menu
5.4.3 Devices
Figure 5.18 The Devices Menu
Figure 5.19 Groups
