NCS Integrated Operation The History Manager
NCS Manual PN 51095:B1 3/08/02 55

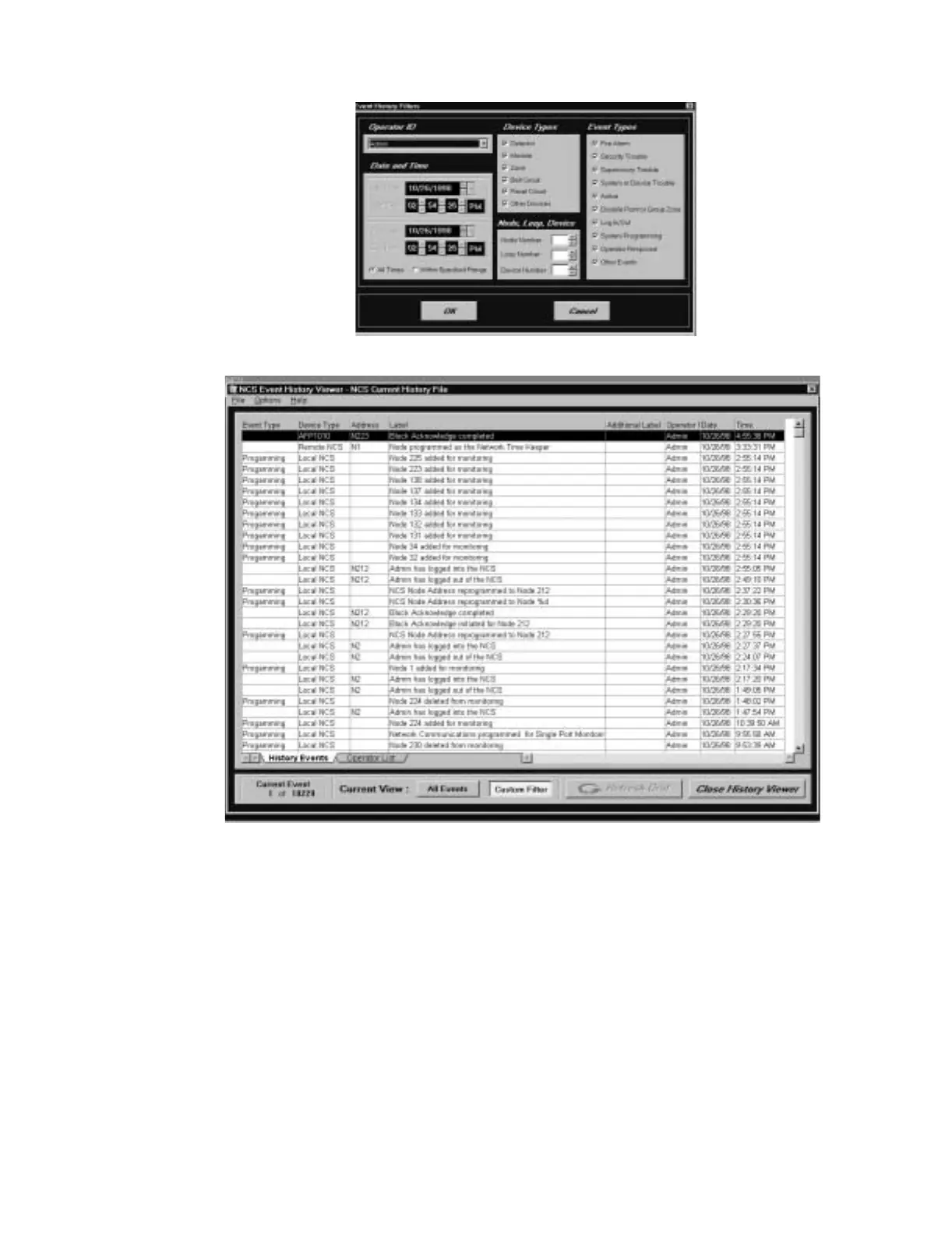

Figure 4.7 Example of a Search Dialog Box
Figure 4.8 Example of a Search of Administration Logins Only
If the user selects a custom filter view, the History Manager will indicate this by highlighting the
“Custom Filter” button. Refer to Figure 4.8. If the user doesn’t have any custom filters applied, the
“All Events” view will be displayed, and the "All Events" button will be highlighted. Pushing
either button will bring up the associated screen.
Visible columns
This command displays a window with all column types that can be shown in the History Manager.
A column can be selected or deselected, thereby hiding it from view. Each column can be resized
enabling the user to decide which columns they want to be shown, and the size of each column,
refer to Figure 4.9. These options are stored in the registry and invoked every time the History
Manager is powered up.
custfilt.tif
custadmn.tif
