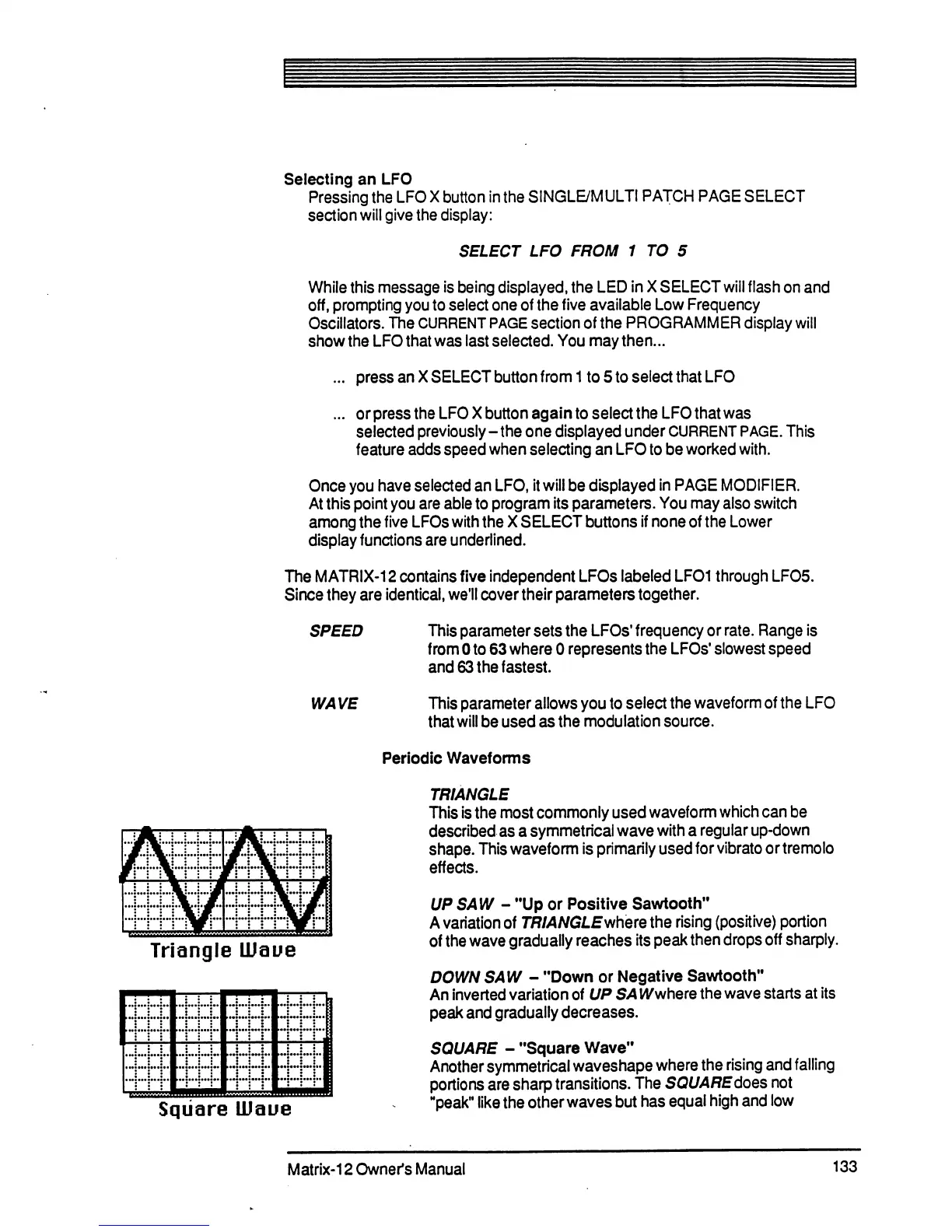

Selecting
an
LFO
Pressing
the
LFO
X
button
in
the
SINGLE/MULTI
PATCH
PAGE
SELECT
section
will
give
the
display:
SELECT
LFO
FROM
1
TO
5
While
this
message
is
being
displayed,
the
LED
in
X
SELECT
will
flash
on
and
off,
prompting
you
to
select
one
of
the
five
available
Low
Frequency
Oscillators.
The
CURRENT
PAGE
section
of
the
PROGRAMMER
display
will
show
the
LFO
that
was
last
selected.
You
may
then...
...
press
an
X
SELECT
button
from
1
to
5
to
select
that
LFO
...
or
press
the
LFO
X
button
again
to
select
the
LFO
that
was
selected
previously-the
one
displayed
under
CURRENT
PAGE.
This
feature
adds
speed
when
selecting
an
LFO
to
be
worked
with.
Once
you
have
selected
an
LFO,
it
will
be
displayed
in
PAGE
MODIFIER.
At
this
point
you
are able
to
program
its
parameters.
You
may
also
switch
among
the
five
LFOs
with
the
X
SELECT
buttons
if
none
of
the
Lower
display
functions are
underlined.
The
M
ATRIX-12
contains
five
independent
LFOs
labeled
LFO1
through
LFO5.
Since
they
are
identical,
we'll
cover
their
parameters
together.
SPEED
WAVE
Triangle
UJaue
Square
LUaue
This
parameter
sets
the
LFOs1
frequency
or
rate.
Range
is
from
0
to
63
where
0
represents
the
LFOs1
slowest
speed
and
63
the
fastest.
This
parameter
allows
you
to
select
the
waveform
of
the
LFO
that
will
be
used
as
the
modulation
source.
Periodic
Waveforms
TRIANGLE
This
is
the
most
commonly
used
waveform
which
can
be
described
as
a
symmetrical
wave
with
a
regular
up-down
shape.
This
waveform
is
primarily
used
for
vibrato
or
tremolo
effects.
UP
SAW
-
"Up
or
Positive
Sawtooth"
A
variation
of
TRIANGLE
where
the
rising
(positive)
portion
of
the
wave
gradually
reaches
its
peak
then
drops
off
sharply.
DOWN
SAW
-
"Down
or
Negative
Sawtooth"
An
inverted
variation
of
UP
SAWwhere
the
wave
starts at
its
peak
and
gradually
decreases.
SQUARE
-
"Square
Wave"
Another
symmetrical
waveshape
where
the
rising
and
falling
portions
are
sharp
transitions.
The
SQUARE
does
not
Mpeaktf
like
the
other
waves
but
has
equal
high
and
low
Matrix-12
Owner's
Manual
133
