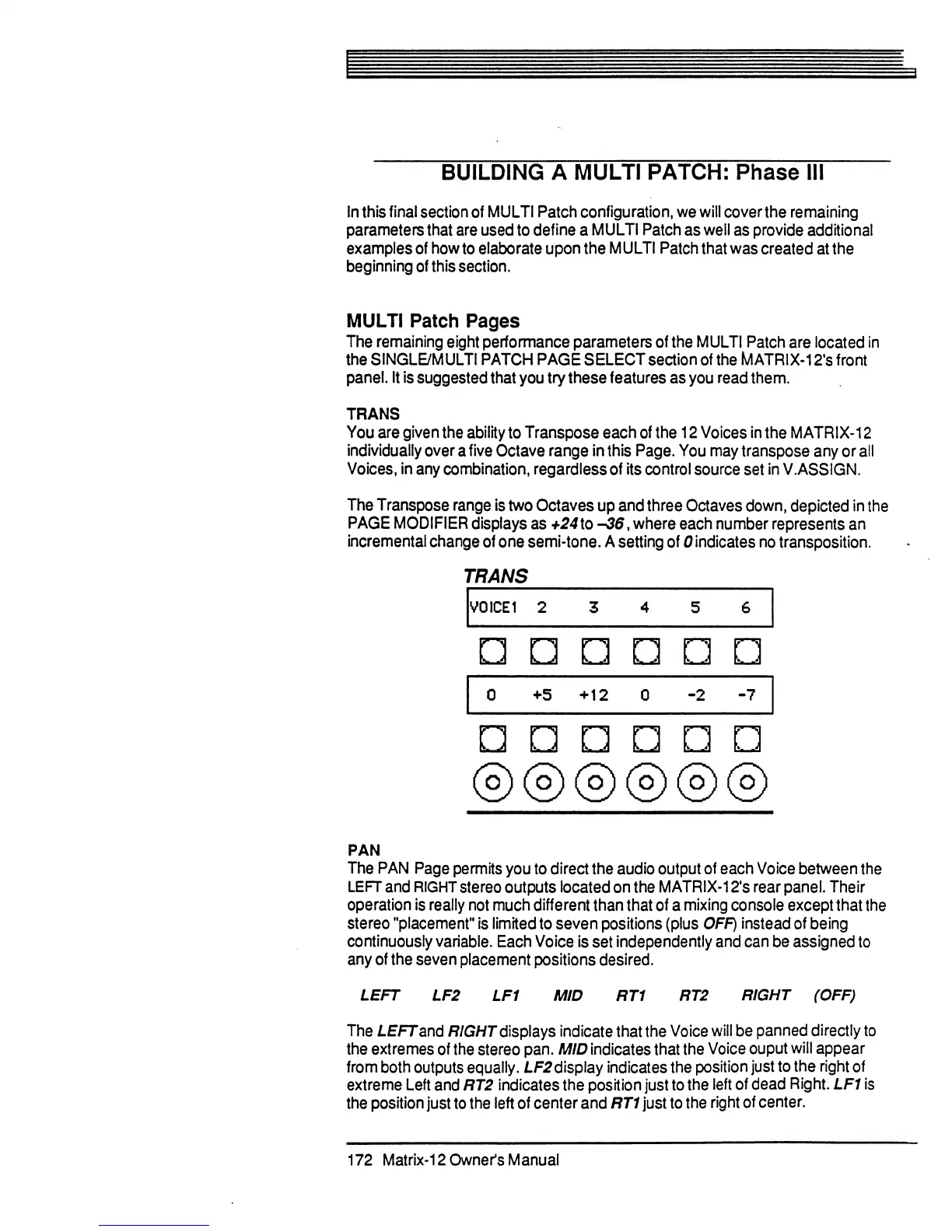

BUILDING
A
MULTI
PATCH:
Phase
III
In
this
final
section
of
MULTI
Patch
configuration,
we
will
coverthe
remaining
parameters
that
are
used
to
define
a
MULTI
Patch
as
well
as
provide
additional
examples
of
how
to
elaborate
upon
the
MULTI
Patch
that
was
created
at
the
beginning
of
this
section.
MULTI
Patch
Pages
The
remaining
eight
performance
parameters
of
the
MULTI
Patch
are
located
in
the
SINGLE/MULTI
PATCH
PAGE
SELECT
section
of
the
MATRIX-12's
front
panel.
It
is
suggested
that
you
try
these
features
as
you
read
them.
TRANS
You
are
given
the
ability
to
Transpose
each
of
the
12
Voices
in
the
MATRIX-12
individually
over
a
five
Octave
range
in
this
Page.
You
may
transpose
any
or
all
Voices,
in
any
combination,
regardless
of
its
control
source
set
in
V.ASSIGN.
The
Transpose
range
is
two
Octaves
up
and
three
Octaves
down,
depicted
in
the
PAGE
MODIFIER
displays
as
+24to
-35,
where
each
number
represents
an
incremental
change
of
one
semi-tone.
A
setting
of
0
indicates
no
transposition.
TRANS
V0ICE1
2
+5
+12
-2 -7
PAN
The
PAN
Page
permits
you
to
direct
the
audio
output
of
each
Voice
between
the
LEFT
and
RIGHT
stereo
outputs
located
on
the
MATRIX-12's
rear
panel.
Their
operation
is
really
not
much
different
than
that
of
a
mixing
console
except
that
the
stereo
"placement"
is
limited
to
seven
positions
(plus
OFF)
instead
of
being
continuously
variable.
Each
Voice
is
set
independently
and
can
be
assigned
to
any
of
the
seven
placement
positions
desired.
LEFT
LF2
LF1
MID
RT1
RT2
RIGHT
(OFF)
The
LEFTand
RIGHT
displays
indicate
that
the
Voice
will
be
panned
directly
to
the
extremes
of
the
stereo
pan.
MID
indicates
that
the
Voice
ouput
will
appear
from
both
outputs
equally.
LF2display
indicates
the
position
just
to
the
right
of
extreme
Left
and
RT2
indicates
the
position
just
to
the
left
of
dead
Right.
LF1
is
the
position
just
to
the
left
of
center
and
RT1
just
to
the
right
of
center.
172
