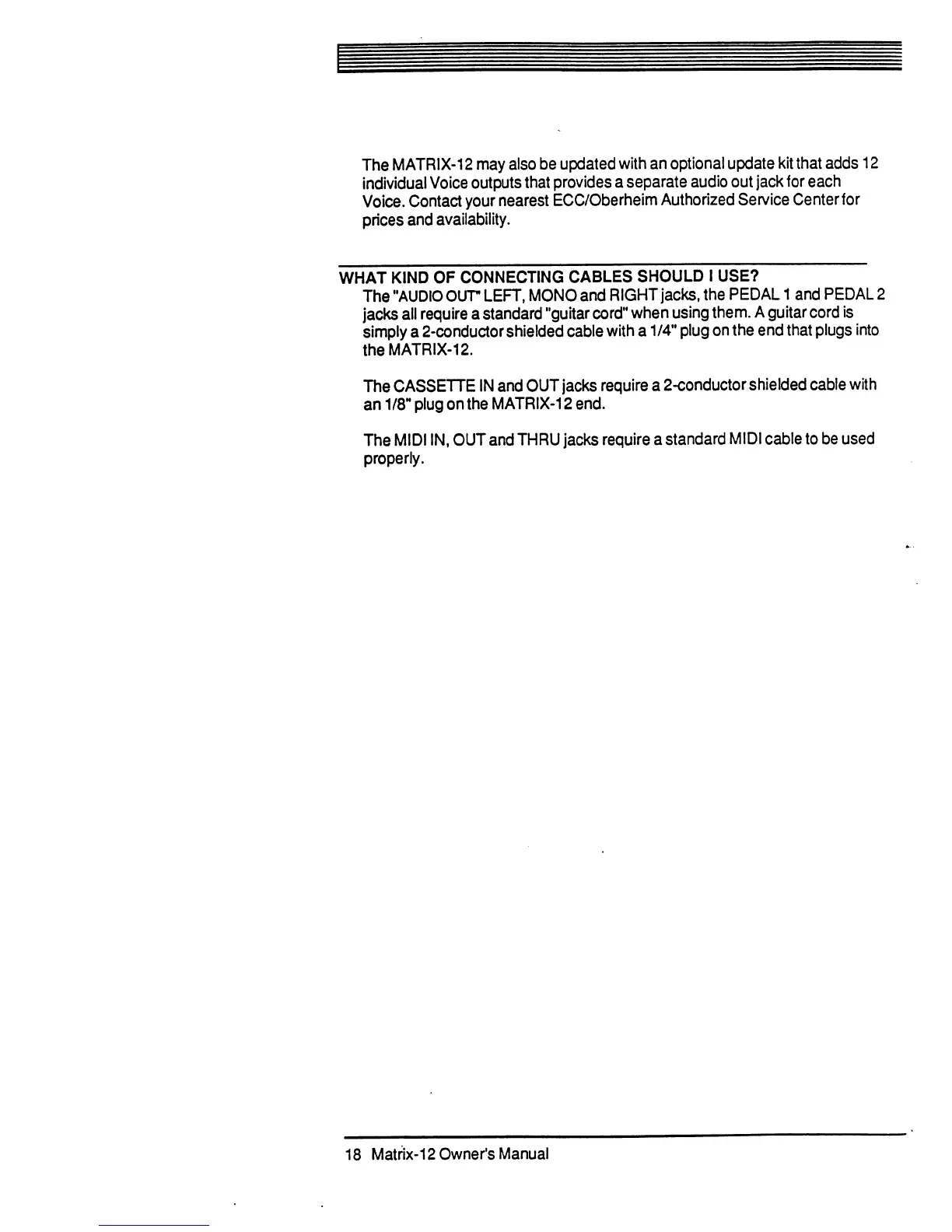

The M ATRIX-12 may also be updated with an optional update kit that adds 12
individual Voice outputs that provides a separate audio out jack for each
Voice. Contact your nearest ECC/Oberheim Authorized Service Center for
prices and availability.
WHAT KIND OF CONNECTING CABLES SHOULD I USE?
The "AUDIO OUT" LEFT, MONO and RIGHT jacks, the PEDAL 1 and PEDAL 2
jacks all require a standard "guitar cord" when using them. A guitar cord is
simply a 2-conductor shielded cable with a 1/4" plug on the end that plugs into
theMATRIX-12.
The CASSETTE IN and OUT jacks require a 2-conductor shielded cable with
an 1/8" plug on the M ATRIX-12 end.
The MIDI IN, OUT and THRU jacks require a standard MIDI cable to be used
properly.
18 Matrix-12 Owner's Manual
