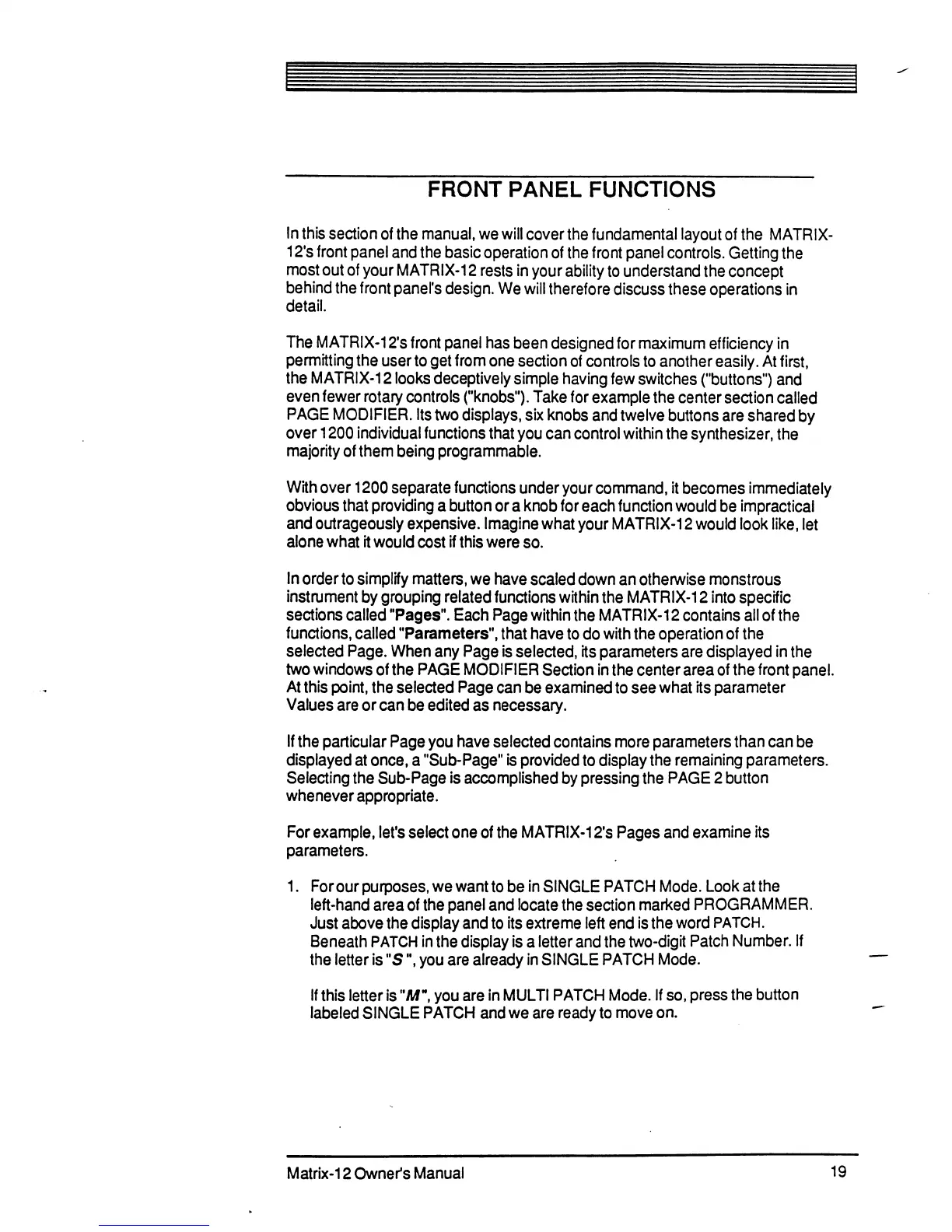

FRONT
PANEL
FUNCTIONS
In
this
section
of
the
manual,
we
will
cover
the
fundamental
layout
of
the
MATRIX-
12's
front
panel
and
the
basic
operation
of
the
front
panel
controls.
Getting
the
most
out
of
your
MATRIX-12
rests
in
your
ability
to
understand
the
concept
behind
the
front
panel's
design.
We
will
therefore
discuss
these
operations
in
detail.
The
MATRIX-12's
front
panel
has
been
designed
for
maximum
efficiency
in
permitting
the
user
to
get
from
one
section
of
controls
to
another
easily.
At
first,
the
MATRIX-12
looks
deceptively
simple having
few
switches
("buttons")
and
even
fewer
rotary
controls
("knobs").
Take
for
example
the
center
section
called
PAGE
MODIFIER.
Its
two
displays,
six
knobs
and
twelve
buttons
are
shared
by
over
1200
individual
functions
that
you
can
control
within
the
synthesizer,
the
majority
of
them
being
programmable.
With
over
1200
separate
functions
under
your
command,
it
becomes
immediately
obvious
that
providing
a
button or
a
knob
for
each
function
would
be
impractical
and
outrageously
expensive.
Imagine
what
your
MATRIX-12
would
look
like,
let
alone
what
it
would
cost
if
this
were
so.
In
order
to
simplify
matters,
we
have
scaled
down
an
otherwise
monstrous
instrument
by
grouping
related
functions
within
the
MATRIX-12
into
specific
sections
called
"Pages'1.
Each
Page
within
the
MATRIX-12
contains
all
of
the
functions,
called
"Parameters",
that
have
to
do
with
the
operation
of
the
selected
Page.
When
any
Page
is
selected,
its
parameters
are
displayed
in
the
two
windows
of
the
PAGE
MODIFIER
Section
in
the
center
area
of
the
front
panel.
At
this
point,
the
selected
Page
can
be
examined
to
see
what
its
parameter
Values
are
or
can
be
edited
as
necessary.
If
the
particular
Page
you
have
selected
contains
more
parameters
than
can
be
displayed
at
once,
a
"Sub-Page"
is
provided
to
display
the
remaining
parameters.
Selecting
the
Sub-Page
is
accomplished
by
pressing
the
PAGE
2
button
whenever
appropriate.
For
example,
let's
select
one
of
the
MATRIX-12's
Pages
and
examine
its
parameters.
1.
For
our
purposes,
we
want
to
be
in
SINGLE
PATCH
Mode.
Look
at
the
left-hand
area
of
the
panel
and
locate
the
section
marked
PROGRAMMER.
Just
above
the
display
and
to
its
extreme
left
end
is
the
word
PATCH.
Beneath
PATCH
in
the
display
is
a
letter
and
the
two-digit
Patch
Number.
If
the
letter
is
"Slf,
you
are
already
in
SINGLE
PATCH
Mode.
If
this
letter
is
"AT,
you
are
in
MULTI
PATCH
Mode.
If
so,
press
the
button
labeled
SINGLE
PATCH
and
we
are
ready
to
move
on.
Matrix-12
Owner's
Manual
19
