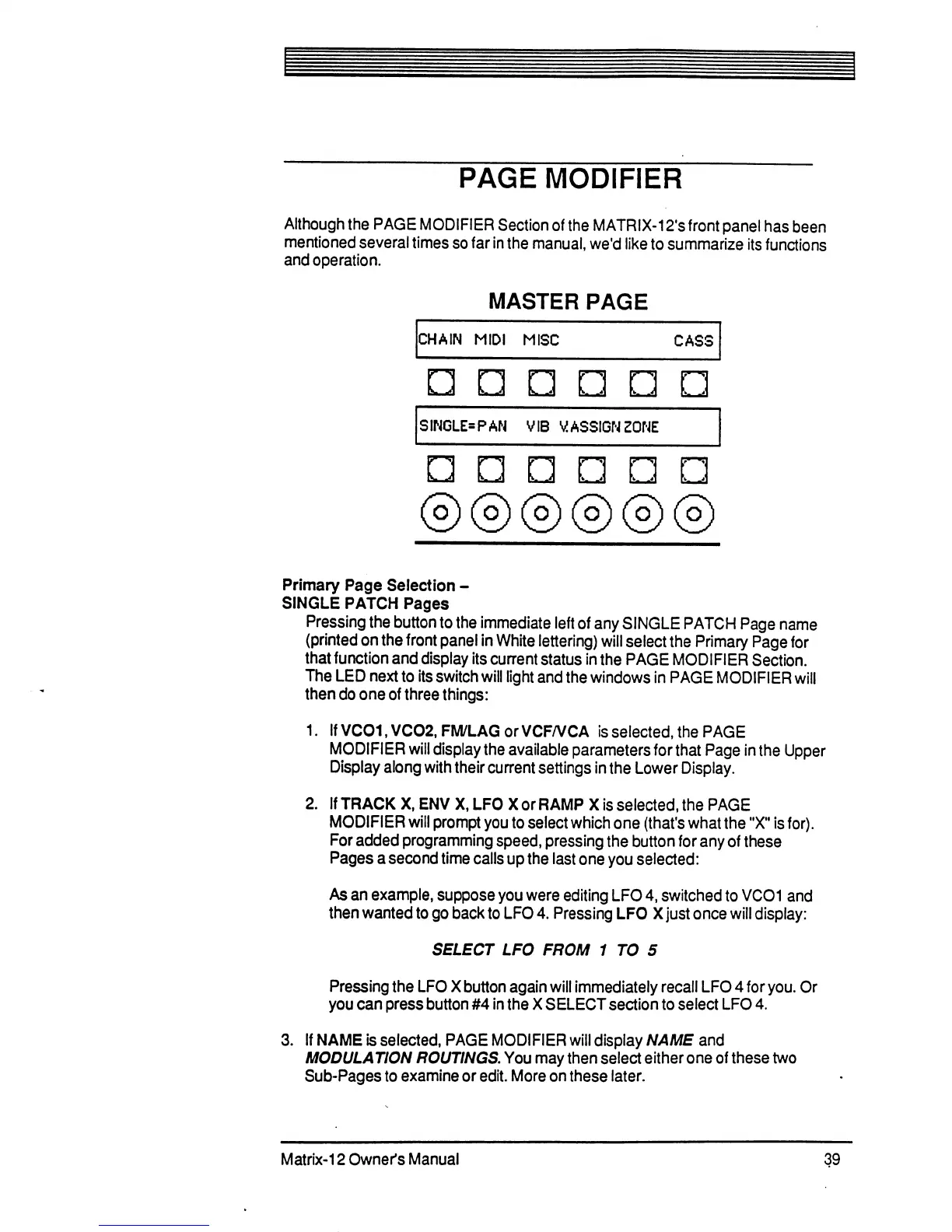

PAGE MODIFIER
Although the PAGE MODIFIER Section of the MATRIX-12's front panel has been
mentioned several times so far in the manual, we'd like to summarize its functions
and operation.
MASTER PAGE
CHAIN MIDI MISC
CASS
SINGLE=PAN VIB V ASSIGN ZONE
Primary Page Selection -
SINGLE PATCH Pages
Pressing the button to the immediate left of any SINGLE PATCH Page name
(printed on the front panel in White lettering) will select the Primary Page for
that function and display its current status in the PAGE MODIFIER Section.
The LED next to its switch will light and the windows in PAGE MODIFIER will
then do one of three things:
1. lfVCO1,VCO2,FM/LAGorVCF/VCA is selected, the PAGE
MODIFIER will display the available parameters for that Page in the Upper
Display along with their current settings in the Lower Display.
2. If TRACK X, ENV X, LFO X or RAMP X is selected, the PAGE
MODIFIER will prompt you to select which one (that's what the T is for).
For added programming speed, pressing the button for any of these
Pages a second time calls up the last one you selected:
As an example, suppose you were editing LFO 4, switched to VCO1 and
then wanted to go back to LFO 4. Pressing LFO X just once will display:
SELECT LFO FROM 1 TO 5
Pressing the LFO X button again will immediately recall LFO 4 for you. Or
you can press button #4 in the X SELECT section to select LFO 4.
3. If NAME is selected, PAGE MODIFIER will display NAME and
MODULATION ROUTINGS. You may then select either one of these two
Sub-Pages to examine or edit. More on these later.
Matrix-12 Owner's Manual
39
