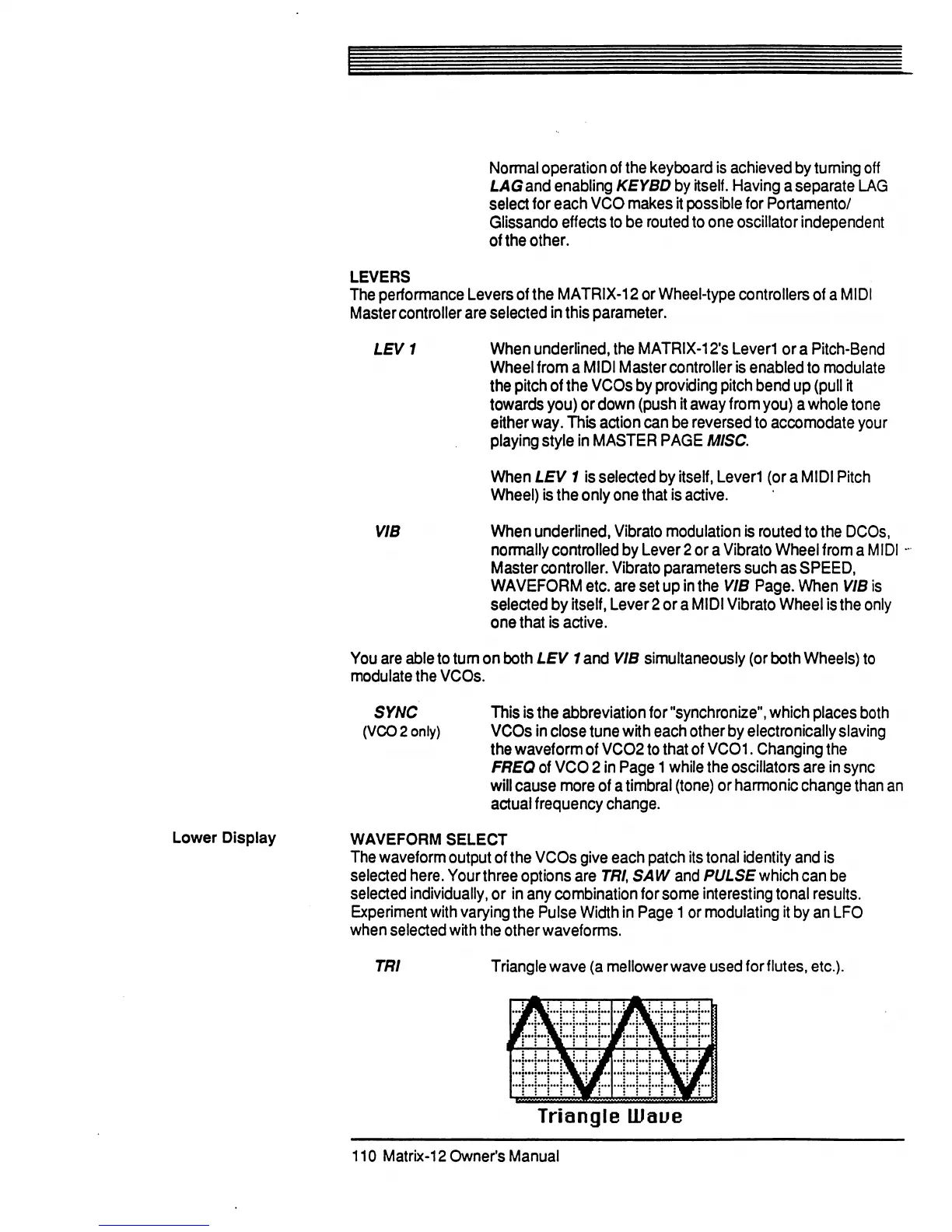

Lower
Display
Normal
operation
of
the
keyboard
is
achieved
by
turning
off
LAG
and
enabling
KEYED
by
itself.
Having
a
separate
LAG
select
for
each
VCO
makes
it
possible
for
Portamento/
Glissando
effects
to
be
routed
to
one
oscillator
independent
of
the
other.
LEVERS
The
performance
Levers
of
the
MATRIX-12
or
Wheel-type
controllers
of
a
MIDI
Master
controller
are
selected
in
this
parameter.
LEV
1
When
underlined,
the
MATRIX-12's
Lever!
or
a
Pitch-Bend
Wheel
from a
MIDI
Master
controller
is
enabled
to
modulate
the
pitch
of
the
VCOs
by
providing
pitch
bend
up
(pull
it
towards
you)
or
down
(push
it
away
from
you)
a
whole
tone
either
way.
This
action
can
be
reversed
to
accomodate
your
playing
style
in
MASTER
PAGE
MISC.
When
LEV
1
is
selected
by
itself,
Leverl
(or
a
MIDI
Pitch
Wheel)
is
the
only
one
that
is
active.
VIB
When
underlined,
Vibrato
modulation
is
routed
to
the
DCOs,
normally
controlled
by
Lever
2
or
a
Vibrato
Wheel
from
a
MIDI
-
Master
controller.
Vibrato
parameters
such
as
SPEED,
WAVEFORM
etc.
are
set
up
in
the
VIB
Page.
When
VIB
is
selected
by
itself,
Lever
2
or
a
MIDI
Vibrato
Wheel
is
the
only
one
that
is
active.
You
are
able
to
turn
on
both
LEV
1
and
VIB
simultaneously
(or
both
Wheels)
to
modulate
the
VCOs.
SYNC
This
is
the
abbreviation
for
"synchronize",
which
places
both
(VCO
2
only)
VCOs
in
close
tune
with
each
other
by
electronically
slaving
the
waveform
of
VCO2
to
that
of
VCO1.
Changing
the
FREQ
of
VCO
2
in
Page
1
while
the
oscillators
are
in
sync
will
cause
more
of
a
timbral
(tone)
or
harmonic
change
than
an
actual
frequency
change.
WAVEFORM
SELECT
The
waveform
output
of
the
VCOs
give
each
patch
its
tonal
identity
and
is
selected
here.
Yourthree
options
are
TRI,
SAW
and
PULSE
which
can
be
selected
individually,
or
in
any
combination
for
some
interesting
tonal
results.
Experiment
with
varying
the
Pulse
Width
in
Page
1
or
modulating
it
by
an
LFO
when
selected
with
the
other
waveforms.
TRI
Triangle
wave
(a
mellowerwave
used
forflutes,
etc.).
Triangle
UJaue
