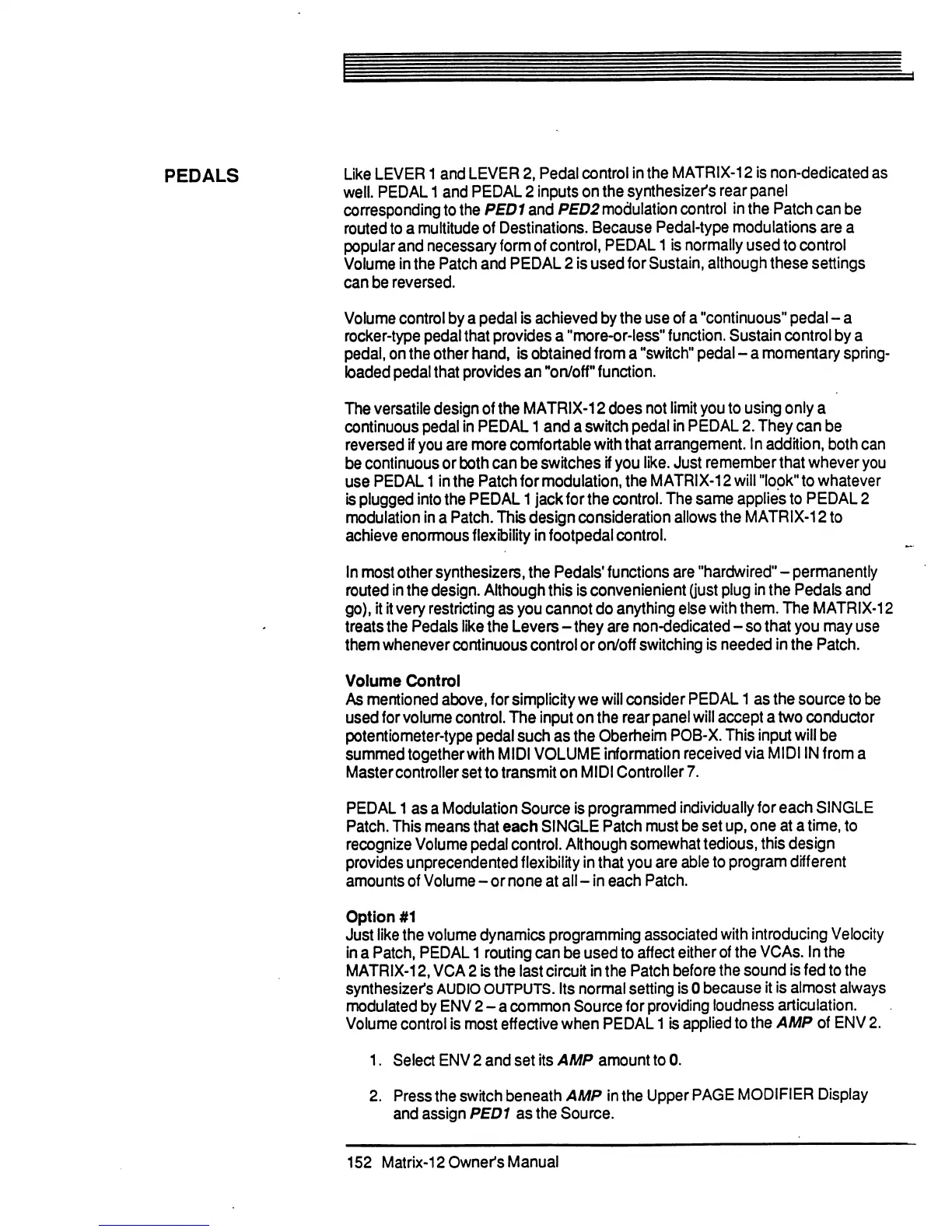

PEDALS
Like
LEVER
1
and
LEVER
2,
Pedal
control
in
the
MATRIX-12
is
non-dedicated
as
well.
PEDAL
1
and
PEDAL
2
inputs
on
the
synthesizer's
rear
panel
corresponding
to
the
PED1
and
PED2
modulation
control
in
the
Patch
can
be
routed
to
a
multitude
of
Destinations.
Because
Pedal-type
modulations
are
a
popular
and
necessary
form
of
control,
PEDAL
1
is
normally
used
to
control
Volume
in
the
Patch
and
PEDAL
2
is
used
for
Sustain,
although
these
settings
can
be
reversed.
Volume
control
by
a
pedal
is
achieved
by
the
use
of
a
"continuous"
pedal
-
a
rocker-type
pedal
that
provides
a
"more-or-less"
function.
Sustain
control
by
a
pedal,
on
the
other
hand,
is
obtained
from
a
"switch"
pedal
-
a
momentary
spring-
loaded
pedal
that
provides
an
Mon/off
function.
The
versatile
design
of
the
MATRIX-12
does
not
limit
you
to
using
only
a
continuous
pedal
in
PEDAL
1
and
a
switch
pedal
in
PEDAL
2.
They
can
be
reversed
if
you
are
more
comfortable
with
that
arrangement.
In
addition,
both
can
be
continuous
or
both
can
be
switches
if
you
like.
Just
remember
that
whever
you
use
PEDAL
1
in
the
Patch
for
modulation,
the
MATRIX-12
will
"look"
to
whatever
is
plugged
into
the
PEDAL
1
jack
for
the
control.
The
same
applies
to
PEDAL
2
modulation
in
a
Patch.
This
design
consideration
allows
the
MATRIX-12
to
achieve
enormous
flexibility
in
footpedal
control.
In
most
other
synthesizers,
the
Pedals1
functions
are
"hardwired"
-
permanently
routed
in
the
design.
Although
this
is
convenienient
Gust
plug
in
the
Pedals
and
go),
it
it
very
restricting
as
you
cannot
do
anything
else with
them.
The
MATRIX-12
treats
the
Pedals
like
the
Levers
-
they
are
non-dedicated
-
so
that
you
may
use
them
whenever
continuous
control
or
on/off
switching
is
needed
in
the
Patch.
Volume
Control
As
mentioned
above,
for
simplicity
we
will
consider
PEDAL
1
as
the
source
to
be
used
for
volume
control.
The
input
on
the
rear
panel
will
accept
a
two
conductor
potentiometer-type
pedal
such
as
the
Oberheim POB-X.
This
input
will
be
summed
together
with
MIDI
VOLUME
information
received
via
MIDI
IN
from
a
Master
controller
set
to
transmit
on
MIDI
Controller
7.
PEDAL
1
as
a Modulation
Source
is
programmed
individually
for
each
SINGLE
Patch.
This
means
that
each
SINGLE
Patch
must
be
set up,
one
at
a
time,
to
recognize
Volume
pedal
control.
Although
somewhat
tedious,
this
design
provides
unprecendented
flexibility
in
that
you
are
able
to
program
different
amounts
of
Volume
-
or
none
at
all
-
in
each
Patch.
Option
#1
Just
like
the
volume
dynamics
programming
associated
with
introducing
Velocity
in
a
Patch,
PEDAL
1
routing
can
be
used
to
affect
either
of
the
VCAs.
In
the
MATRIX-12,
VCA
2
is
the
last
circuit
in
the
Patch
before
the
sound
is
fed
to
the
synthesizer's
AUDIO
OUTPUTS.
Its
normal
setting
is
0
because
it
is
almost
always
modulated
by
ENV
2
-
a
common
Source
for
providing
loudness
articulation.
Volume
control
is
most
effective
when
PEDAL
1
is
applied
to
the
AMP
of
ENV
2.
1.
Select
ENV
2
and
set
its
AMP
amount
to
0.
2.
Press
the
switch
beneath
AMP
in
the
Upper
PAGE
MODIFIER
Display
and
assign
PED1
as
the
Source.
152
Matrix-12
Owner's
Manual
