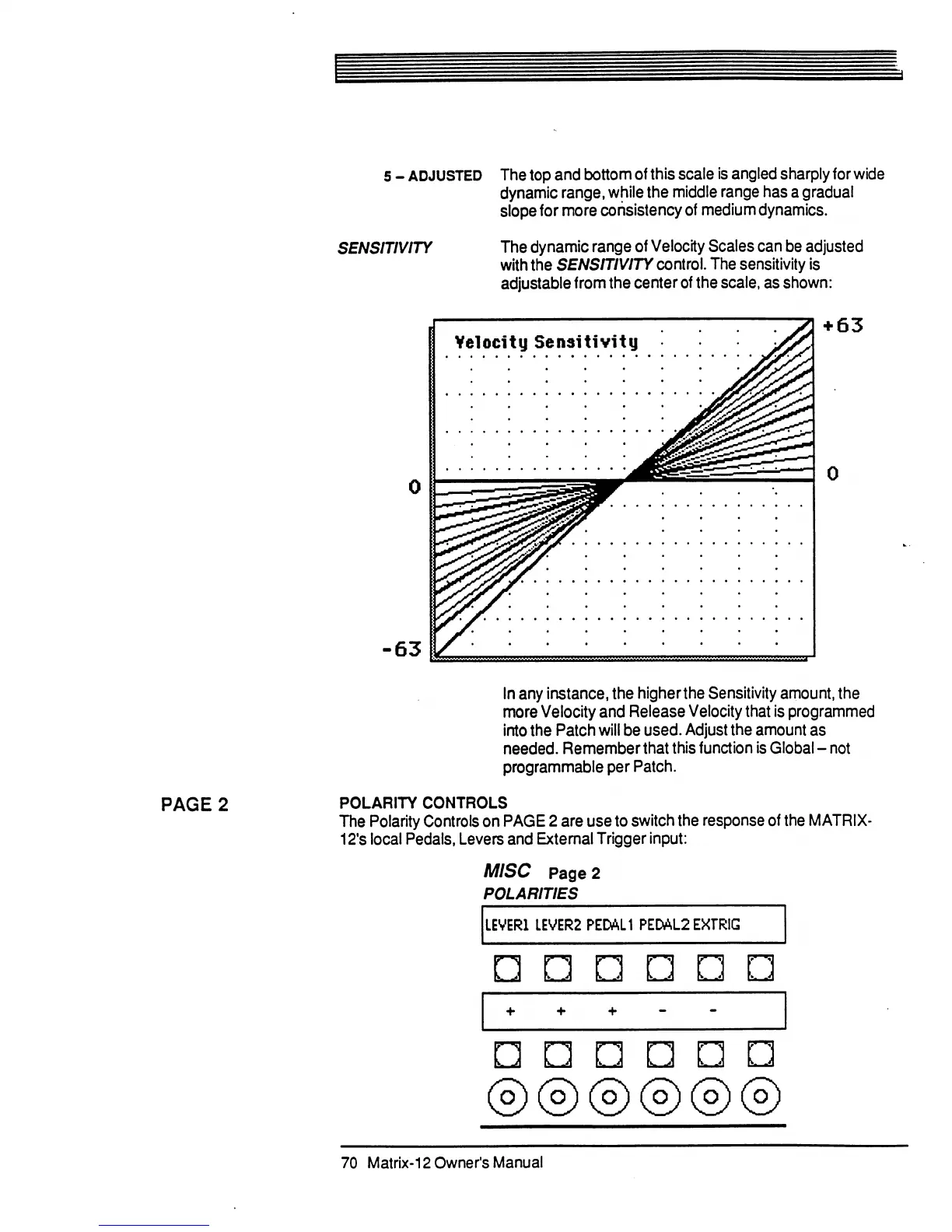

Oberheim Matrix-12 - Polarity Controls; Sensitivity

5 - ADJUSTED The top and bottom of this scale is angled sharply for wide
dynamic range, while the middle range has a gradual
slope for more consistency of medium dynamics.
SENSITIVITY The dynamic range of Velocity Scales can be adjusted
with the SENSITIVITY control. The sensitivity is
adjustable from the center of the scale, as shown:
+ 63
Velocity Sensitivity
0
PAGE 2
-63
In any instance, the higherthe Sensitivity amount, the
more Velocity and Release Velocity that is programmed
into the Patch will be used. Adjust the amount as
needed. Remember that this function is Global - not
programmable per Patch.
POLARITY CONTROLS
The Polarity Controls on PAGE 2 are use to switch the response of the MATRIX-
12's local Pedals, Levers and External Trigger input:
MISC Page 2
POLARITIES
□
70 Matrix-12 Owner's Manual
