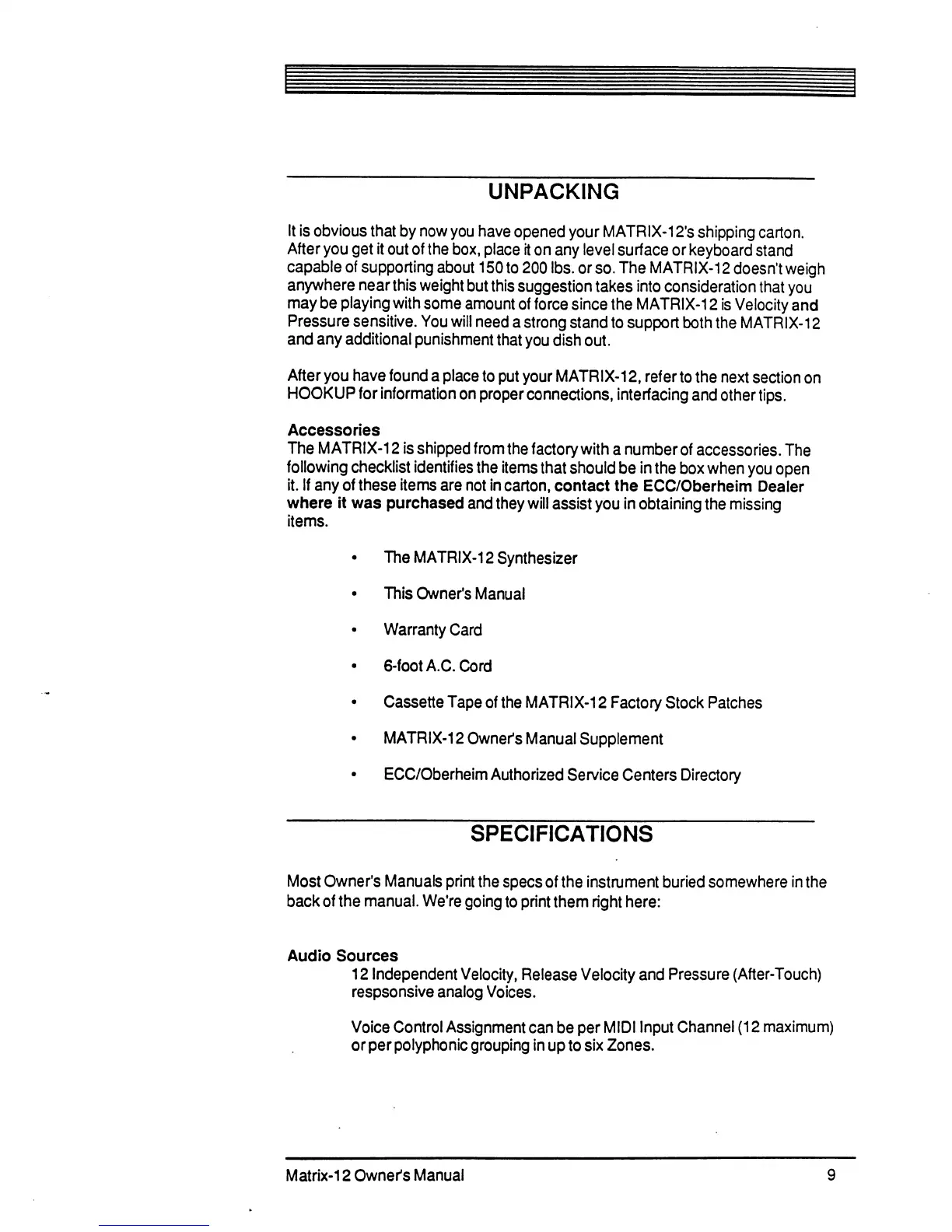

UNPACKING
It is obvious that by now you have opened your MATRIX-12's shipping carton.
After you get it out of the box, place it on any level surface or keyboard stand
capable of supporting about 150 to 200 lbs. or so. The MATRIX-12 doesn't weigh
anywhere near this weight but this suggestion takes into consideration that you
may be playing with some amount of force since the MATRIX-12 is Velocity and
Pressure sensitive. You will need a strong stand to support both the MATRIX-12
and any additional punishment that you dish out.
After you have found a place to put your MATRIX-12, refer to the next section on
HOOKUP for information on proper connections, interfacing and other tips.
Accessories
The MATRIX-12 is shipped from the factory with a number of accessories. The
following checklist identifies the items that should be in the box when you open
it. If any of these items are not in carton, contact the ECC/Oberheim Dealer
where it was purchased and they will assist you in obtaining the missing
items.
The MATRIX-12 Synthesizer
This Owner's Manual
Warranty Card
6-foot A.C. Cord
Cassette Tape of the MATRIX-12 Factory Stock Patches
MATRIX-12 Owner's Manual Supplement
ECC/Oberheim Authorized Service Centers Directory
SPECIFICATIONS
Most Owner's Manuals print the specs of the instrument buried somewhere in the
back of the manual. We're going to print them right here:
Audio Sources
12 Independent Velocity, Release Velocity and Pressure (After-Touch)
respsonsive analog Voices.
Voice Control Assignment can be per MIDI Input Channel (12 maximum)
or per polyphonic grouping in up to six Zones.
