Oberheim Matrix-12 User Manual

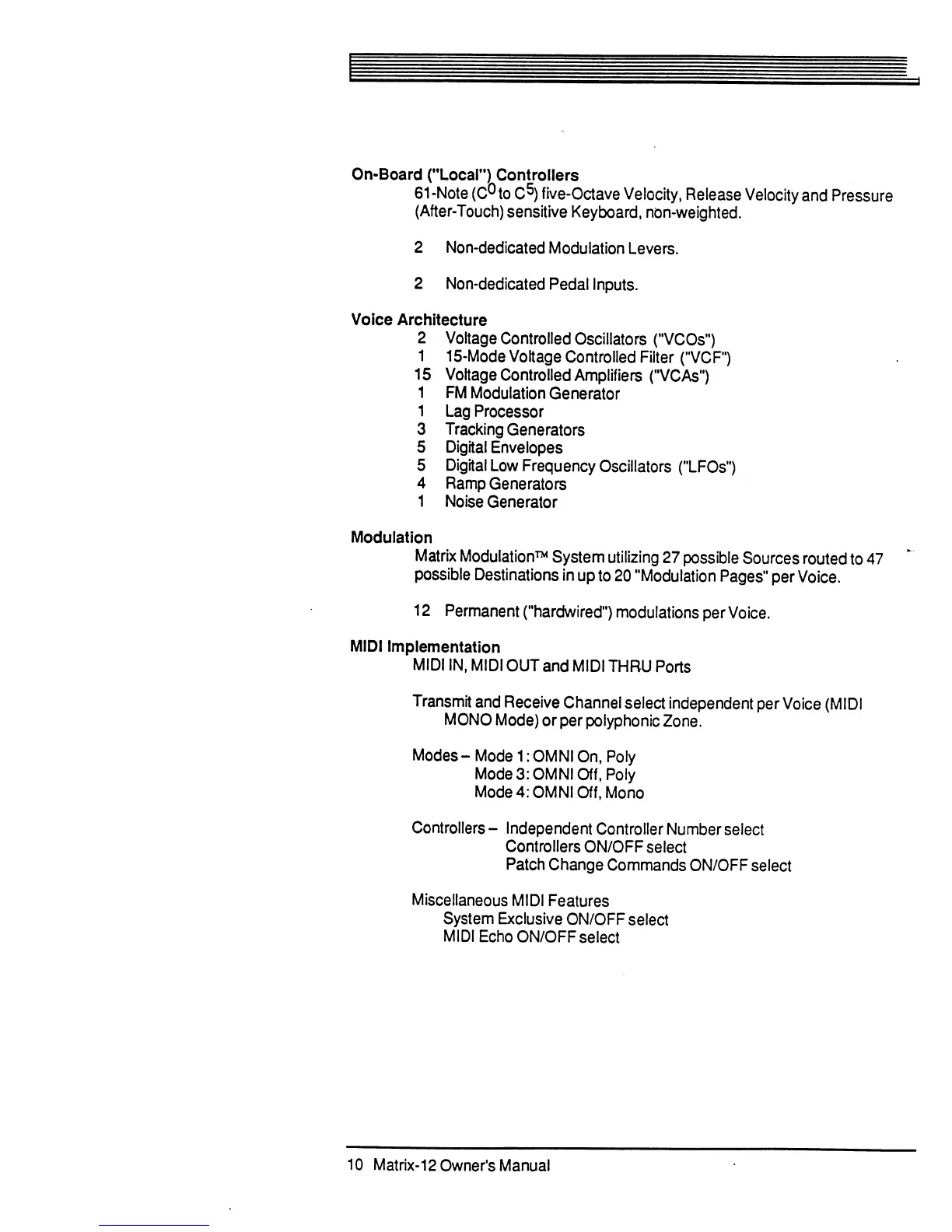

On-Board ("Local") Controllers
61-Note (C°to C5) five-Octave Velocity, Release Velocity and Pressure
(After-Touch) sensitive Keyboard, non-weighted.
2 Non-dedicated Modulation Levers.
2 Non-dedicated Pedal Inputs.
Voice Architecture
2 Voltage Controlled Oscillators ("VCOs")
1 15-Mode Voltage Controlled Filter ("VCF")
15 Voltage Controlled Amplifiers ("VCAs")
1 FM Modulation Generator
1 Lag Processor
3 Tracking Generators
5 Digital Envelopes
5 Digital Low Frequency Oscillators ("LFOs")
4 Ramp Generators
1 Noise Generator
Modulation
Matrix Modulation™ System utilizing 27 possible Sources routed to 47
possible Destinations in up to 20 "Modulation Pages" per Voice.
12 Permanent ("hardwired") modulations per Voice.
MIDI Implementation
MIDI IN, MIDI OUT and MIDI THRU Ports
Transmit and Receive Channel select independent per Voice (MIDI
MONO Mode) or per polyphonic Zone.
Modes - Mode 1: OMNI On, Poly
Mode 3: OMNI Off, Poly
Mode 4: OMNI Off, Mono
Controllers - Independent Controller Number select
Controllers ON/OFF select
Patch Change Commands ON/OFF select
Miscellaneous MIDI Features
System Exclusive ON/OFF select
MIDI Echo ON/OFF select
10 Matrix-12 Owner's Manual
