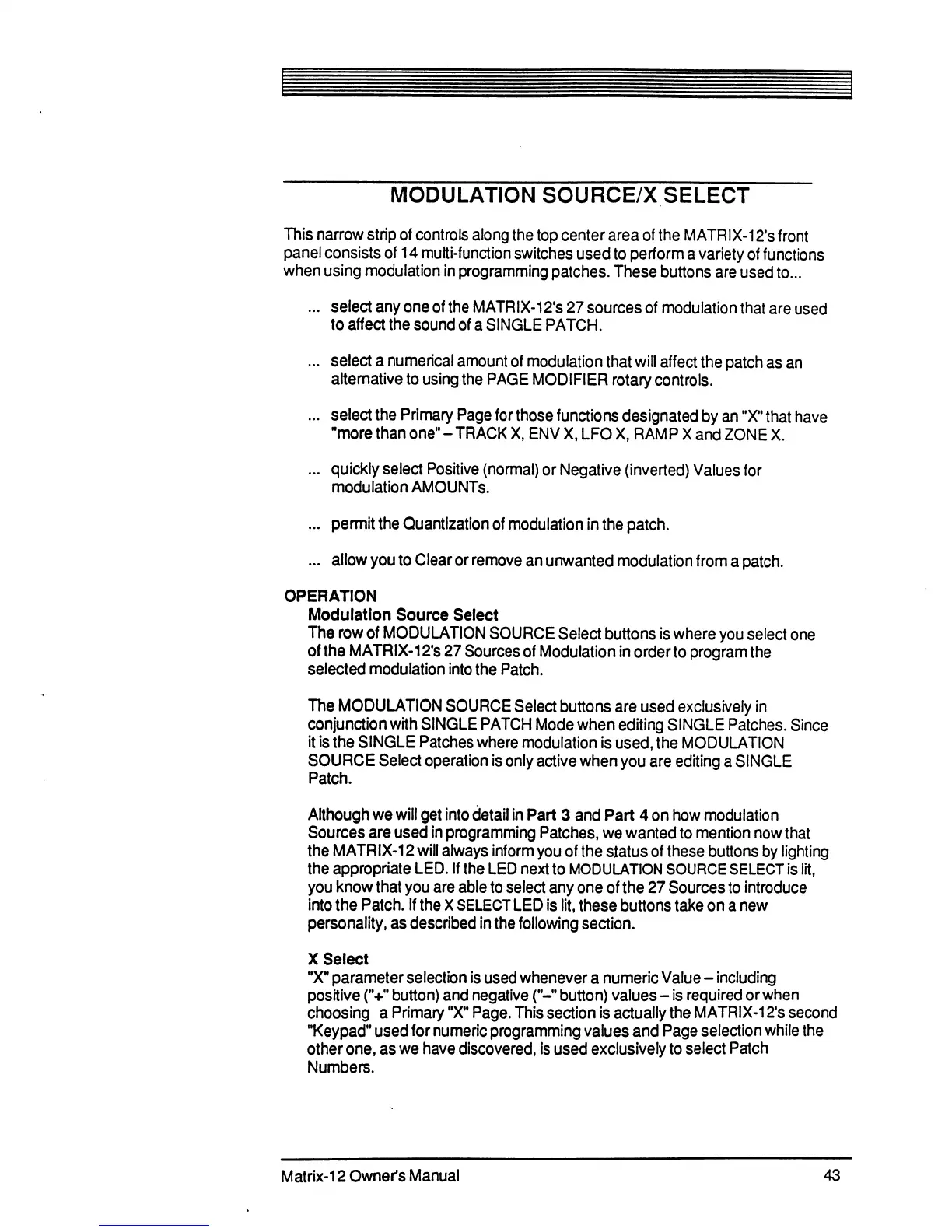

MODULATION
SOURCE/X
SELECT
This
narrow
strip
of
controls
along
the
top
center
area
of
the
MATRIX-12's
front
panel
consists
of
14
multi-function
switches
used
to
perform
a
variety
of
functions
when
using
modulation
in
programming
patches.
These
buttons
are
used
to...
...
select
any
one
of
the
MATRIX-12's
27
sources
of
modulation
that
are
used
to
affect
the
sound
of
a
SINGLE
PATCH.
...
select
a
numerical
amount
of
modulation
that
will
affect
the
patch
as an
alternative
to
using
the
PAGE
MODIFIER
rotary
controls.
...
select
the
Primary
Page
for
those
functions
designated
by
an
"X"
that
have
"more
than
one"-TRACK
X,
ENV
X,
LFO
X,
RAMP
X
and
ZONE
X.
...
quickly
select
Positive
(normal) or
Negative
(inverted)
Values
for
modulation
AMOUNTS.
...
permit
the
Quantization
of
modulation
in
the patch.
...
allow
you
to
Clear
or
remove
an
unwanted
modulation
from
a
patch.
OPERATION
Modulation
Source
Select
The
row
of
MODULATION
SOURCE
Select
buttons
is
where
you
select
one
of
the
MATRIX-12fs
27
Sources
of
Modulation
in
order
to
program
the
selected
modulation
into
the
Patch.
The
MODULATION
SOURCE
Select
buttons
are
used
exclusively
in
conjunction
with
SINGLE
PATCH
Mode
when
editing
SINGLE
Patches.
Since
it
is
the
SINGLE
Patches
where
modulation
is
used,
the
MODULATION
SOURCE
Select
operation
is
only
active
when
you
are
editing
a
SINGLE
Patch.
Although
we
will
get
into
detail
in
Part
3
and
Part
4
on
how
modulation
Sources
are
used
in
programming
Patches,
we
wanted
to
mention
now
that
the
MATRIX-12
will
always
inform
you
of
the
status
of
these
buttons
by
lighting
the
appropriate
LED.
If
the
LED
next
to
MODULATION
SOURCE
SELECT
is
lit,
you
know
that
you
are
able
to
select
any
one
of
the
27
Sources
to
introduce
into
the
Patch.
If
the
X
SELECT
LED
is
lit,
these
buttons
take
on
a
new
personality,
as
described
in
the
following
section.
X
Select
"X"
parameter
selection
is
used
whenever
a
numeric
Value
-
including
positive
(V
button)
and
negative
("-"
button)
values
-
is
required
or
when
choosing
a
Primary
"Xlf
Page.
This
section
is
actually
the
MATRIX-12's
second
"Keypad"
used
for
numeric
programming
values
and
Page
selection
while
the
other
one,
as
we
have
discovered,
is
used
exclusively
to
select
Patch
Numbers.
Matrix-12
Owner's
Manual
43
