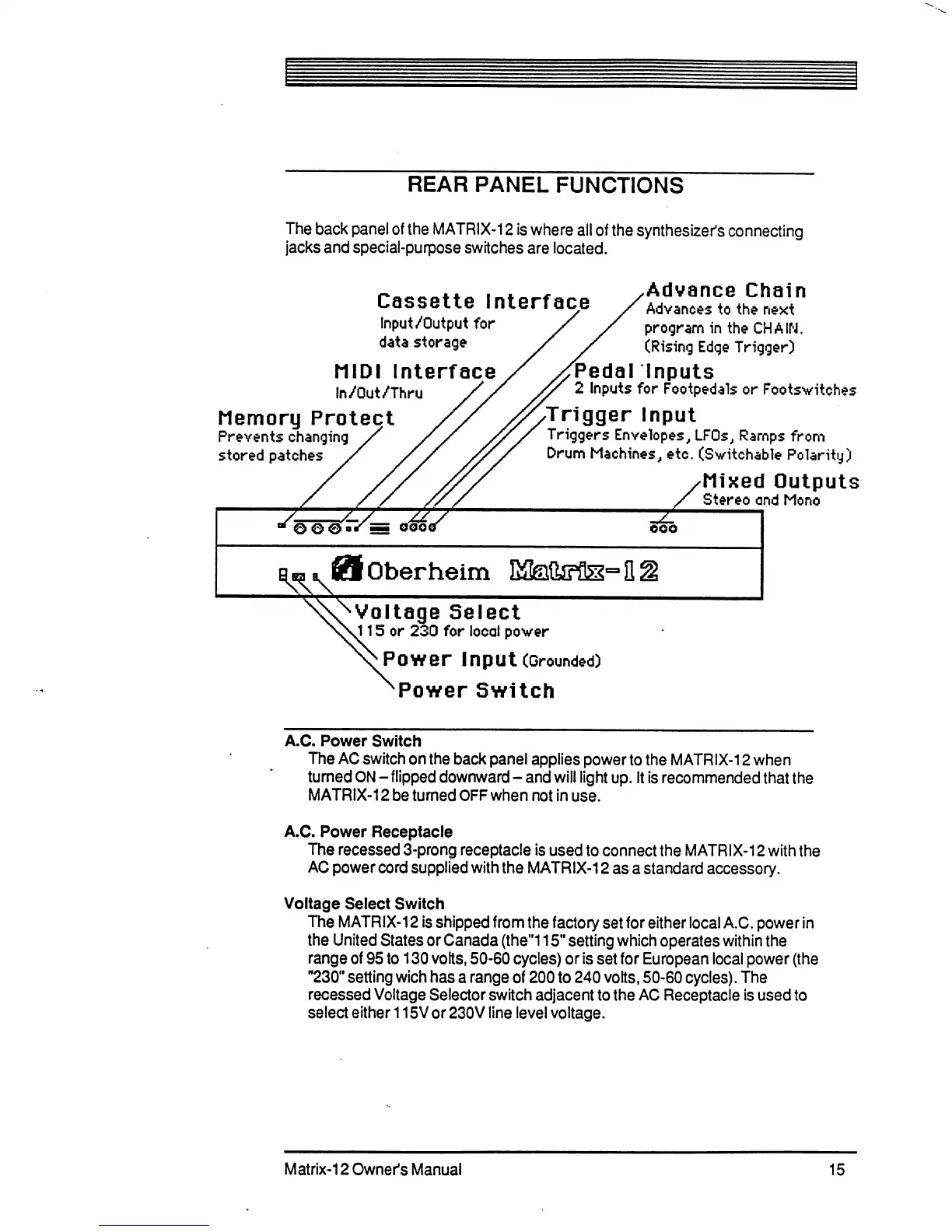

REAR
PANEL
FUNCTIONS
The
back
panel
of
the
MATRIX-12
is
where
all
of
the
synthesizer's
connecting
jacks
and
special-purpose
switches
are
located.
Cassette
Interface
Input/Output
for
data
storage
MIDI
Interface
In
/Out
/Thru
Memory
Protect
Prevents
changing
stored
patches
Advance
Chain
Advances
to
the
next
program
in
the
CHAW.
(Rising
Edge
Trigger)
Pedal
Inputs
2
Inputs
for
Footpedals
or
Footswitches
Trigger
Input
Triggers
Envelopes,
LFOs,
Ramps
from
Drum
Machines,
etc.
(Switchable
Polarity)
•Mixed
Outputs
X
Stereo
and
Mono
^Voltage
Select
115
or
230
for
local
power
Power
Input
(Grounded)
Power
Switch
A.C.
Power
Switch
The
AC
switch
on
the
back
panel
applies
power
to
the
MATRIX-12
when
turned
ON
-
flipped
downward
-
and
will
light
up.
It
is
recommended
that
the
MATRIX-12
be
turned
OFF
when
not
in
use.
A.C.
Power
Receptacle
The
recessed
3-prong
receptacle
is
used
to
connect
the
MATRIX-12
with the
AC
power
cord
supplied
with
the
MATRIX-12
as
a
standard
accessory.
Voltage
Select
Switch
The
MATRIX-12
is
shipped
from
the
factory
set
for
either
local
A.C.
power
in
the
United
States
or
Canada
(the"115"
setting
which
operates
within
the
range
of
95
to
130
volts,
50-60
cycles)
or
is
set
for
European
local
power
(the
"230"
setting
wich
has
a
range
of
200
to
240
volts,
50-60
cycles).
The
recessed
Voltage
Selector
switch
adjacent
to
the
AC
Receptacle
is
used
to
select
either
115V
or
230V
line
level
voltage.
Matrix-12
Owner's
Manual
15
