XZAC4074 Service Manual 1-5

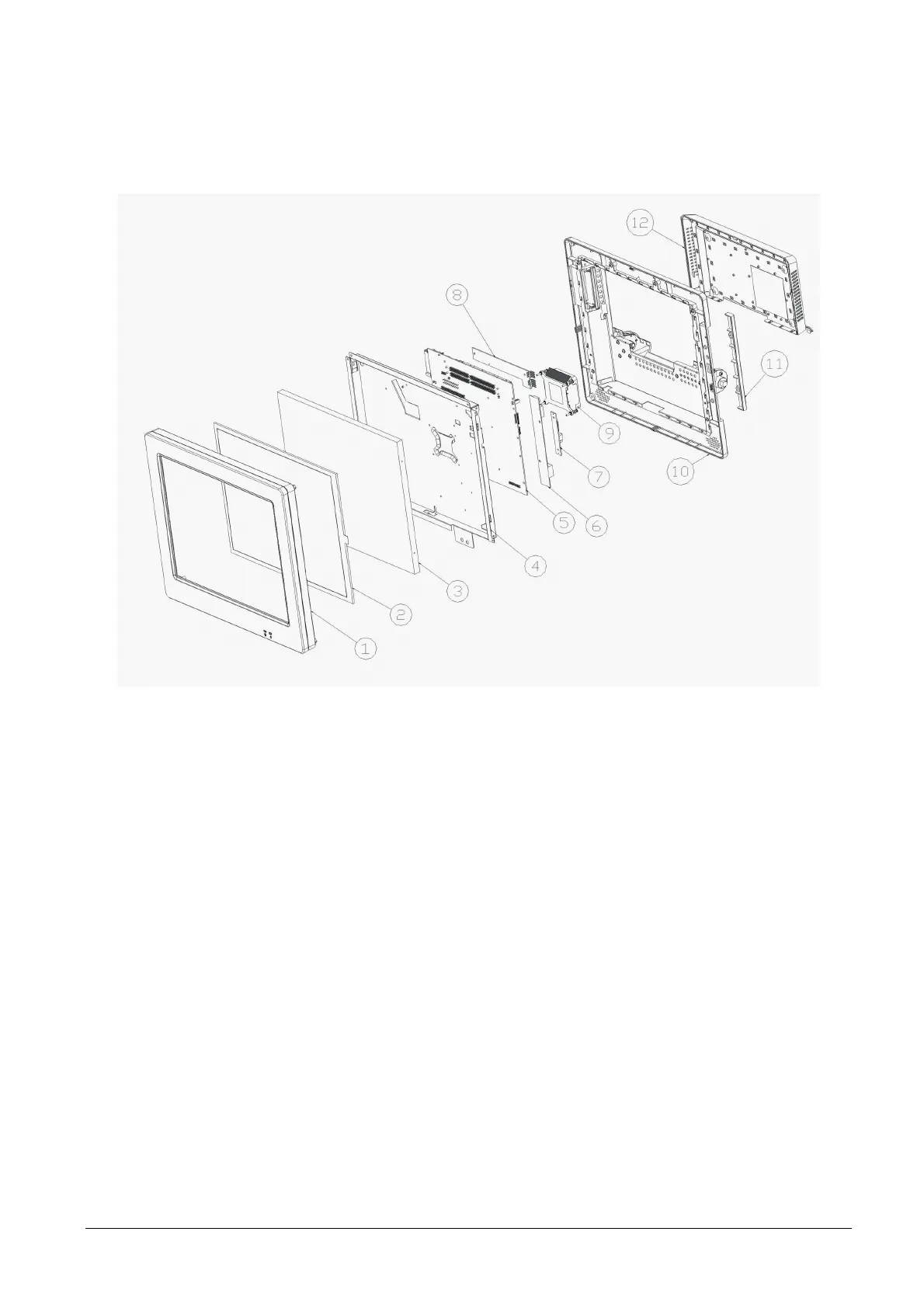

1.2.4 System – Full view
Figure 1-9
1. Front panel
2. Touch screen
3. LCD panel
4. LCD housing
5. Motherboard
6. Inverter board
7. Badge reader board
8. Touch screen board
9. Heat sink + fan module
10. Base module housing
11. Badge reader module cover
12. Rear cover
