3.13 REPLACEMENT OF THE INVERTER BOARD
To remove the Inverter board, proceed as follows:
• Remove the motherboard cover as described above.
• Disconnect connections A B and C.
• Back off screws D and remove the board.
B D D
C
A

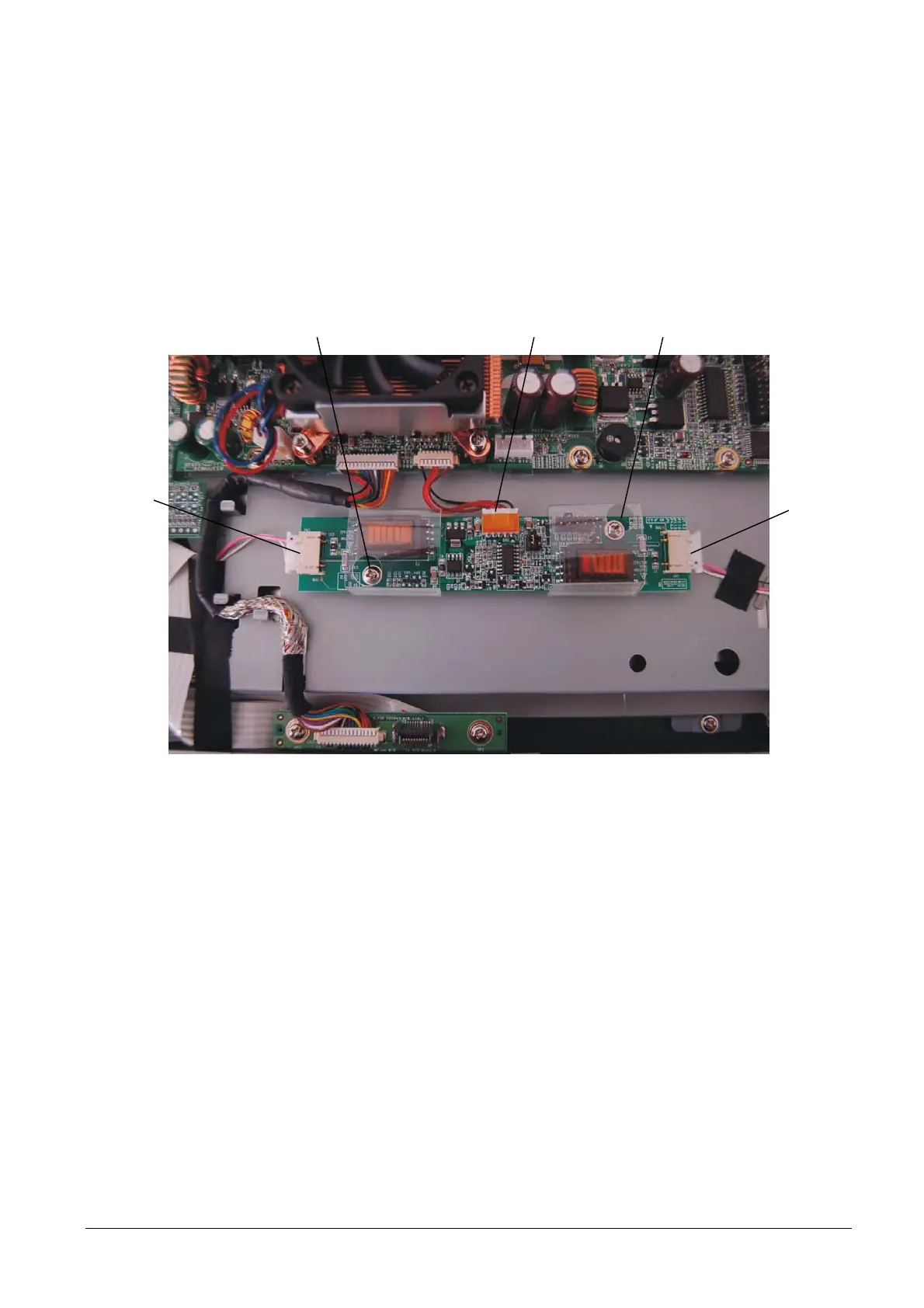

Figure 3-27
• For re-assembly, reverse the above operations.
XZAC4074 Service Manual 3-17
