Olivetti Explor 200XS - Block Diagram of Motherboard Connectors

XZAC4074 Service Manual 1-9

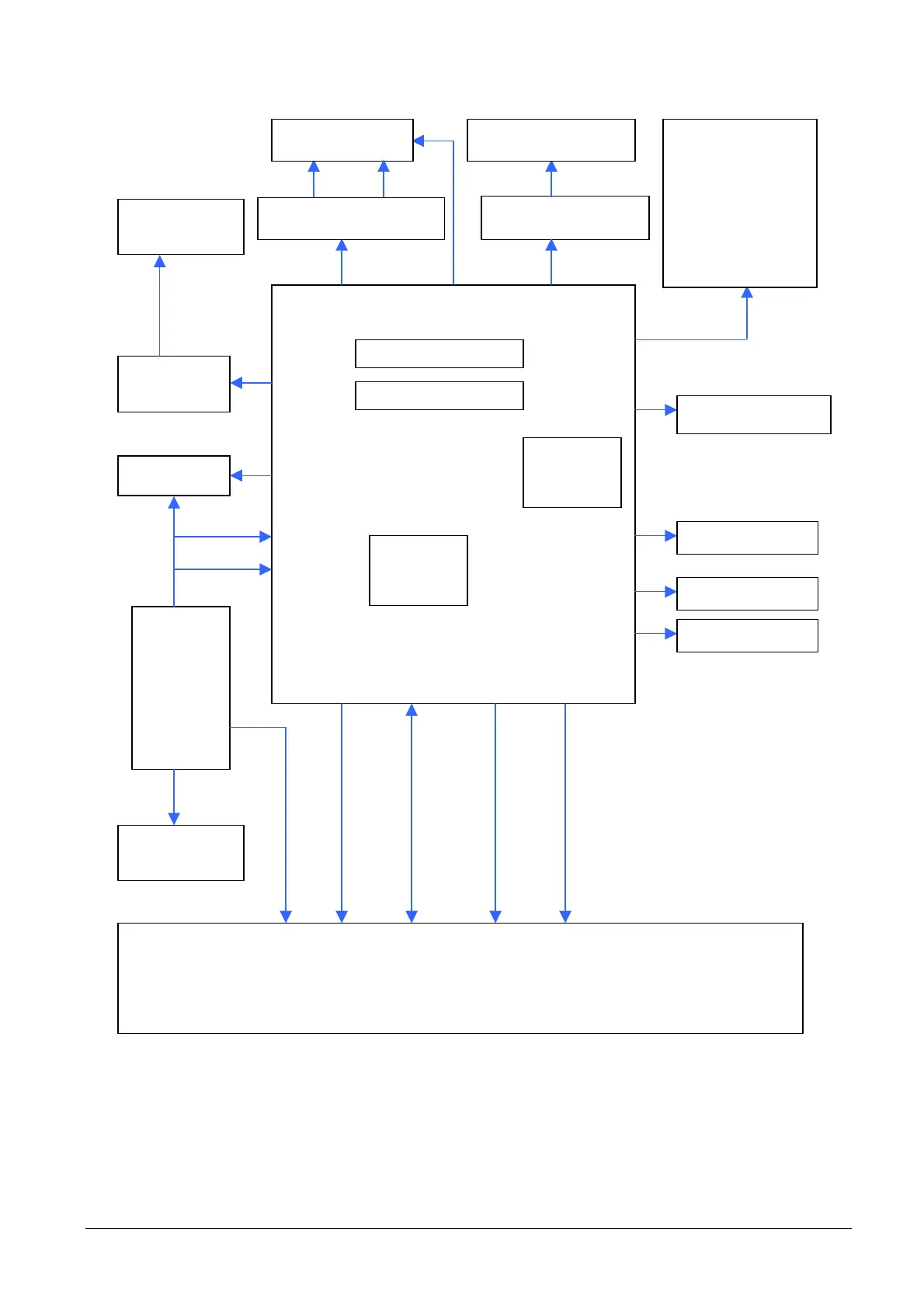

1.3.1.1 Block diagram of motherboard connectors
MOTHER
BOARD
INVERTER BOARD
BADGE
BOARD
HDD
BADGE
READER
CN6
CN31
CN12
CN9 JP2 IDE1
CN24
CN10
HDD LED
ON/OFF LED
FAN
CPU1
FAN
MINI PCI
COMPACT
FLASH
DIMM 2
DIMM 1
CN30
LOUDSPEAKERS
CN19
FRONT BOARD
PWR1
PWR2
POWER
SUPPLY
UNIT
IDE2
VIDEO
CN3
TOUCH SCREEN
BOARD
CN1
TOUCHSCREEN
I/O BOARD
COM1
COM2 COM3
COM4
USB1 USB2 LAN
CASH DRAWER
(EPSON
STANDARD)
LPT PS2 VGA
USB3 USB4
ON / OFF
FAN
