3.19.2 Removal of the LCD display
To remove the LCD display proceed as follows:
• Remove the LCD display and the touch screen as described above.
• Remove the screws A.
• Disconnect the connection B.
• Remove the LCD display.

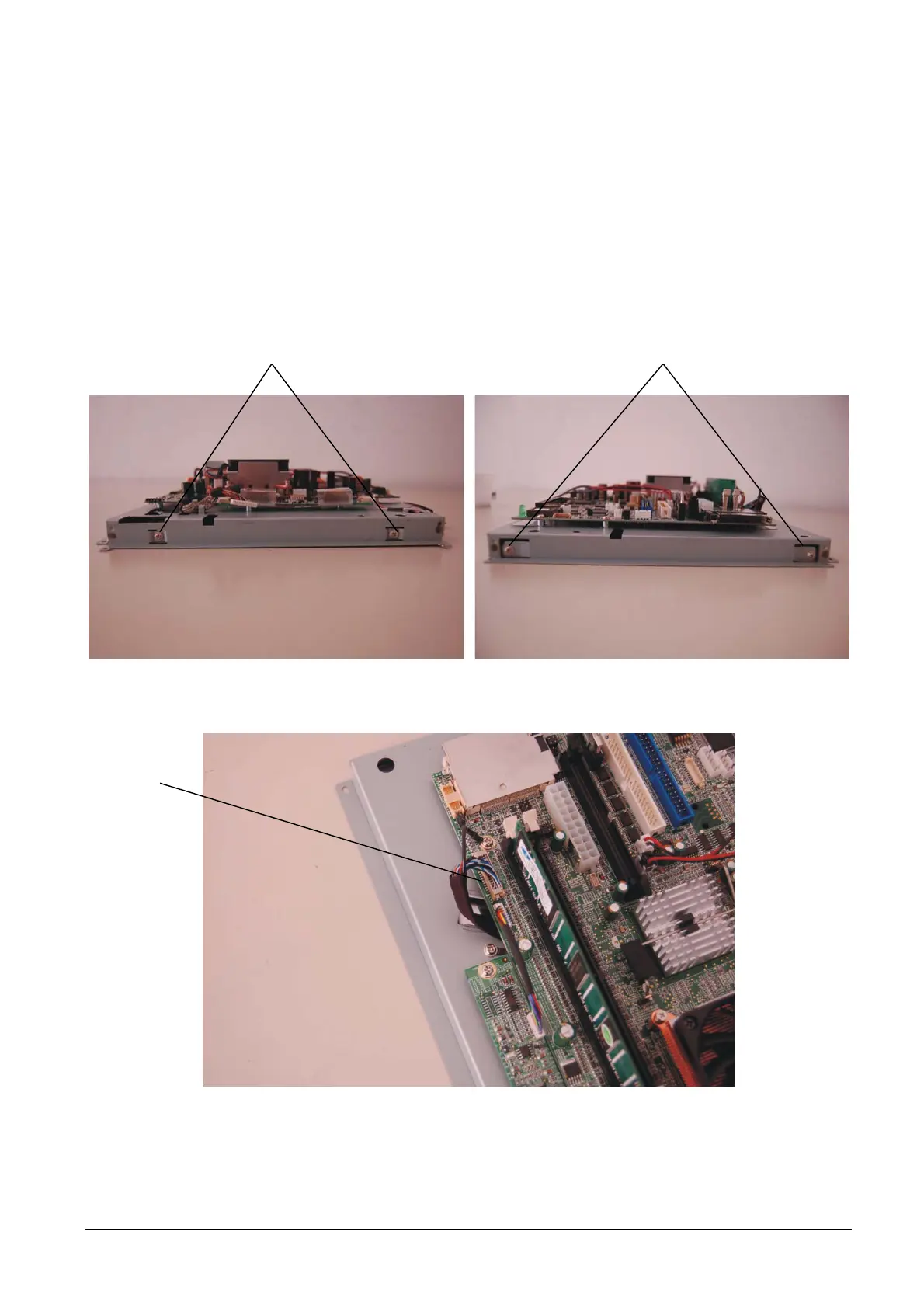

A A
Figure 3-42
B
Figure 3-43
• For re-assembly, reverse the above operations.
